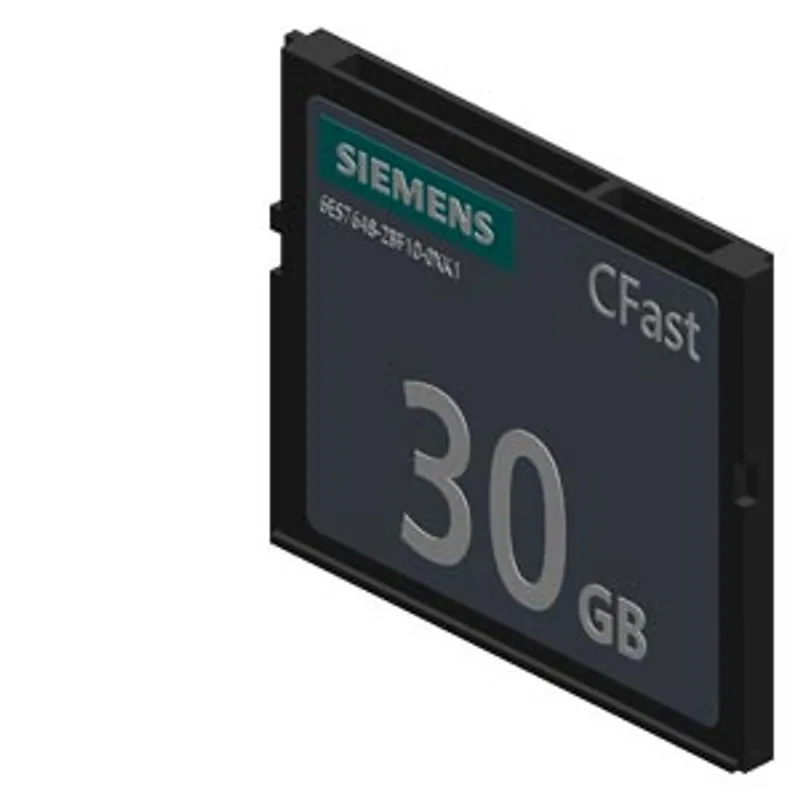

Siemens 6ES7648-2BF10-0XK1
SIMATIC CFast memory card, 30 GB, for IPCs and Open Controller with corresponding slot
- MPN
- 6ES7648-2BF10-0XK1
- Category
- Storage media
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7648-2BF10-0XK1?
SIMATIC CFast memory card, 30 GB, for IPCs and Open Controller with corresponding slot, scope of supply: 1 CFast 30 GB
Specifications
General information
| Product type designation | CFast memory card |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 3.3 V; ±5 % |
Power
| Active power input, typ. | 1.3 W; Inactive 0.4 W |
Storage
| Type of memory | CFast Type I |
| Design | Multi-level cell (MLC) |
| Memory size | 30 Gbyte; 1 year (data retention) |
| Speed class | Write speed: up to 45 MBps (UDMA6), read speed: up to 200 MBps (UDMA6) |
| Write cycles MLC flash | 8.8; Terabytes, industrial quality |
Standards, approvals, certificates
| CE mark | Yes |
| EAC (formerly Gost-R) | Yes |
| RoHS conformity | Yes |
| Use in hazardous areas — ATEX Zone 2 | Yes; Always comply with the operating instructions of the target device. |
| Use in hazardous areas — ATEX Zone 22 | Yes; Always comply with the operating instructions of the target device. |
| Use in hazardous areas — IECEx Zone 1 | No |
| Use in hazardous areas — IECEx Zone 11 | No |
| Use in hazardous areas — IECEx Zone 2 | Yes; Always comply with the operating instructions of the target device. |
| Use in hazardous areas — IECEx Zone 22 | Yes; Always comply with the operating instructions of the target device. |
| Use in hazardous areas — cULus Class I Zone 1 | Yes; Always comply with the operating instructions of the target device. |
| Use in hazardous areas — cULus Class I Zone 2, Division 2 | Yes; Always comply with the operating instructions of the target device. |
| Use in hazardous areas — cULus Class II Division 2 | Yes; Always comply with the operating instructions of the target device. |
| Use in hazardous areas — FM Class I Division 2 | Yes; Always comply with the operating instructions of the target device. |
| Use in hazardous areas — FM Class II Division 2 | Yes; Always comply with the operating instructions of the target device. |
| Marine approval — Germanischer Lloyd (GL) | Yes; Always comply with the operating instructions of the target device. |
| Marine approval — American Bureau of Shipping (ABS) | Yes; Always comply with the operating instructions of the target device. |
| Marine approval — Bureau Veritas (BV) | Yes; Always comply with the operating instructions of the target device. |
| Marine approval — Det Norske Veritas (DNV) | Yes; Always comply with the operating instructions of the target device. |
| Marine approval — Korean Register of Shipping (KRS) | Yes; Always comply with the operating instructions of the target device. |
| Marine approval — Lloyds Register of Shipping (LRS) | Yes; Always comply with the operating instructions of the target device. |
| Marine approval — Nippon Kaiji Kyokai (Class NK) | Yes; Always comply with the operating instructions of the target device. |
| Marine approval — Polski Rejestr Statkow (PRS) | Yes; Always comply with the operating instructions of the target device. |
| Marine approval — Chinese Classification Society (CCS) | Yes; Always comply with the operating instructions of the target device. |
Ambient conditions
| Suited for indoor use | Yes; Always comply with the operating instructions of the target device. |
| Suited for outdoor use | No |
| Ambient temperature during operation — min. | -40 °C; Any mounting angle |
| Ambient temperature during operation — max. | 85 °C; Any mounting angle |
| Ambient temperature during storage/transportation — min. | -50 °C |
| Ambient temperature during storage/transportation — max. | 100 °C |
| Relative humidity — Operation, max. | 85 % |
| Relative humidity — Condensation permissible | No |

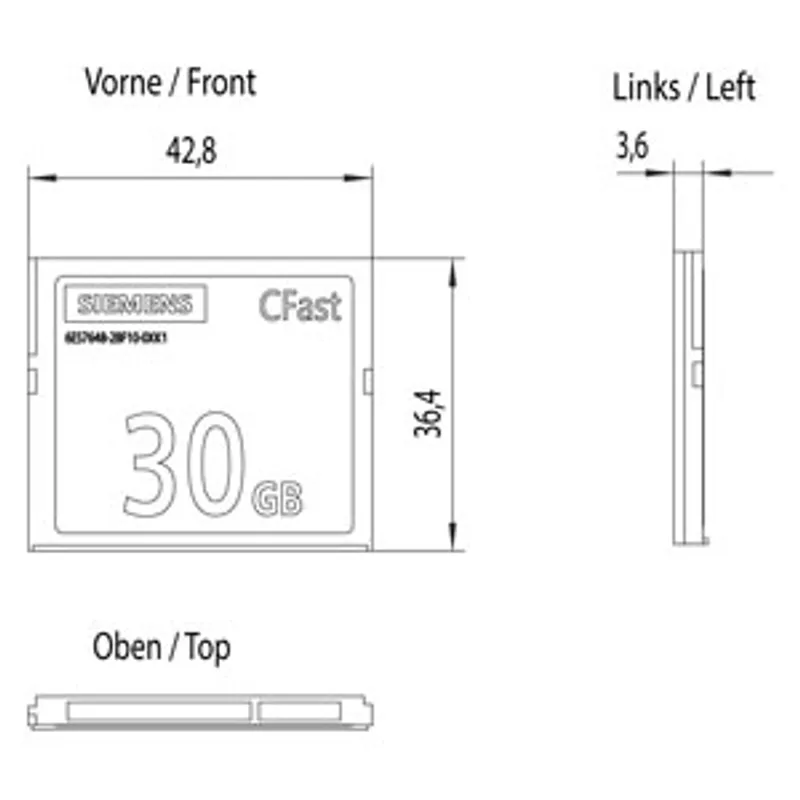

Dimensions
| Width | 42.8 mm |
| Height | 36.4 mm |
| Depth | 3.6 mm |
Weights
| Weight, approx. | 10 g |
Other
| Merchandise | No |
| Manufacturer name | SIEMENS AG |
| Manufacturer's address | Gleiwitzerstraße 555, 90475 Nuremberg, Germany |
| Target devices | For SIMATIC HMI devices and IPCs with the appropriate slot |
| Note: | bootable, real-time capable, error correction, wear leveling, power loss protection and diagnostics-capable |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7648-2BF10-0XK1: frequently asked questions
When can 6ES7648-2BF10-0XK1 be shipped?
6ES7648-2BF10-0XK1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7648-2BF10-0XK1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7648-2BF10-0XK1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7648-2BF10-0XK1, subject to availability and destination.
