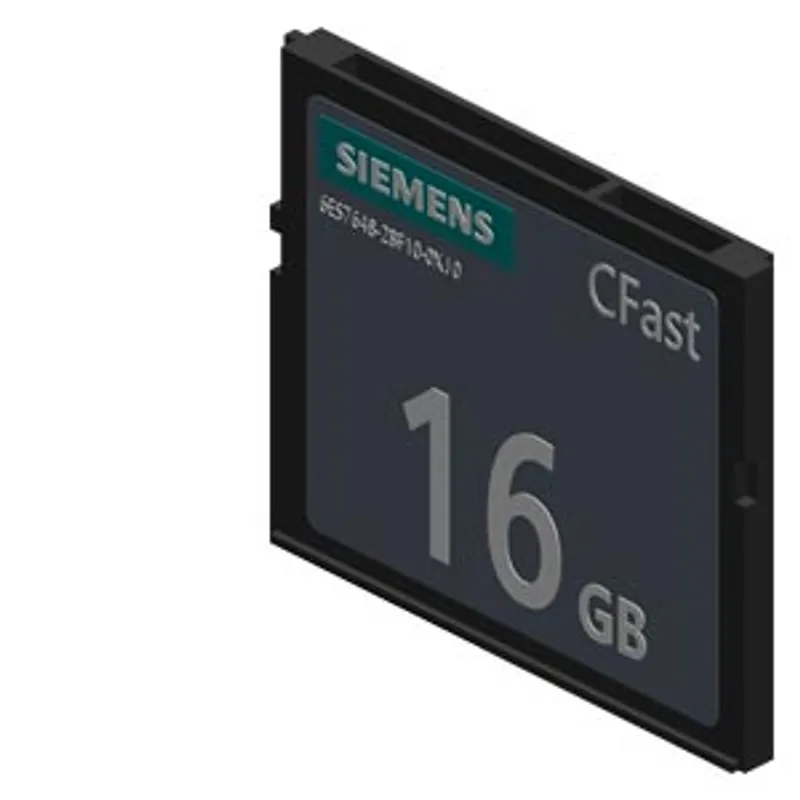

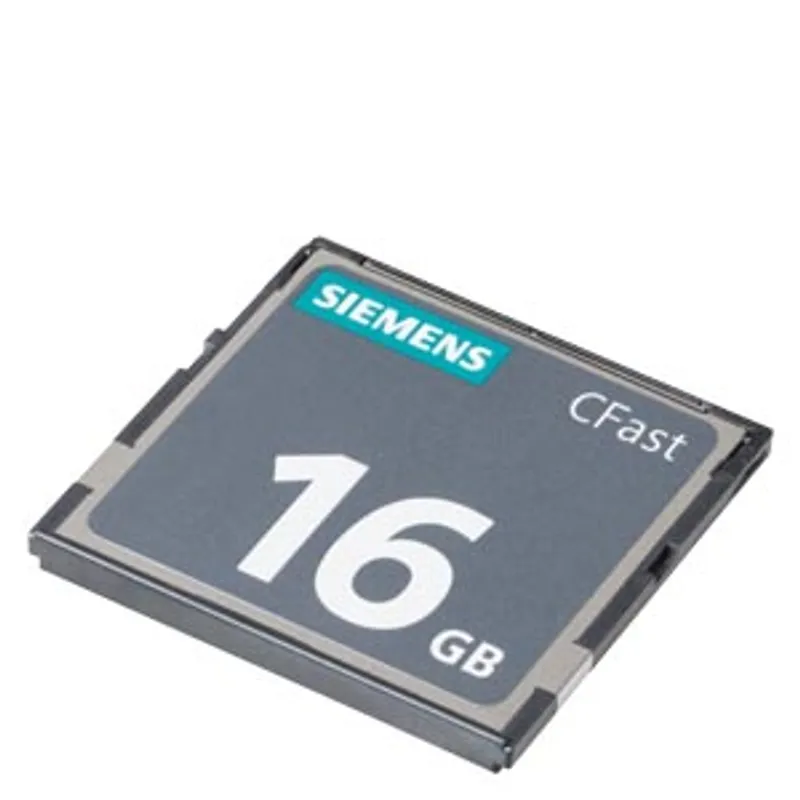

Siemens 6ES7648-2BF10-0XJ0
SIMATIC CFast memory card, 16 GB, for IPCs with corresponding slot, scope of supply: 1 CFast 16 GB
- MPN
- 6ES7648-2BF10-0XJ0
- Category
- Storage media
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7648-2BF10-0XJ0?
SIMATIC CFast memory card, 16 GB, for IPCs with corresponding slot, scope of supply: 1 CFast 16 GB
Specifications
General information
| Product type designation | CFast memory card |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 3.3 V; ±5 % |
Power
| Active power input, typ. | 0.7 W; Inactive 0.3 W |
Storage
| Type of memory | CFast Type I |
| Design | SLC NAND flash |
| Memory size | 16 Gbyte; 1 year (data retention) |
| Speed class | Write speed: up to 60 MB/s (UDMA6), read speed: up to 100 MB/s (UDMA6) |
| SLC flash write cycles | 17; TB; number of write cycles determines the lifetime - with flash mass storage devices, the maximum number of possible write cycles is limited due to the physical properties of the flash cells. The intelligent data management of the flash controller ensures that the write cycle count of the mass storage device far surpasses the write cycles of a single flash memory cell. To ensure overall performance, it is recommended not use the memory area completely. |
Standards, approvals, certificates
| CE mark | Yes |
| RoHS conformity | Yes |
Ambient conditions
| Ambient temperature during operation — min. | -40 °C; Any mounting angle |
| Ambient temperature during operation — max. | 85 °C; Any mounting angle |
| Ambient temperature during storage/transportation — min. | -50 °C |
| Ambient temperature during storage/transportation — max. | 100 °C |
| Relative humidity — Operation, max. | 85 % |
| Relative humidity — Condensation permissible | No |

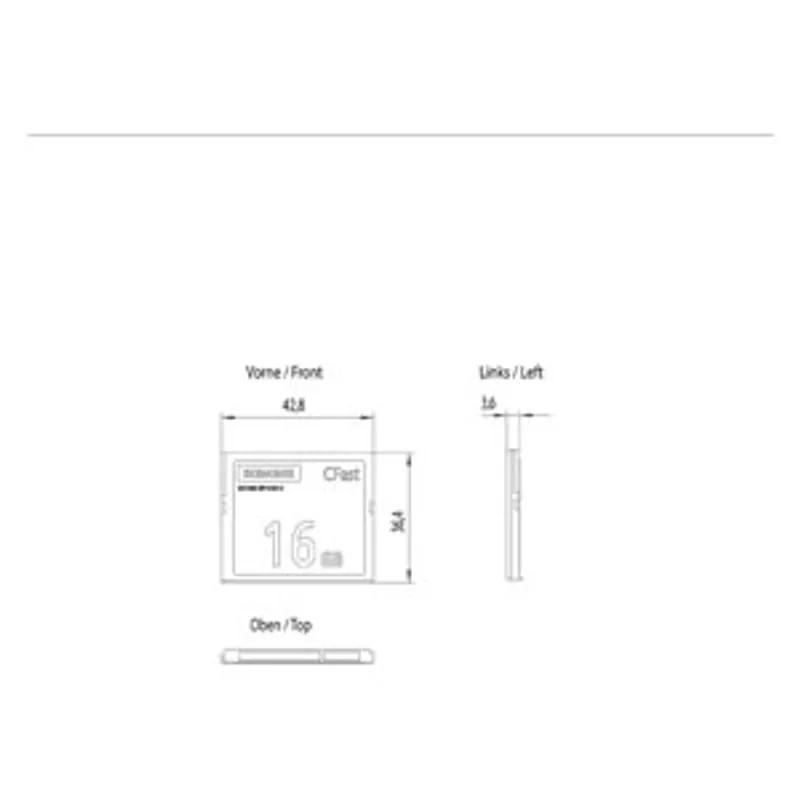

Dimensions
| Width | 42.8 mm |
| Height | 36.4 mm |
| Depth | 3.6 mm |
Weights
| Weight, approx. | 10 g |
Other
| Merchandise | No |
| Manufacturer name | SIEMENS AG |
| Manufacturer's address | Gleiwitzerstraße 555, 90475 Nuremberg, Germany |
| Target devices | For SIMATIC HMI devices and IPCs with the appropriate slot |
| Note: | bootable, real-time capable, error correction, wear leveling, power loss protection and diagnostics-capable |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7648-2BF10-0XJ0: frequently asked questions
When can 6ES7648-2BF10-0XJ0 be shipped?
6ES7648-2BF10-0XJ0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7648-2BF10-0XJ0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7648-2BF10-0XJ0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7648-2BF10-0XJ0, subject to availability and destination.
