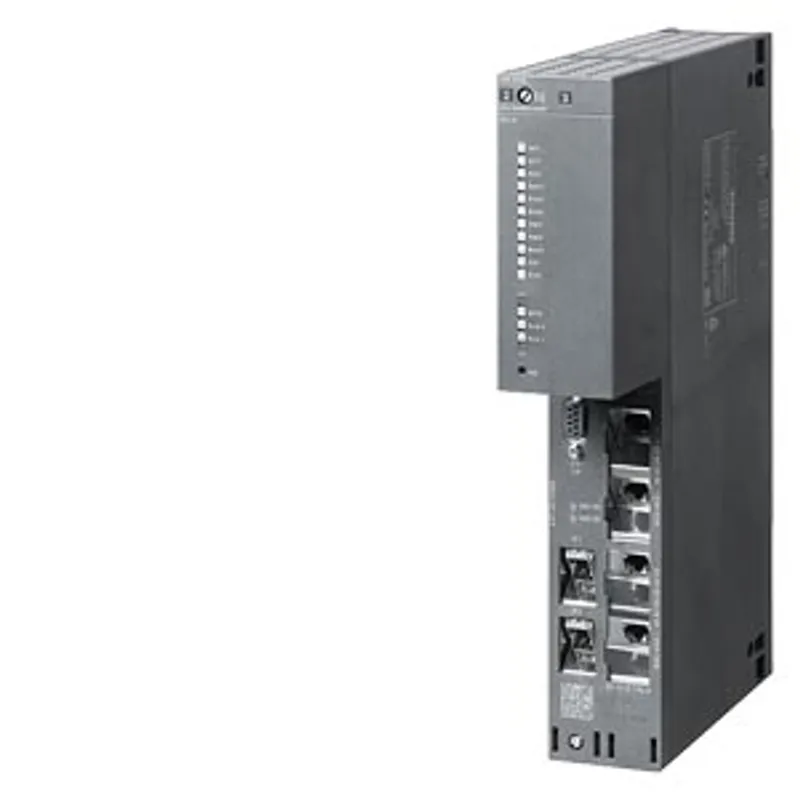

Siemens 6ES7410-5HM08-0AB0

Q: When can 6ES7410-5HM08-0AB0 be shipped?

6ES7410-5HM08-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 6ES7410-5HM08-0AB0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 6ES7410-5HM08-0AB0 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7410-5HM08-0AB0, subject to availability and destination.

SIMATIC CPU 410E Process Automation, central unit for S7-400 and S7-400H/F/FH; 5 interfaces: 2x PN, 1x DP

MPN: 6ES7410-5HM08-0AB0
Category: CPU & Controllers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7410-5HM08-0AB0?

SIMATIC CPU 410E Process Automation, central unit for S7-400 and S7-400H/F/FH; 5 interfaces: 2x PN, 1x DP, 2x for sync modules; for use as spare part; without System Expansion Card

Specifications

General information

Product type designation	CPU 410E
HW functional status	2
Firmware version	V8.3
Design of PLC basic unit	With Conformal Coating (ISA-S71.04 severity level G1; G2; G3) and operating temperature to 70 °C
Product function — SysLog	Yes; via TCP; up to 4 receivers can be parameterized; buffer capacity max. 3 200 entries
Product function — Field interface security	Yes
Engineering with — Programming package	from SIMATIC PCS 7 V10.0.1 (HSP 324, 325, 326)

CiR - Configuration in RUN

CiR synchronization time, basic load	60 ms
CiR synchronization time, time per I/O byte	0 µs

Input current

from backplane bus 5 V DC, typ.	2 A
from backplane bus 5 V DC, max.	2.4 A
from backplane bus 24 V DC, max.	150 mA; DP interface
from interface 5 V DC, max.	90 mA; At the DP interface

Power loss

Power loss, typ.

10 W

Processor

CPU speed

450 MHz; Multi-processor system

Storage

PCS 7 process objects	100 ... approx. 2 600, adjustable with System Expansion Card
Work memory — integrated	32 Mbyte; max., dependent on the System Expansion Card used
Work memory — integrated (for program)	Dependent on the System Expansion Card used
Work memory — integrated (for data)	Dependent on the System Expansion Card used
Work memory — expandable	Dependent on the System Expansion Card used
Load memory — integrated RAM, max.	48 Mbyte
Load memory — expandable RAM	No
Backup — with battery	Yes; all data
Backup — without battery	Yes; Program and data of the load memory

Battery

Backup battery — Backup current, typ.	370 µA; Valid up to 40°C
Backup battery — Backup current, max.	2.1 mA
Backup battery — Backup time, max.	Dealt with in the module data manual with the secondary conditions and the factors of influence
Backup battery — Feeding of external backup voltage to CPU	No

CPU processing times

average processing time of PCS 7 typicals	110 µs; with APL Typicals
Process tasks, max.	9; Individually adjustable from 10 ms to 5 s

CPU-blocks

DB — Number, max.	16 000; Number range: 1 to 16 000 (= Instances)
DB — Size, max.	64 kbyte; the total size of all data blocks generated with the SFC 22 (CREATE_DB) is limited to 256 KB
FB — Number, max.	8 000; Number range: 0 to 7999
FB — Size, max.	64 kbyte
FC — Number, max.	8 000; Number range: 0 to 7999
FC — Size, max.	64 kbyte
OB — Number, max.	see instruction list
OB — Size, max.	64 kbyte
OB — Number of free cycle OBs	1; OB 1
OB — Number of time alarm OBs	8; OB 10-17
OB — Number of delay alarm OBs	4; OB 20-23
OB — Number of cyclic interrupt OBs	9; OB 30-38 (= Process Tasks)
OB — Number of process alarm OBs	8; OB 40-47
OB — Number of DPV1 alarm OBs	3; OB 55-57
OB — Number of startup OBs	2; OB 100, 102
OB — Number of asynchronous error OBs	9; OB 80-88
OB — Number of synchronous error OBs	2; OB 121, 122
Nesting depth — per priority class	24
Nesting depth — additional within an error OB	2

Counters, timers and their retentivity

IEC counter — present	Yes
IEC counter — Type	SFB
IEC counter — Number	Unlimited (limited only by RAM capacity)
IEC timer — present	Yes
IEC timer — Type	SFB
IEC timer — Number	Unlimited (limited only by RAM capacity)

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max.	Total working and load memory (with backup battery)
Flag — Size, max.	16 384 byte
Flag — Retentivity available	Yes
Flag — Number of clock memories	8; in 1 memory byte
Local data — adjustable, max.	64 kbyte

Address area

I/O address area — Inputs	16 kbyte; max., dependent on the System Expansion Card used
I/O address area — Outputs	16 kbyte; max., dependent on the System Expansion Card used
Process image — Inputs, default	16 kbyte; Dependent on the System Expansion Card used
Process image — Outputs, default	16 kbyte; Dependent on the System Expansion Card used
Process image — consistent data, max.	244 byte
Process image — Access to consistent data in process image	Yes
Subprocess images — Number of subprocess images, max.	15

Hardware configuration

connectable OPs	119
Multicomputing	No
Number of DP masters — integrated	1
Number of DP masters — via CP	4; CP 443-5 Extended
Number of IO Controllers — Integrated	2
Number of IO Controllers — Via CP	0
Number of operable FMs and CPs (recommended) — CP, LAN	4
Number of operable FMs and CPs (recommended) — PROFIBUS and Ethernet CPs	4
Slots — required slots	2

Time of day

Clock — Hardware clock (real-time)	Yes
Clock — retentive and synchronizable	Yes
Clock — Resolution	1 ms
Clock — Deviation per day (buffered), max.	1.7 s; Power off
Clock — Deviation per day (unbuffered), max.	8.6 s; Power on
Operating hours counter — Number	16
Operating hours counter — Number/Number range	0 to 15
Operating hours counter — Range of values	SFCs 2, 3 and 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours
Operating hours counter — Granularity	1 h
Operating hours counter — retentive	Yes
Clock synchronization — supported	Yes
Clock synchronization — to DP, master	Yes
Clock synchronization — on DP, device	Yes
Clock synchronization — in AS, master	Yes
Clock synchronization — in AS, device	Yes
Clock synchronization — on Ethernet via NTP	NTP as client and as server/client via SIMATIC procedure

Interfaces

Number of PROFINET interfaces	2
Number of RS 485 interfaces	1; PROFIBUS DP
Number of other interfaces	2; 2x synchronization

1. Interface

Interface type	RS 485 / PROFIBUS
Isolated	Yes
Number of connections	16
Interface types — Output current of the interface, max.	150 mA
Protocols — PROFIBUS DP master	Yes
Protocols — PROFIBUS DP device	No
PROFIBUS DP master — Number of connections, max.	16
PROFIBUS DP master — Transmission rate, max.	12 Mbit/s
PROFIBUS DP master — max. number of DP devices	96
PROFIBUS DP master — Number of slots per interface, max.	1 632
PROFIBUS DP master — Services — PG/OP communication	Yes
PROFIBUS DP master — Services — Routing	Yes; S7 routing
PROFIBUS DP master — Services — Global data communication	No
PROFIBUS DP master — Services — S7 basic communication	No
PROFIBUS DP master — Services — S7 communication	Yes
PROFIBUS DP master — Services — S7 communication, as client	Yes
PROFIBUS DP master — Services — S7 communication, as server	Yes
PROFIBUS DP master — Services — Equidistance	No
PROFIBUS DP master — Services — Isochronous mode	No
PROFIBUS DP master — Services — SYNC/FREEZE	No
PROFIBUS DP master — Services — activation/deactivation of DP devices	Yes; Approved for stand-alone operation only, not in conjunction with CiR (Configuration in Run)
PROFIBUS DP master — Services — Direct data exchange (slave-to-slave communication)	No
PROFIBUS DP master — Services — DPV1	Yes
PROFIBUS DP master — Address area — Inputs, max.	6 kbyte
PROFIBUS DP master — Address area — Outputs, max.	6 kbyte
PROFIBUS DP master — User data per DP device — user data per DP device, max.	244 byte
PROFIBUS DP master — User data per DP device — Inputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Outputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Slots, max.	244
PROFIBUS DP master — User data per DP device — per slot, max.	128 byte

2. Interface

Interface type	PROFINET
Isolated	Yes
automatic detection of transmission rate	Yes; Autosensing
Autonegotiation	Yes
Autocrossing	Yes
System redundancy	Yes
Redundant subnetworks	Yes
Change of IP address at runtime, supported	No
Number of connections	120
Interface types — Number of ports	2
Interface types — integrated switch	Yes
Protocols — PROFINET IO Controller	Yes
Protocols — PROFINET IO Device	No
Protocols — PROFINET CBA	No
Protocols — Open IE communication	Yes
Protocols — Web server	No
Protocols — Media redundancy	Yes
PROFINET IO Controller — Transmission rate, max.	100 Mbit/s
PROFINET IO Controller — Services — PG/OP communication	Yes
PROFINET IO Controller — Services — S7 communication	Yes
PROFINET IO Controller — Services — Shared device	No; however, usable as part of S7
PROFINET IO Controller — Services — Prioritized startup	No
PROFINET IO Controller — Services — Number of connectable IO Devices, max.	250
PROFINET IO Controller — Services — Number of connectable IO Devices for RT, max.	250
PROFINET IO Controller — Services — of which in line, max.	250
PROFINET IO Controller — Services — Activation/deactivation of IO Devices	Yes; Approved for stand-alone operation only, not in conjunction with CiR (Configuration in Run)
PROFINET IO Controller — Services — IO Devices changing during operation (partner ports), supported	No
PROFINET IO Controller — Services — Device replacement without swap medium	Yes
PROFINET IO Controller — Services — Send cycles	250 µs, 500 µs, 1 ms, 2 ms, 4 ms
PROFINET IO Controller — Services — Updating time	250 µs to 512 ms, minimum value depends on the number of configured user data and the configured single or redundant mode
PROFINET IO Controller — Address area — Inputs, max.	8 kbyte
PROFINET IO Controller — Address area — Outputs, max.	8 kbyte
PROFINET IO Controller — Address area — User data consistency, max.	1 024 byte
Open IE communication — Number of connections, max.	118
Open IE communication — Local port numbers used at the system end	0, 20, 21, 25, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Open IE communication — Keep-alive function, supported	Yes

3. Interface

Interface type	PROFINET
Isolated	Yes
automatic detection of transmission rate	Yes; Autosensing
Autonegotiation	Yes
Autocrossing	Yes
System redundancy	Yes
Redundant subnetworks	Yes
Number of connections	120
Interface types — Number of ports	2
Interface types — integrated switch	Yes
Protocols — PROFINET IO Controller	Yes
Protocols — PROFINET IO device	No
Protocols — PROFINET CBA	No
Protocols — Open IE communication	Yes
Protocols — Web server	No
Protocols — Media redundancy	Yes
PROFINET IO Controller — Transmission rate, max.	100 Mbit/s
PROFINET IO Controller — Services — PG/OP communication	Yes
PROFINET IO Controller — Services — S7 communication	Yes
PROFINET IO Controller — Services — Shared device	No; however, usable as part of S7
PROFINET IO Controller — Services — Prioritized startup	No
PROFINET IO Controller — Services — Number of connectable IO Devices, max.	250
PROFINET IO Controller — Services — Number of connectable IO Devices for RT, max.	250
PROFINET IO Controller — Services — of which in line, max.	250
PROFINET IO Controller — Services — Activation/deactivation of IO Devices	Yes; Approved for stand-alone operation only, not in conjunction with CiR (Configuration in Run)
PROFINET IO Controller — Services — IO Devices changing during operation (partner ports), supported	No
PROFINET IO Controller — Services — Device replacement without swap medium	Yes
PROFINET IO Controller — Services — Send cycles	250 µs, 500 µs, 1 ms, 2 ms, 4 ms
PROFINET IO Controller — Services — Updating time	250 µs to 512 ms, minimum value depends on the number of configured user data and the configured single or redundant mode
PROFINET IO Controller — Address area — Inputs, max.	8 kbyte
PROFINET IO Controller — Address area — Outputs, max.	8 kbyte
PROFINET IO Controller — Address area — User data consistency, max.	1 024 byte
Open IE communication — Number of connections, max.	118
Open IE communication — Local port numbers used at the system end	0, 20, 21, 25, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Open IE communication — Keep-alive function, supported	Yes

4. Interface

Interface type	Pluggable synchronization submodule (FO)
Plug-in interface modules	Synchronization module 6ES7960-1AA06-0XA0, 6ES7960-1AB06-0XA0 or 6ES7960-1AA08-0XA0

5. Interface

Interface type	Pluggable synchronization submodule (FO)
Plug-in interface modules	Synchronization module 6ES7960-1AA06-0XA0, 6ES7960-1AB06-0XA0 or 6ES7960-1AA08-0XA0

Protocols

Supports protocol for PROFINET IO	Yes
PROFINET CBA	No
PROFIsafe	Yes
PROFIBUS	Yes
AS-Interface	Yes; Via add-on
Redundancy mode — Media redundancy — Switchover time on line break, typ.	< 200 ms
Redundancy mode — Media redundancy — Number of stations in the ring, max.	50
SIMATIC communication — S7 routing	Yes
Open IE communication — TCP/IP	Yes; via integrated PROFINET interface and loadable FBs
Open IE communication — TCP/IP — Number of connections, max.	118
Open IE communication — TCP/IP — Data length, max.	32 kbyte
Open IE communication — TCP/IP — several passive connections per port, supported	Yes
Open IE communication — ISO-on-TCP (RFC1006)	Yes; Via integrated PROFINET interface or CP 443-1 and loadable FBs
Open IE communication — ISO-on-TCP (RFC1006) — Number of connections, max.	118
Open IE communication — ISO-on-TCP (RFC1006) — Data length, max.	32 kbyte; 1 452 bytes via CP 443-1 Adv.
Open IE communication — UDP	Yes; via integrated PROFINET interface and loadable FBs
Open IE communication — UDP — Number of connections, max.	118
Open IE communication — UDP — Data length, max.	1 472 byte
Further protocols — Foundation Fieldbus	Yes; via DP/FF Link
Further protocols — MODBUS	Yes; Via add-on

Communication functions

PG/OP communication	Yes
PG/OP communication — Number of connectable OPs with message processing	119; When using Alarm_S/SQ and Alarm_D/DQ
PG/OP communication — Number of connectable OPs without message processing	119
Data record routing	Yes
S7 communication — supported	Yes
S7 communication — as server	Yes
S7 communication — as client	Yes
S7 communication — User data per job, max.	64 kbyte
S7 communication — User data per job (of which consistent), max.	462 byte; 1 variable
S5 compatible communication — supported	Yes; via CP and FC AG_SEND and FC AG_RECV
S5 compatible communication — User data per job, max.	8 kbyte
S5 compatible communication — User data per job (of which consistent), max.	240 byte
S5 compatible communication — Number of simultaneous AG-SEND/AG-RECV orders per CPU, max.	64/64
Standard communication (FMS) — supported	Yes; Via CP and loadable FB
Number of connections — overall	120
Number of connections — usable for PG communication — reserved for PG communication	1
Number of connections — usable for OP communication — reserved for OP communication	1

S7 message functions

Number of login stations for message functions, max.	119; max. 119 with Alarm_S/SQ and Alarm_D/DQ (OPs); max. 16 with Alarm_8, Alarm_8P, Notify and Notify_8 (e.g. WinCC)
Program alarms	Yes
Process diagnostic messages	Yes
simultaneously active Alarm_S blocks, max.	1 000; Simultaneously active alarm_S/SQ blocks or alarm_D/DQ blocks
Alarm 8-blocks	Yes
Alarm 8-blocks — Number of instances for alarm 8 and S7 communication blocks, max.	10 000
Process control messages	Yes
Number of archives that can log on simultaneously (SFB 37 AR_SEND)	64

Test commissioning functions

Status block	Yes
Single step	Yes
Number of breakpoints	4
Status/control — Status/control variable	Yes
Status/control — Variables	Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
Status/control — Number of variables, max.	70
Diagnostic buffer — present	Yes
Diagnostic buffer — Number of entries, max.	3 200
Service data — Can be read out	Yes

Standards, approvals, certificates

CE mark	Yes
UKCA mark	Yes
CSA approval	Yes
UL approval	Yes
cULus	Yes
FM approval	Yes
RCM (formerly C-TICK)	Yes
KC approval	Yes
EAC (formerly Gost-R)	Yes
CCC	No
Use in hazardous areas — ATEX	ATEX II 3G Ex ec IIC T4 Gc

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	0 °C
Ambient temperature during operation — horizontal installation, max.	70 °C
Ambient temperature during operation — vertical installation, min.	Not permitted
Ambient temperature during operation — vertical installation, max.	Not permitted

Configuration

Programming — Command set	see instruction list
Programming — Nesting levels	7
Programming — Access to consistent data in process image	Yes
Programming — System functions (SFC)	see instruction list
Programming — System function blocks (SFB)	see instruction list
Programming — Programming language — SCL	Yes
Programming — Programming language — CFC	Yes
Programming — Number of simultaneously active SFCs — RD_REC	8; SFC 59; per interface
Programming — Number of simultaneously active SFCs — WR_REC	8; SFC 58; per interface
Programming — Number of simultaneously active SFCs — WR_PARM	8; SFC 55; per interface
Programming — Number of simultaneously active SFCs — PARM_MOD	1; SFC 57; per interface
Programming — Number of simultaneously active SFCs — WR_DPARM	2; SFC 56; per interface
Programming — Number of simultaneously active SFCs — DPNRM_DG	8; SFC 13; per interface
Programming — Number of simultaneously active SFCs — RDSYSST	8; SFC 51
Programming — Number of simultaneously active SFCs — DP_TOPOL	1; SFC 103; per interface
Programming — Number of simultaneously active SFBs — RDREC	8; SFB 52; per interface, but not more than 32 across all external interfaces
Programming — Number of simultaneously active SFBs — WRREC	8; SFB 53; per interface, but not more than 32 across all external interfaces
Know-how protection — User program protection/password protection	Yes
Know-how protection — Block encryption	Yes; With S7 block Privacy

Dimensions

Width	50 mm
Height	290 mm
Depth	219 mm

Weights

Weight, approx.

1.1 kg

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6ES7410-5HM08-0AB0PDF

6ES7410-5HM08-0AB0: frequently asked questions

When can 6ES7410-5HM08-0AB0 be shipped?

6ES7410-5HM08-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7410-5HM08-0AB0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7410-5HM08-0AB0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7410-5HM08-0AB0, subject to availability and destination.
