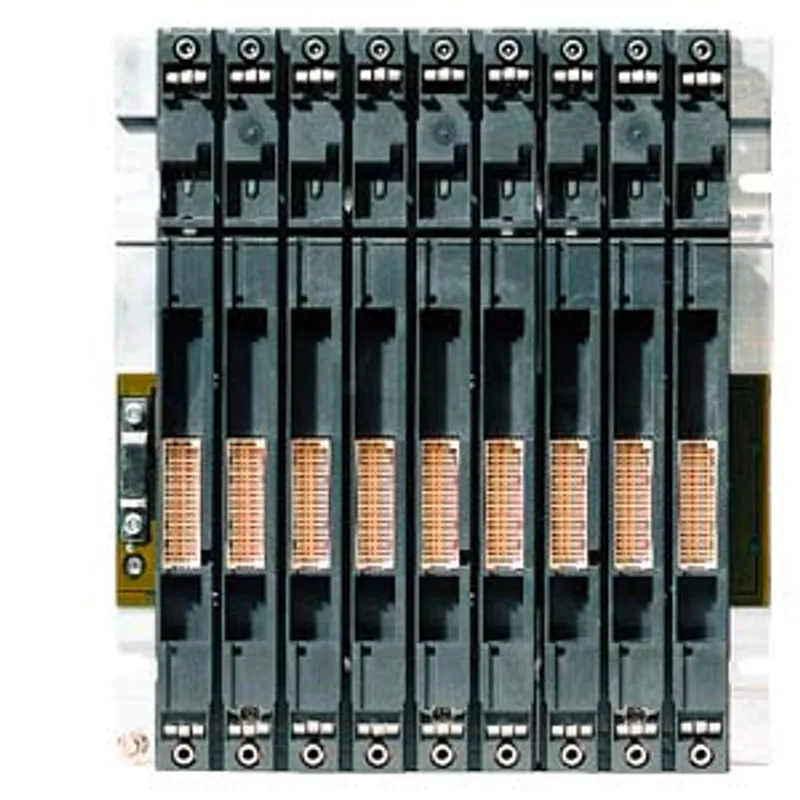

Siemens 6ES7403-1JA01-0AA0
SIMATIC S7-400, extension rack ER2 with 9 slots, only for signal modules 2 redundant PS can be plugged in
- MPN
- 6ES7403-1JA01-0AA0
- Category
- Racks
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7403-1JA01-0AA0?
SIMATIC S7-400, extension rack ER2 with 9 slots, only for signal modules 2 redundant PS can be plugged in
Specifications
General information
| Product type designation | ER2 |
Hardware configuration
| Rack — Communication bus | No |
| Rack — P bus | Yes |
| Slots — Number of slots | 9 |
Standards, approvals, certificates
| CE mark | Yes |
| UKCA mark | Yes |
| UL approval | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| CCC | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during storage/transportation — min. | 0 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |

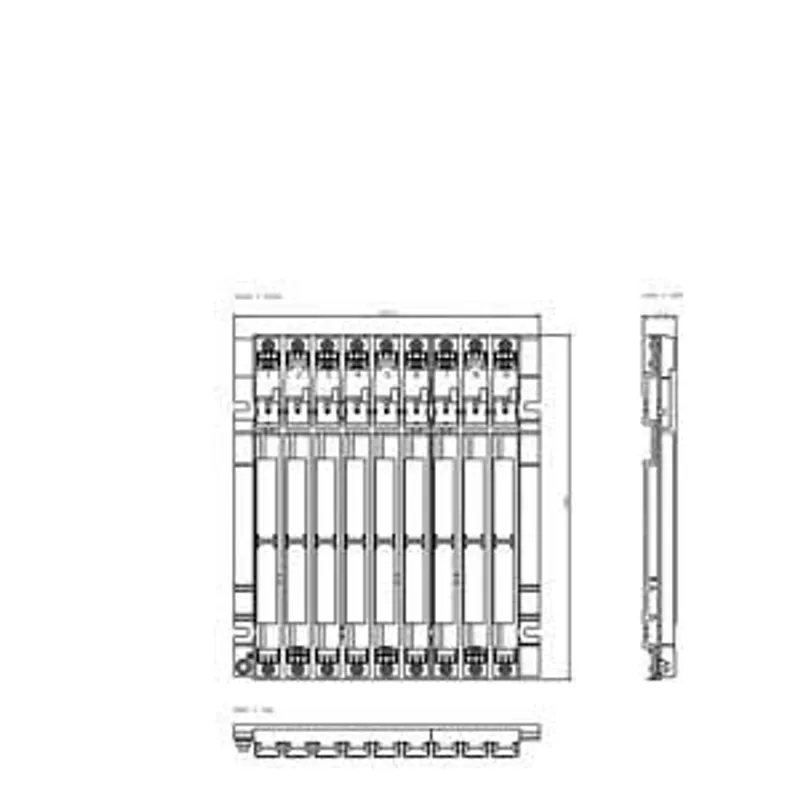

Dimensions
| Width | 257.5 mm |
| Height | 290 mm |
| Depth | 27.5 mm |
Weights
| Weight, approx. | 2 200 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7403-1JA01-0AA0: frequently asked questions
When can 6ES7403-1JA01-0AA0 be shipped?
6ES7403-1JA01-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7403-1JA01-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7403-1JA01-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7403-1JA01-0AA0, subject to availability and destination.
