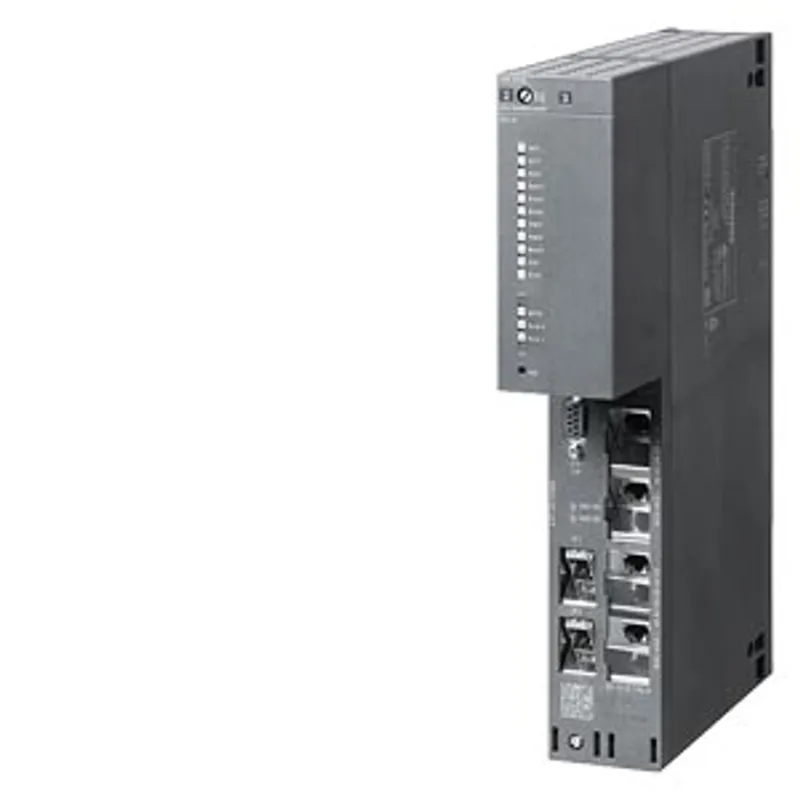

Siemens 6ES7410-5HX08-0AB0

Q: When can 6ES7410-5HX08-0AB0 be shipped?

6ES7410-5HX08-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 6ES7410-5HX08-0AB0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 6ES7410-5HX08-0AB0 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7410-5HX08-0AB0, subject to availability and destination.

SIMATIC CPU 410-5H Process Automation, central unit for S7-400 and S7-400H/F/FH; 5 interfaces: 2x PN, 1x DP

MPN: 6ES7410-5HX08-0AB0
Category: CPU & Controllers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7410-5HX08-0AB0?

SIMATIC CPU 410-5H Process Automation, central unit for S7-400 and S7-400H/F/FH; 5 interfaces: 2x PN, 1x DP, 2x for sync modules; for use as spare part; without System Expansion Card

Specifications

General information

Product type designation	CPU 410-5H
HW functional status	3
Firmware version	V8.3
Design of PLC basic unit	With Conformal Coating (ISA-S71.04 severity level G1; G2; G3) and operating temperature to 70 °C
Product function — SysLog	Yes; via TCP; up to 4 receivers can be parameterized; buffer capacity max. 3 200 entries
Product function — Field interface security	Yes
Engineering with — Programming package	from SIMATIC PCS 7 V10.0.1 (HSP 324, 325, 326)

CiR - Configuration in RUN

CiR synchronization time, basic load	60 ms
CiR synchronization time, time per I/O byte	0 µs

Input current

from backplane bus 5 V DC, typ.	2 A
from backplane bus 5 V DC, max.	2.4 A
from backplane bus 24 V DC, max.	150 mA; DP interface
from interface 5 V DC, max.	90 mA; At the DP interface

Power loss

Power loss, typ.

10 W

Processor

CPU speed

450 MHz; Multi-processor system

Storage

PCS 7 process objects	100 ... approx. 2 600, adjustable with System Expansion Card
Work memory — integrated	32 Mbyte; max., dependent on the System Expansion Card used
Work memory — integrated (for program)	Dependent on the System Expansion Card used
Work memory — integrated (for data)	Dependent on the System Expansion Card used
Work memory — expandable	Dependent on the System Expansion Card used
Load memory — integrated RAM, max.	48 Mbyte
Load memory — expandable RAM	No
Backup — with battery	Yes; all data
Backup — without battery	Yes; Program and data of the load memory

Battery

Backup battery — Backup current, typ.	370 µA; Valid up to 40°C
Backup battery — Backup current, max.	2.1 mA
Backup battery — Backup time, max.	Dealt with in the module data manual with the secondary conditions and the factors of influence
Backup battery — Feeding of external backup voltage to CPU	No

CPU processing times

for bit operations, typ.	7.5 ns
for word operations, typ.	7.5 ns
for fixed point arithmetic, typ.	7.5 ns
for floating point arithmetic, typ.	15 ns
average processing time of PCS 7 typicals	110 µs; with APL Typicals
Process tasks, max.	9; Individually adjustable from 10 ms to 5 s

CPU-blocks

DB — Number, max.	16 000; Number range: 1 to 16 000 (= Instances)
DB — Size, max.	64 kbyte; Dependent on the System Expansion Card used
FB — Number, max.	8 000; Number range: 0 to 7999
FB — Size, max.	64 kbyte
FC — Number, max.	8 000; Number range: 0 to 7999
FC — Size, max.	64 kbyte
OB — Number, max.	see instruction list
OB — Size, max.	64 kbyte
OB — Number of free cycle OBs	1; OB 1
OB — Number of time alarm OBs	8; OB 10-17
OB — Number of delay alarm OBs	4; OB 20-23
OB — Number of cyclic interrupt OBs	9; OB 30-38 (= Process Tasks)
OB — Number of process alarm OBs	8; OB 40-47
OB — Number of DPV1 alarm OBs	3; OB 55-57
OB — Number of startup OBs	2; OB 100, 102
OB — Number of asynchronous error OBs	9; OB 80-88
OB — Number of synchronous error OBs	2; OB 121, 122
Nesting depth — per priority class	24
Nesting depth — additional within an error OB	2

Counters, timers and their retentivity

IEC counter — present	Yes
IEC counter — Type	SFB
IEC counter — Number	Unlimited (limited only by RAM capacity)
IEC timer — present	Yes
IEC timer — Type	SFB
IEC timer — Number	Unlimited (limited only by RAM capacity)

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max.	Total working and load memory (with backup battery)
Flag — Size, max.	16 384 byte
Flag — Retentivity available	Yes
Flag — Number of clock memories	8; in 1 memory byte
Local data — adjustable, max.	64 kbyte

Address area

I/O address area — Inputs	16 kbyte; max., dependent on the System Expansion Card used
I/O address area — Outputs	16 kbyte; max., dependent on the System Expansion Card used
Process image — Inputs, default	16 kbyte; Dependent on the System Expansion Card used
Process image — Outputs, default	16 kbyte; Dependent on the System Expansion Card used
Process image — consistent data, max.	244 byte
Process image — Access to consistent data in process image	Yes
Subprocess images — Number of subprocess images, max.	15

Hardware configuration

Number of expansion units, max.	21; S7-400 expansion devices
connectable OPs	119
Multicomputing	No
Interface modules — Number of connectable IMs (total), max.	6
Interface modules — Number of connectable IM 460s, max.	6
Interface modules — Number of connectable IM 463s, max.	4; Single mode only
Number of DP masters — integrated	1
Number of DP masters — via CP	10; CP 443-5 Extended
Number of IO Controllers — Integrated	2
Number of IO Controllers — Via CP	0
Number of operable FMs and CPs (recommended) — PROFIBUS and Ethernet CPs	11; Of which max. 10 CP as DP master
Slots — required slots	2

Time of day

Clock — Hardware clock (real-time)	Yes
Clock — retentive and synchronizable	Yes
Clock — Resolution	1 ms
Clock — Deviation per day (buffered), max.	1.7 s; Power off
Clock — Deviation per day (unbuffered), max.	8.6 s; Power on
Operating hours counter — Number	16
Operating hours counter — Number/Number range	0 to 15
Operating hours counter — Range of values	SFCs 2, 3 and 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours
Operating hours counter — Granularity	1 h
Operating hours counter — retentive	Yes
Clock synchronization — supported	Yes
Clock synchronization — to DP, master	Yes
Clock synchronization — on DP, device	Yes
Clock synchronization — in AS, master	Yes
Clock synchronization — in AS, device	Yes
Clock synchronization — on Ethernet via NTP	NTP as client and as server/client via SIMATIC procedure

Interfaces

Number of PROFINET interfaces	2
Number of RS 485 interfaces	1; PROFIBUS DP
Number of other interfaces	2; 2x synchronization

1. Interface

Interface type	RS 485 / PROFIBUS
Isolated	Yes
Number of connections	16
Interface types — Output current of the interface, max.	150 mA
Protocols — PROFIBUS DP master	Yes
Protocols — PROFIBUS DP device	No
PROFIBUS DP master — Number of connections, max.	16
PROFIBUS DP master — Transmission rate, max.	12 Mbit/s
PROFIBUS DP master — max. number of DP devices	96
PROFIBUS DP master — Number of slots per interface, max.	1 632
PROFIBUS DP master — Services — PG/OP communication	Yes
PROFIBUS DP master — Services — Routing	Yes; S7 routing
PROFIBUS DP master — Services — Global data communication	No
PROFIBUS DP master — Services — S7 basic communication	No
PROFIBUS DP master — Services — S7 communication	Yes
PROFIBUS DP master — Services — S7 communication, as client	Yes
PROFIBUS DP master — Services — S7 communication, as server	Yes
PROFIBUS DP master — Services — Equidistance	No
PROFIBUS DP master — Services — Isochronous mode	No
PROFIBUS DP master — Services — SYNC/FREEZE	No
PROFIBUS DP master — Services — activation/deactivation of DP devices	Yes; Approved for stand-alone operation only, not in conjunction with CiR (Configuration in Run)
PROFIBUS DP master — Services — Direct data exchange (slave-to-slave communication)	No
PROFIBUS DP master — Services — DPV1	Yes
PROFIBUS DP master — Address area — Inputs, max.	6 kbyte
PROFIBUS DP master — Address area — Outputs, max.	6 kbyte
PROFIBUS DP master — User data per DP device — user data per DP device, max.	244 byte
PROFIBUS DP master — User data per DP device — Inputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Outputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Slots, max.	244
PROFIBUS DP master — User data per DP device — per slot, max.	128 byte

2. Interface

Interface type	PROFINET
Isolated	Yes
automatic detection of transmission rate	Yes; Autosensing
Autonegotiation	Yes
Autocrossing	Yes
System redundancy	Yes
Redundant subnetworks	Yes
Change of IP address at runtime, supported	No
Number of connections	120
Interface types — Number of ports	2
Interface types — integrated switch	Yes
Protocols — PROFINET IO Controller	Yes
Protocols — PROFINET IO Device	No
Protocols — PROFINET CBA	No
Protocols — Open IE communication	Yes
Protocols — Web server	No
Protocols — Media redundancy	Yes
PROFINET IO Controller — Transmission rate, max.	100 Mbit/s
PROFINET IO Controller — Services — PG/OP communication	Yes
PROFINET IO Controller — Services — S7 communication	Yes
PROFINET IO Controller — Services — Shared device	No; however, usable as part of S7
PROFINET IO Controller — Services — Prioritized startup	No
PROFINET IO Controller — Services — Number of connectable IO Devices, max.	250
PROFINET IO Controller — Services — Number of connectable IO Devices for RT, max.	250
PROFINET IO Controller — Services — of which in line, max.	250
PROFINET IO Controller — Services — Activation/deactivation of IO Devices	Yes; Approved for stand-alone operation only, not in conjunction with CiR (Configuration in Run)
PROFINET IO Controller — Services — IO Devices changing during operation (partner ports), supported	No
PROFINET IO Controller — Services — Device replacement without swap medium	Yes
PROFINET IO Controller — Services — Send cycles	250 µs, 500 µs, 1 ms, 2 ms, 4 ms
PROFINET IO Controller — Services — Updating time	250 µs to 512 ms, minimum value depends on the number of configured user data and the configured single or redundant mode
PROFINET IO Controller — Address area — Inputs, max.	8 kbyte
PROFINET IO Controller — Address area — Outputs, max.	8 kbyte
PROFINET IO Controller — Address area — User data consistency, max.	1 024 byte
Open IE communication — Number of connections, max.	118
Open IE communication — Local port numbers used at the system end	0, 20, 21, 25, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Open IE communication — Keep-alive function, supported	Yes

3. Interface

Interface type	PROFINET
Isolated	Yes
automatic detection of transmission rate	Yes; Autosensing
Autonegotiation	Yes
Autocrossing	Yes
System redundancy	Yes
Redundant subnetworks	Yes
Number of connections	120
Interface types — Number of ports	2
Interface types — integrated switch	Yes
Protocols — PROFINET IO Controller	Yes
Protocols — PROFINET IO device	No
Protocols — PROFINET CBA	No
Protocols — Open IE communication	Yes
Protocols — Web server	No
Protocols — Media redundancy	Yes
PROFINET IO Controller — Transmission rate, max.	100 Mbit/s
PROFINET IO Controller — Services — PG/OP communication	Yes
PROFINET IO Controller — Services — S7 communication	Yes
PROFINET IO Controller — Services — Shared device	No; however, usable as part of S7
PROFINET IO Controller — Services — Prioritized startup	No
PROFINET IO Controller — Services — Number of connectable IO Devices, max.	250
PROFINET IO Controller — Services — Number of connectable IO Devices for RT, max.	250
PROFINET IO Controller — Services — of which in line, max.	250
PROFINET IO Controller — Services — Activation/deactivation of IO Devices	Yes; Approved for stand-alone operation only, not in conjunction with CiR (Configuration in Run)
PROFINET IO Controller — Services — IO Devices changing during operation (partner ports), supported	No
PROFINET IO Controller — Services — Device replacement without swap medium	Yes
PROFINET IO Controller — Services — Send cycles	250 µs, 500 µs, 1 ms, 2 ms, 4 ms
PROFINET IO Controller — Services — Updating time	250 µs to 512 ms, minimum value depends on the number of configured user data and the configured single or redundant mode
PROFINET IO Controller — Address area — Inputs, max.	8 kbyte
PROFINET IO Controller — Address area — Outputs, max.	8 kbyte
PROFINET IO Controller — Address area — User data consistency, max.	1 024 byte
Open IE communication — Number of connections, max.	118
Open IE communication — Local port numbers used at the system end	0, 20, 21, 25, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Open IE communication — Keep-alive function, supported	Yes

4. Interface

Interface type	Pluggable synchronization submodule (FO)
Plug-in interface modules	Synchronization module 6ES7960-1AA06-0XA0, 6ES7960-1AB06-0XA0 or 6ES7960-1AA08-0XA0

5. Interface

Interface type	Pluggable synchronization submodule (FO)
Plug-in interface modules	Synchronization module 6ES7960-1AA06-0XA0, 6ES7960-1AB06-0XA0 or 6ES7960-1AA08-0XA0

Protocols

Supports protocol for PROFINET IO	Yes
PROFINET CBA	No
PROFIsafe	Yes
PROFIBUS	Yes
AS-Interface	Yes; Via add-on
Redundancy mode — Media redundancy — Switchover time on line break, typ.	< 200 ms
Redundancy mode — Media redundancy — Number of stations in the ring, max.	50
SIMATIC communication — S7 routing	Yes
Open IE communication — TCP/IP	Yes; via integrated PROFINET interface and loadable FBs
Open IE communication — TCP/IP — Number of connections, max.	118
Open IE communication — TCP/IP — Data length, max.	32 kbyte
Open IE communication — TCP/IP — several passive connections per port, supported	Yes
Open IE communication — ISO-on-TCP (RFC1006)	Yes; Via integrated PROFINET interface or CP 443-1 and loadable FBs
Open IE communication — ISO-on-TCP (RFC1006) — Number of connections, max.	118
Open IE communication — ISO-on-TCP (RFC1006) — Data length, max.	32 kbyte; 1 452 bytes via CP 443-1 Adv.
Open IE communication — UDP	Yes; via integrated PROFINET interface and loadable FBs
Open IE communication — UDP — Number of connections, max.	118
Open IE communication — UDP — Data length, max.	1 472 byte
Further protocols — Foundation Fieldbus	Yes; via DP/FF Link
Further protocols — MODBUS	Yes; Via add-on

Communication functions

PG/OP communication	Yes
PG/OP communication — Number of connectable OPs with message processing	119; When using Alarm_S/SQ and Alarm_D/DQ
PG/OP communication — Number of connectable OPs without message processing	119
Data record routing	Yes
S7 communication — supported	Yes
S7 communication — as server	Yes
S7 communication — as client	Yes
S7 communication — User data per job, max.	64 kbyte
S7 communication — User data per job (of which consistent), max.	462 byte; 1 variable
S5 compatible communication — supported	Yes; via CP and FC AG_SEND and FC AG_RECV
S5 compatible communication — User data per job, max.	8 kbyte
S5 compatible communication — User data per job (of which consistent), max.	240 byte
S5 compatible communication — Number of simultaneous AG-SEND/AG-RECV orders per CPU, max.	64/64
Standard communication (FMS) — supported	Yes; Via CP and loadable FB
Number of connections — overall	120
Number of connections — overall	120
Number of connections — usable for PG communication — reserved for PG communication	1
Number of connections — usable for OP communication — reserved for OP communication	1

S7 message functions

Number of login stations for message functions, max.	119; max. 119 with Alarm_S/SQ and Alarm_D/DQ (OPs); max. 16 with Alarm_8, Alarm_8P, Notify and Notify_8 (e.g. WinCC)
Program alarms	Yes
Process diagnostic messages	Yes
simultaneously active Alarm_S blocks, max.	1 000; Simultaneously active alarm_S/SQ blocks or alarm_D/DQ blocks
Alarm 8-blocks	Yes
Alarm 8-blocks — Number of instances for alarm 8 and S7 communication blocks, max.	10 000
Process control messages	Yes
Number of archives that can log on simultaneously (SFB 37 AR_SEND)	64

Test commissioning functions

Status block	Yes
Single step	Yes
Number of breakpoints	4
Status/control — Status/control variable	Yes
Status/control — Variables	Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
Status/control — Number of variables, max.	70
Diagnostic buffer — present	Yes
Diagnostic buffer — Number of entries, max.	3 200
Service data — Can be read out	Yes

Standards, approvals, certificates

CE mark	Yes
UKCA mark	Yes
CSA approval	Yes
UL approval	Yes
cULus	Yes
FM approval	Yes
RCM (formerly C-TICK)	Yes
KC approval	Yes
EAC (formerly Gost-R)	Yes
CCC	No
Use in hazardous areas — ATEX	ATEX II 3G Ex ec IIC T4 Gc

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	0 °C
Ambient temperature during operation — horizontal installation, max.	70 °C
Ambient temperature during operation — vertical installation, min.	Not permitted
Ambient temperature during operation — vertical installation, max.	Not permitted

Configuration

Programming — Command set	see instruction list
Programming — Nesting levels	7
Programming — Access to consistent data in process image	Yes
Programming — System functions (SFC)	see instruction list
Programming — System function blocks (SFB)	see instruction list
Programming — Programming language — SCL	Yes
Programming — Programming language — CFC	Yes
Programming — Number of simultaneously active SFCs — RD_REC	8; SFC 59; per interface
Programming — Number of simultaneously active SFCs — WR_REC	8; SFC 58; per interface
Programming — Number of simultaneously active SFCs — WR_PARM	8; SFC 55; per interface
Programming — Number of simultaneously active SFCs — PARM_MOD	1; SFC 57; per interface
Programming — Number of simultaneously active SFCs — WR_DPARM	2; SFC 56; per interface
Programming — Number of simultaneously active SFCs — DPNRM_DG	8; SFC 13; per interface
Programming — Number of simultaneously active SFCs — RDSYSST	8; SFC 51
Programming — Number of simultaneously active SFCs — DP_TOPOL	1; SFC 103; per interface
Programming — Number of simultaneously active SFBs — RDREC	8; SFB 52; per interface, but not more than 32 across all external interfaces
Programming — Number of simultaneously active SFBs — WRREC	8; SFB 53; per interface, but not more than 32 across all external interfaces
Know-how protection — User program protection/password protection	Yes
Know-how protection — Block encryption	Yes; With S7 block Privacy

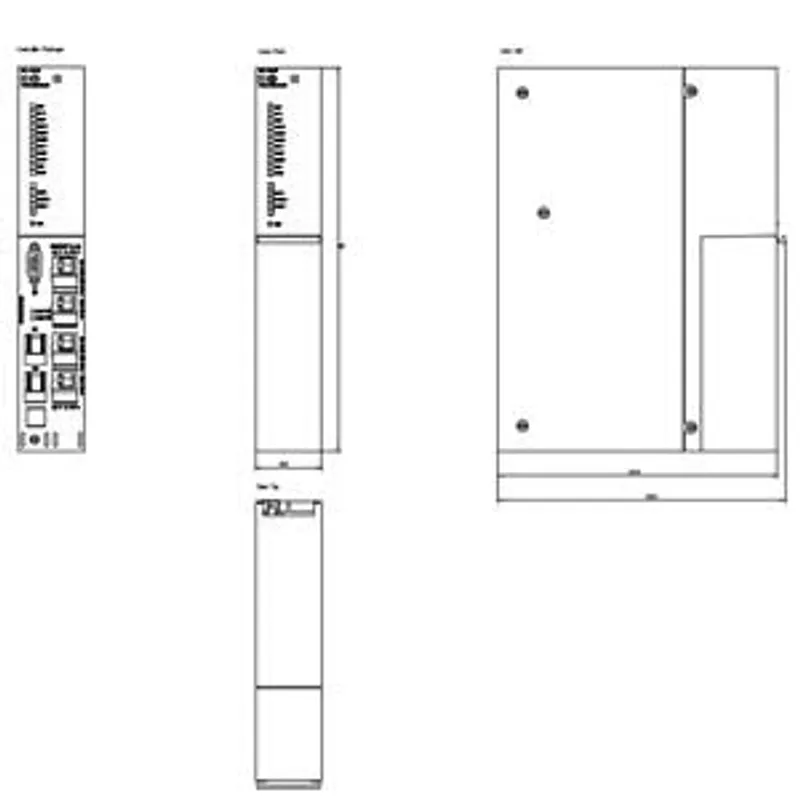

Dimensions

Width	50 mm
Height	290 mm
Depth	219 mm

Weights

Weight, approx.

1.1 kg

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6ES7410-5HX08-0AB0PDF

6ES7410-5HX08-0AB0: frequently asked questions

When can 6ES7410-5HX08-0AB0 be shipped?

6ES7410-5HX08-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7410-5HX08-0AB0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7410-5HX08-0AB0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7410-5HX08-0AB0, subject to availability and destination.
