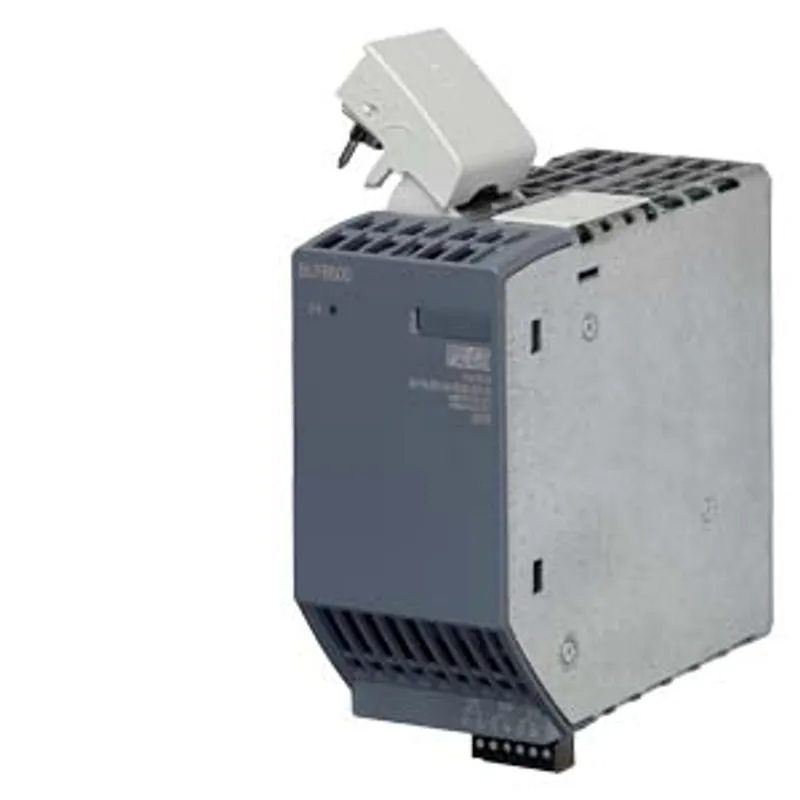

Siemens 6EP4293-8HB00-0XY0
SITOP BUF8600/4S/40A SITOP BUF8600 4s buffer module for PSU8600 buffer capacity 4 s/40 A with dual-layer…
- MPN
- 6EP4293-8HB00-0XY0
- Category
- Power Supplies
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 6EP4293-8HB00-0XY0?
SITOP BUF8600/4S/40A SITOP BUF8600 4s buffer module for PSU8600 buffer capacity 4 s/40 A with dual-layer capacitators maintenance-free
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6EP4293-8HB00-0XY0 |
| Technical Product Detail Page | https://i.siemens.com/1P6EP4293-8HB00-0XY0 |
| product brand name | SITOP |
| product type designation | BUF8600 |
| type of current supply | 4 s/40 A |
memory
| type of energy storage | Double-layer capacitors |
| product function DC-UPS modularly expandable | Yes |
| design of the mains power cut bridging-connection | Backup time with 40 A load current: 4 s |
| buffering time for rated value of the output current in the event of power failure | 4 000 ms |
| load time typical | 5 min; at 400 V |
output
| output current — rated value | 40 A |
protection and monitoring
| display version | 3-color LED for operating state module |
| for normal operation | LED green for "buffer standby exist" |
| in buffering mode | LED yellow for "buffered mode" |
interfaces
| product function communication function | Yes |
| design of the interface | Ethernet/PROFINET via power supply unit PSU8600 |
safety
| operating resource protection class | Class III |
| protection class IP | IP20 |
| standard — for emitted interference | EN 55022 Class B |
| standard — for interference immunity | EN 61000-6-2 |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — SEMI F47 | Yes |
| type of certification CB-certificate | Yes |
| MTBF at 40 °C | 1 374 707 h |
standards, specifications, approvals hazardous environments
| certificate of suitability — ATEX | No |
standards, specifications, approvals marine classification
| shipbuilding approval | Yes |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association — Det Norske Veritas (DNV) | Yes |
standards, specifications, approvals Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 124.6 kg |
| global warming potential [CO2 eq] — during manufacturing | 19.8 kg |
| global warming potential [CO2 eq] — during operation | 104 kg |
| global warming potential [CO2 eq] — after end of life | 0.37 kg |
ambient conditions
| ambient temperature — during operation | -25 ... +60 °C; with natural convection |
| ambient temperature — during transport | -40 ... +70 °C |
| ambient temperature — during storage | -40 ... +70 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
connection method
| type of electrical connection | Plug-in terminal with screw connectors |
| for control circuit and status message | X1, X2 (control contact) and 13,14, 23, 24 (message signals): 1 screw terminal each for 0.2 ... 1.5 mm² |
| suitability for interaction modular system | Yes |
| type of connection to system components | Via integrated connector |
mechanical data
| width × height × depth of the enclosure | 60 × 125 × 150 mm |
| installation width × mounting height | 60 mm × 225 mm |
| required spacing — top | 50 mm |
| required spacing — bottom | 50 mm |
| required spacing — left | 0 mm |
| required spacing — right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight | 1.25 kg |
accessories
| mechanical accessories | Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20 |
further information internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: power supplies | https://siemens.com/sitop |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
additional information
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
