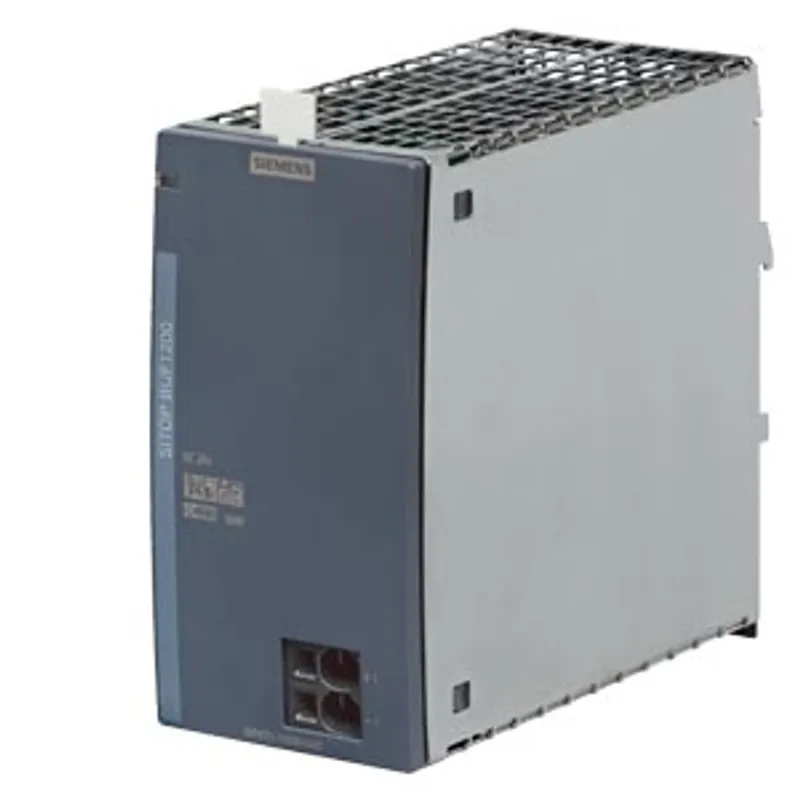

Siemens 6EP4231-7HB00-0AX0
SITOP BUF1200/300MS/40A SITOP BUF1200 buffer module Buffer time 300 ms at 40 A Buffer t. depends on load…
- MPN
- 6EP4231-7HB00-0AX0
- Category
- Power Supplies
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 6EP4231-7HB00-0AX0?
SITOP BUF1200/300MS/40A SITOP BUF1200 buffer module Buffer time 300 ms at 40 A Buffer t. depends on load current DC input 24 V
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6EP4231-7HB00-0AX0 |
| Technical Product Detail Page | https://i.siemens.com/1P6EP4231-7HB00-0AX0 |
| product brand name | SITOP |
| product type designation | BUF1200 |
| type of current supply | 300 ms/40 A |
input
| voltage curve at input | DC |
| supply voltage at DC rated value | 24 V |
| supply voltage at DC | 24 ... 28 V |
| input voltage at DC | 20 ... 30 V |
memory
| design of the mains power cut bridging-connection | Module for buffering during short power interruptions; parallel connection at the output of 24 V power supplies. Buffer time of 300 ms at 40 A up to 2.4 s at 5 A load current; multiplication possible by parallel connection |
| buffering time in the event of power failure | 0.3 min |
output
| output current — rated value | 40 A |
protection and monitoring
| display version — for normal operation | LED green for "buffer standby exist" |
interfaces
| product component PC interface | No |
| product function communication function | No |
| design of the interface | without |
safety
| galvanic isolation between input and output | Yes |
| operating resource protection class | Class III |
| protection class IP | IP20 |
| standard — for interference immunity | EN 61000-6-2 |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — SEMI F47 | Yes |
| type of certification CB-certificate | Yes |
standards, specifications, approvals hazardous environments
| certificate of suitability — ATEX | No |
standards, specifications, approvals marine classification
| shipbuilding approval | Yes |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | Yes; in preparation |
| Marine classification association — Det Norske Veritas (DNV) | Yes; in preparation |
standards, specifications, approvals Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 68.8 kg |
| global warming potential [CO2 eq] — during manufacturing | 19 kg |
| global warming potential [CO2 eq] — during operation | 49.1 kg |
| global warming potential [CO2 eq] — after end of life | 0.36 kg |
ambient conditions
| ambient temperature — during operation | -40 ... +70 °C; with natural convection |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
connection method
| type of electrical connection | push-in terminals |
| at input | +: push-in for 0.75 ... 16 mm² |
| at output | -: push-in for 0.5 ... 6 mm² |
mechanical data
| width × height × depth of the enclosure | 70 × 135 × 155 mm |
| installation width × mounting height | 70 mm × 225 mm |
| required spacing — top | 45 mm |
| required spacing — bottom | 45 mm |
| required spacing — left | 0 mm |
| required spacing — right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight | 1.2 kg |
further information internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: power supplies | https://siemens.com/sitop |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
additional information
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
