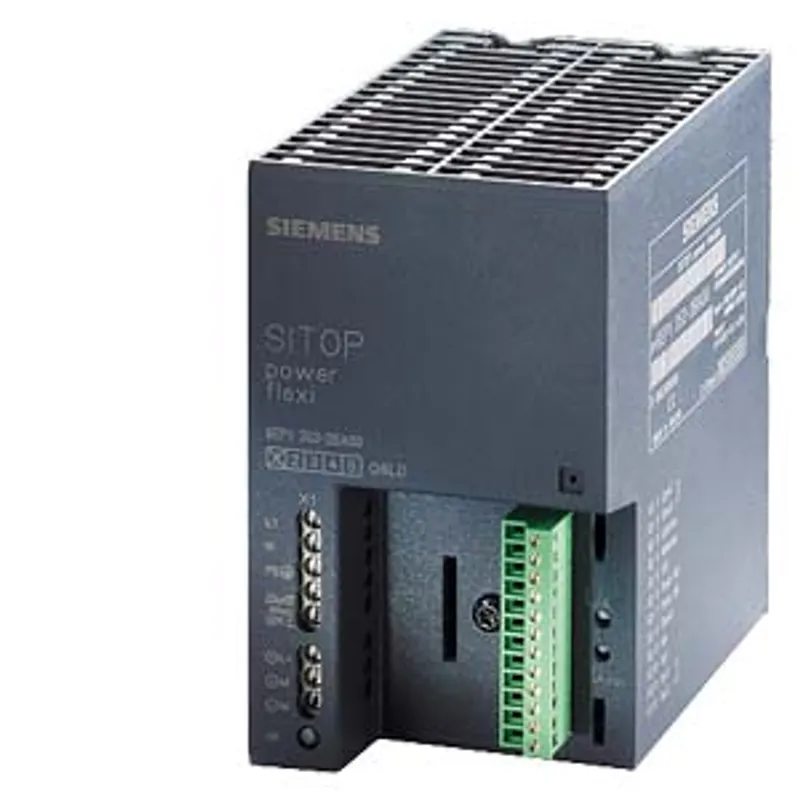

Siemens 6EP1353-2BA00

MPN: 6EP1353-2BA00
Category: Power Supplies

Price and lead time confirmed within 1 business day

Discontinued by Siemens — we can still source the original 6EP1353-2BA00 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 6EP1353-2BA00?

Siemens 6EP1353-2BA00. Sourced on request by PartnerPLC — new, surplus or refurbished, subject to availability. Request a quote for price, condition and lead time.

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6EP1353-2BA00
product brand name	SITOP flexi
product designation	Power supply SITOP power
type of current supply	3-52 V/2-10 A

input

type of the power supply network	1-phase AC
phase number	1
voltage curve at input	AC
supply voltage at AC — minimum rated value	120 V
supply voltage at AC — maximum rated value	230 V
supply voltage at AC	Set via wire jumper
supply voltage	120 V/230 V
input voltage 1 at AC	85 ... 132 V
input voltage 2 at AC	170 ... 264 V
supply voltage — at 50 Hz	230 V
supply voltage — at 60 Hz	120 V
line frequency	50/60 Hz
line frequency	47 ... 63 Hz
wide range input	No
overvoltage overload capability	2.3 × Vin rated, 1.3 ms
buffering time for rated value of the output current in the event of power failure minimum	10 ms
operating condition of the mains buffering	at Pout = 120 W and Vin = 93/187 V
input current — at rated input voltage 120 V	2.2 A
input current — at rated input voltage 230 V	0.9 A
current limitation of inrush current at 25 °C maximum	32 A
I2t value maximum	0.8 A²·s
fuse protection type	T 3,15 A/250 V (not accessible)
fuse protection type in the feeder	Recommended miniature circuit breaker: from 6 A characteristic C

output

voltage curve at output	Controlled, isolated DC voltage
product function output voltage controlled	Yes
product function output voltage stabilized	Yes
output voltage at DC rated value	24 V
formula for output voltage	3-52 V DC
output voltage — at output 1 at DC rated value	24 V
output voltage — at output 1 at DC	3 ... 52 V
output voltage adjustable	Yes; via potentiometer or analog current voltage signal 0 ... 2.5 V
adjustable output voltage	3 ... 52 V
relative overall tolerance of the voltage	1 %
relative control precision of the output voltage — on slow fluctuation of input voltage	0.1 %
relative control precision of the output voltage — on slow fluctuation of ohm loading	0.2 %
voltage compensation per sense line	0.5 V
residual ripple — maximum	50 mV
residual ripple — typical	20 mV
voltage peak — maximum	100 mV
voltage peak — typical	80 mV
display version for normal operation	Green LED for 24 V OK
type of signal at output	Power-Good via relay contact, current monitor signal 0 … 2.5 V
behavior of the output voltage when switching on	No overshoot of Vout (soft start)
response delay maximum	3 s
voltage increase time of the output voltage — typical	80 ms
output current — rated value	10 A
output current — minimum rated value	2 A
output current — maximum rated value	10 A
output current — rated range	0 ... 10 A; max. 120 W
supplied active power typical	120 W
constant overload current — on short-circuiting during the start-up typical	10 A
constant overload current — at short-circuit during operation typical	10 A
bridging of equipment	Yes
number of parallel-switched equipment resources for increasing the power	2

efficiency

efficiency in percent	84 %
power loss [W] — at rated output voltage for rated value of the output current typical	23 W

protection and monitoring

design of the overvoltage protection	Yes, according to EN 60950-1
property of the output short-circuit proof	Yes
design of short-circuit protection	Electronic current limiting (2 ... 10 A) in the range 3 ... 12 V or power limiting (120 W) in the range 12 ... 52 V
response value current limitation	2 ... 10 A
design of the current limitation	2 ... 10 A, adjustable using potentiometer or analog control voltage signal 0 ... 2.5 V
overcurrent overload capability — in normal operation	According to the adjusted current regulation 2 ... 10 A
display version for overload and short circuit	Red LED for current or power limiting

safety

galvanic isolation between input and output	Yes
galvanic isolation	Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
operating resource protection class	Class I
leakage current — maximum	3.5 mA
protection class IP	IP20

EMC

standard — for emitted interference	EN 55022 Class B
standard — for mains harmonics limitation	EN 61000-3-2
standard — for interference immunity	EN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289
certificate of suitability — EAC approval	Yes
certificate of suitability — NEC Class 2	No
certificate of suitability — SEMI F47	Yes
type of certification — CB-certificate	No
MTBF at 40 °C	1 196 172 h

standards, specifications, approvals hazardous environments

certificate of suitability — IECEx	No
certificate of suitability — ATEX	No
certificate of suitability — ULhazloc approval	No
certificate of suitability — FM registration	No

standards, specifications, approvals marine classification

shipbuilding approval	No
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	No
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	No
Marine classification association — Lloyds Register of Shipping (LRS)	No

ambient conditions

ambient temperature — during operation	0 ... 60 °C; with natural convection
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — during storage	-40 ... +85 °C
environmental category according to IEC 60721	Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connection	screw terminal
at input	L1, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded
at output	L+: 1 screw terminal for 0.5 ... 2.5 mm²; M: 2 screw terminals for 0.5 ... 2.5 mm²
for auxiliary contacts	Alarm signals, control inputs: 1 screw terminal each for 0.14 ... 1.5 mm²

mechanical data

width × height × depth of the enclosure	75 × 125 × 125 mm
installation width × mounting height	75 mm × 225 mm
required spacing — top	50 mm
required spacing — bottom	50 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mounting	Yes
S7 rail mounting	No
wall mounting	No
housing can be lined up	Yes
net weight	0.9 kg

further information internet links

internet link — to website: Industry Online Support

https://support.industry.siemens.com

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6EP1353-2BA00PDF
