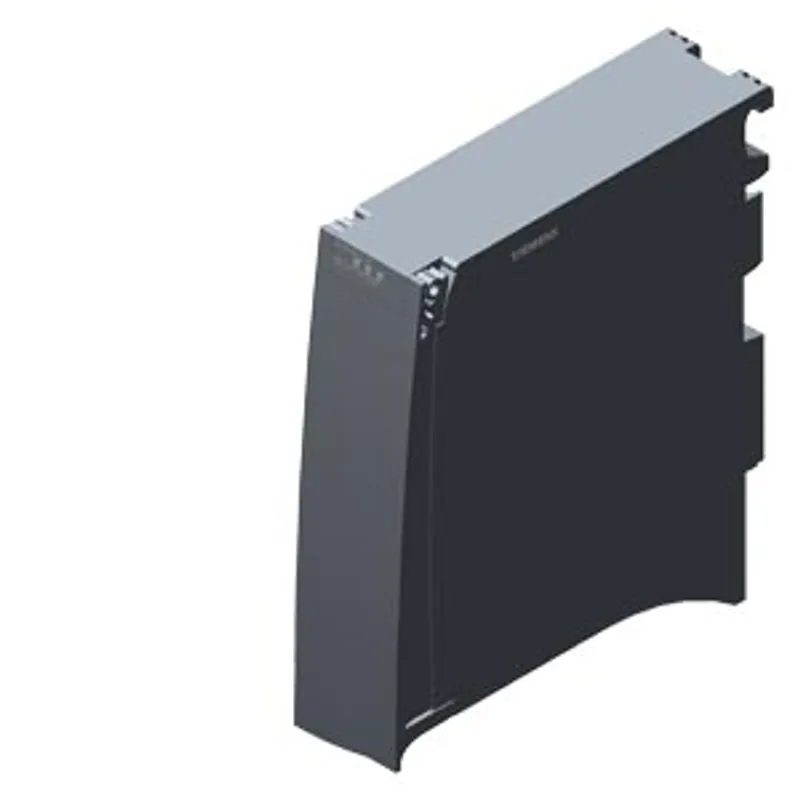

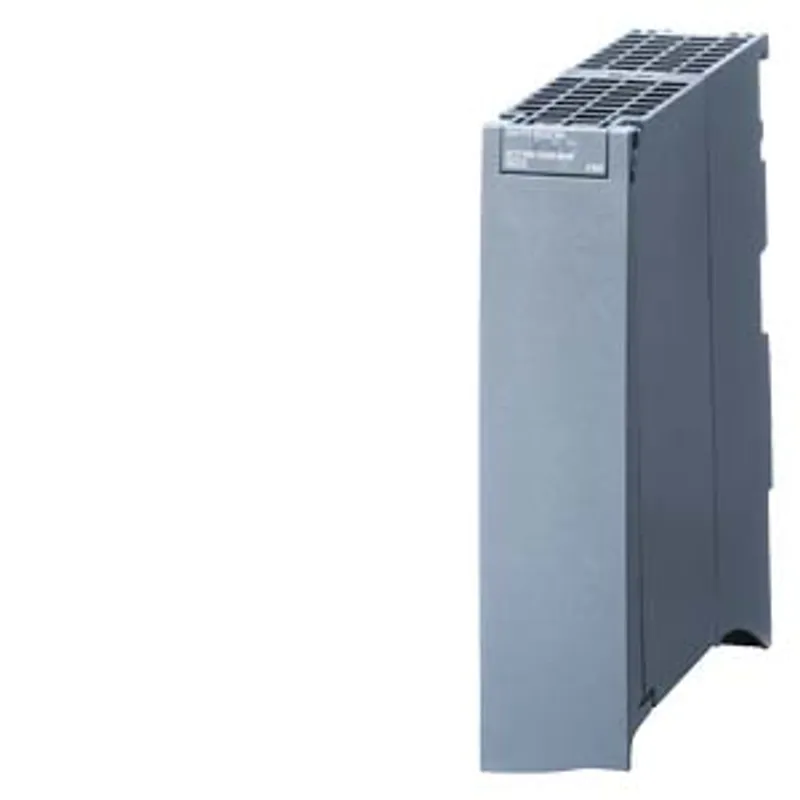

Siemens 6AG2541-1AD00-4AB0
SIPLUS S7-1500 CM PTP RS232 HF TX rail based on 6ES7541-1AD00-0AB0 with conformal coating, -40…+70 °C
- MPN
- 6AG2541-1AD00-4AB0
- Category
- SIPLUS extreme RAIL CM PtP
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG2541-1AD00-4AB0?
SIPLUS S7-1500 CM PTP RS232 HF TX rail based on 6ES7541-1AD00-0AB0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), communications module for serial connection RS-232, Freeport, 3964 (R), USS, MODBUS RTU master, slave, 115200 Kbit/s, 9-pin D-sub plug
Specifications
General information
| Product type designation | CM PtP RS 232 HF |
| based on | 6ES7541-1AD00-0AB0 |
| Product function — I&M data | Yes; I&M 0 |
| Product function — Fast startup | Yes |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | see entry ID: 109746275 |
Installation type/mounting
| Rail mounting | Yes; S7-1500 mounting rail |
Input current
| Current consumption (rated value) | 35 mA; From the backplane bus |
Power
| Power consumption from the backplane bus | 0.65 W |
Power loss
| Power loss, typ. | 0.6 W |
Address area
| Address space per module — Inputs | 8 byte |
Interface types
| RS 232 — Transmission rate, max. | 115.2 kbit/s |
| RS 232 — Cable length, max. | 15 m |
| RS 232 — RS 232 auxiliary signals | RTS, CTS, DTR, DSR, RI, DCD |
Protocols
| Integrated protocols — Freeport — Telegram length, max. | 4 kbyte |
| Integrated protocols — Freeport — Bits per character | 7 or 8 |
| Integrated protocols — Freeport — Number of stop bits | 1 or 2 bit |
| Integrated protocols — Freeport — Parity | None, even, odd, always 1, always 0, any |
| Integrated protocols — 3964 (R) — Telegram length, max. | 4 kbyte |
| Integrated protocols — 3964 (R) — Bits per character | 7 or 8 |
| Integrated protocols — 3964 (R) — Number of stop bits | 1 or 2 bit |
| Integrated protocols — 3964 (R) — Parity | None, even, odd, always 1, always 0, any |
| Integrated protocols — Modbus RTU master — Address area | 1 to 247, extended 1 to 65535 |
| Integrated protocols — Modbus RTU master — max. number of devices | 1 |
| Integrated protocols — Modbus RTU device — Address area | 1 to 247, extended 1 to 65535 |
| Telegram buffer — Buffer memory for telegrams | 8 kbyte |
| Telegram buffer — Number of telegrams which can be buffered | 255 |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Alarms — Hardware interrupt | No |
| Diagnoses — Wire break | Yes |
| Diagnostics indication LED — RUN LED | Yes; green LED |
| Diagnostics indication LED — ERROR LED | Yes; red LED |
| Diagnostics indication LED — Receive RxD | Yes; Yellow LED |
| Diagnostics indication LED — Transmit TxD | Yes; Yellow LED |
Potential separation
| between backplane bus and interface | Yes |
Isolation
| Isolation tested with | 750 V DC (type test) and according to EN 50155 (routine test) |
Standards, approvals, certificates
| Railway application — EN 50121-3-2 | Yes; EMC for rail vehicles |
| Railway application — EN 50121-4 | Yes; EMC for signal and telecommunications systems |
| Railway application — EN 50121-5 | Yes; EMC for fixed installations and railway power supply equipment (shielded cables required) |
| Railway application — EN 50124-1 | Yes; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0.5 kV; UNm = 24 V DC |
| Railway application — EN 50125-1 | Yes; Rail vehicles - see ambient conditions |
| Railway application — EN 50125-2 | Yes; Stationary electrical equipment - see ambient conditions |
| Railway application — EN 50125-3 | Yes; Signal and telecommunications systems - see ambient conditions; vibrations and shocks: Application point outside of tracks (1 m to 3 m away from track) |
| Railway application — EN 50155 | Yes; Rail vehicles - temperature class OT4, ST1/ST2, horizontal mounting position |
| Railway application — EN 61373 | Yes; Rail vehicles - vibrations and shocks: Category 1 Class A/B |
| Railway application — Fire protection acc. to EN 45545-2 | Yes; For proof of conformity, see Service & Support |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -40 °C; = Tmin (incl. condensation/frost) |
| Ambient temperature during operation — horizontal installation, max. | 70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155) |
| Ambient temperature during operation — vertical installation, min. | -40 °C; = Tmin |
| Ambient temperature during operation — vertical installation, max. | 40 °C; = Tmax |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation |
| Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants | Yes; Incl. diesel and oil droplets in the air |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to biologically active substances according to EN 60721-3-5 | Yes; Class 5B2 mold, fungus and dry rot spores (with the exception of fauna); Class 5B3 on request |
| Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to chemically active substances according to EN 60721-3-5 | Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to mechanically active substances according to EN 60721-3-5 | Yes; Class 5S3 incl. sand, dust; * |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Electronic equipment on rolling stock acc. to EN 50155 | Yes; Class PC2 protective coating acc. to EN 50155:2017 |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Decentralized operation
| to SIMATIC S7-300 | Yes |
| to SIMATIC S7-400 | Yes |
| to SIMATIC S7-1500 | Yes |
| to standard PROFINET controller | Yes |
Dimensions
| Width | 35 mm |
| Height | 147 mm |
| Depth | 127 mm |
Weights
| Weight, approx. | 0.22 kg |
Other
| Note: | for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776 |
