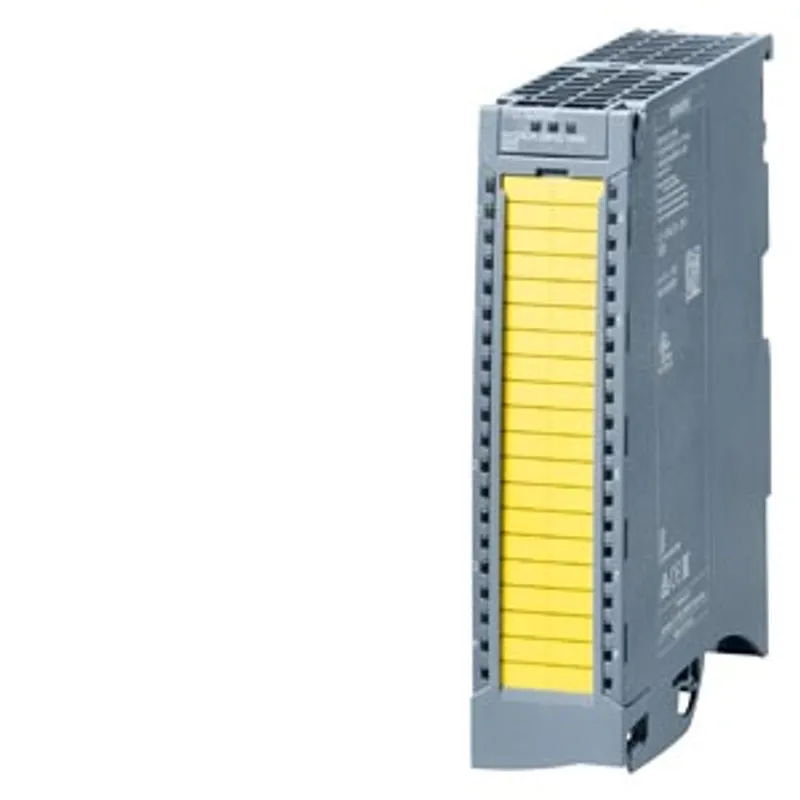

Siemens 6AG2526-2BF00-1AB0
SIPLUS S7-1500 F-DQ 8x24VDC 2A T1 rail based on 6ES7526-2BF00-0AB0 with conformal coating, -30…+60 °C
- MPN
- 6AG2526-2BF00-1AB0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG2526-2BF00-1AB0?
SIPLUS S7-1500 F-DQ 8x24VDC 2A T1 rail based on 6ES7526-2BF00-0AB0 with conformal coating, -30…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), F digital output module, 35 mm overall width; up to PL e (ISO 13849-1)/ SIL3 (IEC 61508)
Specifications
General information
| Product type designation | F-DQ 8x24VDC/2A PPM |
| Firmware version — FW update possible | Yes |
| based on | 6ES7526-2BF00-0AB0 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | see entry ID: 109746275 |
| Operating mode — DQ | Yes |
| Operating mode — MSO | No |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| power supply according to NEC Class 2 required | No |
Input current
| Current consumption (rated value) | 110 mA; without load |
| Current consumption, max. | 130 mA; without load |
Output voltage
| Rated value (DC) | 24 V |
Power
| Power consumption from the backplane bus | 0.8 W |
Power loss
| Power loss, typ. | 11 W |
Address area
| Address space per module — Inputs | 6 byte; S7-300/400F CPU, 5 byte |
| Address space per module — Outputs | 6 byte; S7-300/400F CPU, 5 byte |
Hardware configuration
| Automatic encoding | Yes |
| Automatic encoding — Electronic coding element type F | Yes |
Digital outputs
| Number of digital outputs | 8 |
| Current-sinking | Yes |
| Current-sourcing | Yes |
| Short-circuit protection | Yes |
| Open-circuit detection | Yes |
| Open-circuit detection — Response threshold, typ. | 8 mA |
| Overload protection | Yes |
| Overload protection — Response threshold, typ. | 2.9 A |
| Limitation of inductive shutdown voltage to | PM-switching: -24 V + (-47 V), PP-switching: -24 V |
| Controlling a digital input | Yes; digital output, according to IEC 61131-2, type 2 |
| Switching capacity of the outputs — with resistive load, max. | 2 A |
| Switching capacity of the outputs — on lamp load, max. | 10 W |
| Load resistance range — lower limit | 12 Ω |
| Load resistance range — upper limit | 2 000 Ω |
| Output voltage — for signal "1", min. | 24 V; L+ (-0.5 V) |
| Output current — for signal "1" rated value | 2 A |
| Output current — for signal "0" residual current, max. | 0.5 mA; Current-sourcing, or current sourcing and sinking switches individually, current sinking: max. 1 mA |
| Switching frequency — with resistive load, max. | 30 Hz |
| Switching frequency — with inductive load, max. | 0.1 Hz |
| Switching frequency — on lamp load, max. | 10 Hz |
| Total current of the outputs — Current per channel, max. | 2 A |
| Total current of the outputs (per module) — horizontal installation — up to 40 °C, max. | 16 A |
| Total current of the outputs (per module) — horizontal installation — up to 60 °C, max. | 8 A |
| Total current of the outputs (per module) — vertical installation — up to 40 °C, max. | 8 A |
| Cable length — shielded, max. | 1 000 m |
| Cable length — unshielded, max. | 500 m |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Substitute values connectable | No |
| Alarms — Diagnostic alarm | Yes |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | Yes |
| Diagnoses — short-circuit | Yes |
| Diagnoses — Group error | Yes |
| Diagnostics indication LED — RUN LED | Yes; green LED |
| Diagnostics indication LED — ERROR LED | Yes; red LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | Yes; red LED |
| Diagnostics indication LED — for module diagnostics | Yes; red LED |
Potential separation
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
Isolation
| Isolation tested with | 750 V DC (type test) and according to EN 50155 (routine test) |
Standards, approvals, certificates
| Suitable for safety functions | Yes |
| Highest safety class achievable in safety mode — Performance level according to ISO 13849-1 | PLe |
| Highest safety class achievable in safety mode — SIL acc. to IEC 61508 | SIL 3 |
| Highest safety class achievable in safety mode — SIL in accordance with EN 50126-1, 50129, 50159, 50716 | SIL 2; a higher safety integrity level is possible if tested and approved for the specific application under consideration of all local regulations. |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — Low demand mode: PFDavg in accordance with SIL3 | < 6.00E-05 |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — High demand/continuous mode: PFH in accordance with SIL3 | < 2.00E-09 1/h |
| Railway application — EN 50121-3-2 | Yes; EMC for rail vehicles |
| Railway application — EN 50121-4 | Yes; EMC for signal and telecommunications systems |
| Railway application — EN 50121-5 | Yes; EMC for fixed installations and railway power supply equipment (shielded cables required) |
| Railway application — EN 50124-1 | Yes; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0.5 kV; UNm = 24 V DC |
| Railway application — EN 50125-1 | Yes; Rail vehicles - see ambient conditions |
| Railway application — EN 50125-2 | Yes; Stationary electrical equipment - see ambient conditions |
| Railway application — EN 50125-3 | Yes; Signal and telecommunications systems - see ambient conditions; vibrations and shocks: Application point outside of tracks (1 m to 3 m away from track) |
| Railway application — EN 50155 | Yes; Rail vehicles - temperature class OT1, ST1/ST2, horizontal mounting position |
| Railway application — EN 61373 | Yes; Rail vehicles - vibrations and shocks: Category 1 Class A/B |
| Railway application — Fire protection acc. to EN 45545-2 | Yes; For proof of conformity, see Service & Support |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -30 °C; = Tmin (incl. condensation/frost) |
| Ambient temperature during operation — horizontal installation, max. | 60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155) |
| Ambient temperature during operation — vertical installation, min. | -30 °C; = Tmin |
| Ambient temperature during operation — vertical installation, max. | 40 °C; = Tmax |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation |
| Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants | Yes; Incl. diesel and oil droplets in the air |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to biologically active substances according to EN 60721-3-5 | Yes; Class 5B2 mold, fungus and dry rot spores (with the exception of fauna); Class 5B3 on request |
| Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to chemically active substances according to EN 60721-3-5 | Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to mechanically active substances according to EN 60721-3-5 | Yes; Class 5S3 incl. sand, dust; * |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Electronic equipment on rolling stock acc. to EN 50155 | Yes; Class PC2 protective coating acc. to EN 50155:2017 |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Dimensions
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
Weights
| Weight, approx. | 300 g |
Other
| Note: | for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776 |
