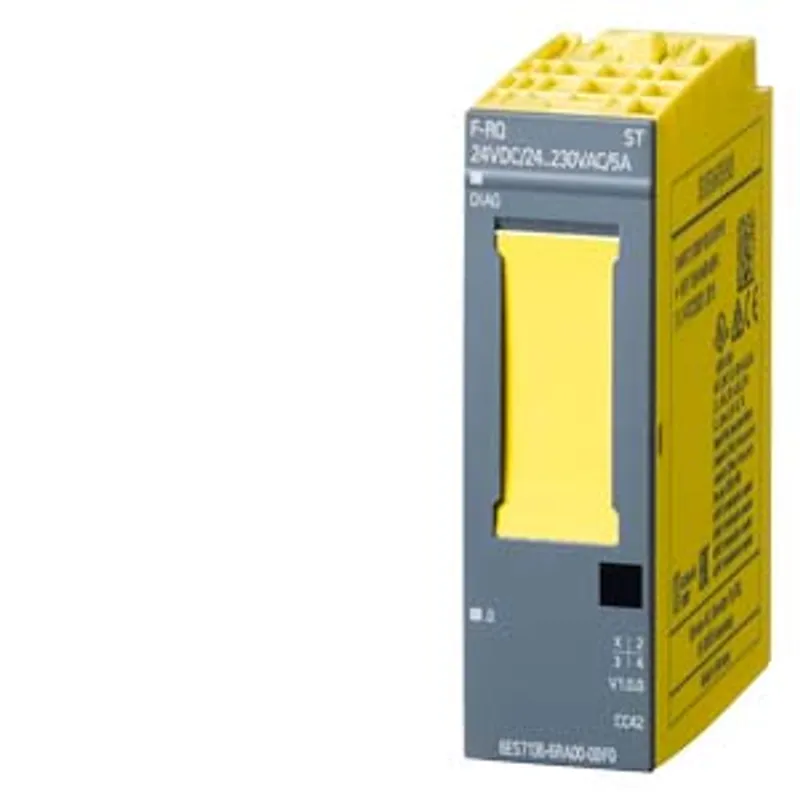

Siemens 6AG2136-6RA00-1BF0
SIPLUS ET 200SP F-RQ 24VDC230VAC/5A rail based on 6ES7136-6RA00-0BF0 with conformal coating, -30…+60 °C
- MPN
- 6AG2136-6RA00-1BF0
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG2136-6RA00-1BF0?
SIPLUS ET 200SP F-RQ 24VDC230VAC/5A rail based on 6ES7136-6RA00-0BF0 with conformal coating, -30…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), 20 mm overall width, 1 relay output (2 NO) summation output current 5 A, load voltage 24 V DC and 24 ... 230 V AC, can be used up to PL e (ISO 13849-1: 2008)/ SIL 3 (IEC 61508: 2010) if controlled by F-DQ (e.g. 6AG2136-6DB00-1CA0)
Specifications
General information
| Product type designation | F-RQ 1x24 V DC/24 ... 230 V AC/5 A |
| based on | 6ES7136-6RA00-0BF0 |
| usable BaseUnits | BU type F0 |
| Color code for module-specific color-coded label | CC42 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | see entry ID: 109746275 |
Supply voltage
| Rated value (DC) | 24 V; Coil voltage |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| power supply according to NEC Class 2 required | No |
Power
| Power consumption from the backplane bus | 100 mW |
Power loss
| Power loss, typ. | 1 W |
Address area
| Address space per module — Inputs | 1 byte |
Hardware configuration
| Automatic encoding | Yes |
| Automatic encoding — Mechanical coding element | Yes |
| Automatic encoding — Type of mechanical coding element | type C |
Digital outputs
| Type of digital output | Relays |
| Number of digital outputs | 1 |
| Limitation of inductive shutdown voltage to | No |
| Controlling a digital input | Yes |
| Switching capacity of the outputs — with resistive load, max. | 5 A |
| Switching capacity of the outputs — on lamp load, max. | 25 W |
| Switching frequency — with resistive load, max. | 2 Hz |
| Switching frequency — with inductive load, max. | 0.1 Hz; See data in manual |
| Switching frequency — with inductive load (acc. to IEC 60947-5-1, DC13), max. | 0.1 Hz |
| Switching frequency — with inductive load (acc. to IEC 60947-5-1, AC15), max. | 2 Hz |
| Total current of the outputs (per module) — horizontal installation — up to 40 °C, max. | 5 A; note derating data in the manual |
| Total current of the outputs (per module) — horizontal installation — up to 50 °C, max. | 4 A; note derating data in the manual |
| Total current of the outputs (per module) — horizontal installation — up to 60 °C, max. | 3 A; note derating data in the manual |
| Total current of the outputs (per module) — horizontal installation — up to 70 °C, max. | 3 A; note derating information in the manual; only with configured slots to the left and right of the module |
| Total current of the outputs (per module) — vertical installation — up to 50 °C, max. | 3 A; note derating data in the manual |
| Relay outputs — Number of relay outputs | 1; 2 NO contacts |
| Relay outputs — Rated supply voltage of relay coil L+ (DC) | 24 V |
| Relay outputs — Current consumption of relays (coil current of all relays), max. | 70 mA |
| Relay outputs — external protection for relay outputs | yes; 6 A, see data in manual |
| Relay outputs — Relay approved acc. to UL 508 | Yes; Pilot Duty B300, R300 |
| Relay outputs — Switching capacity of contacts — with inductive load, max. | see additional description in the manual |
| Relay outputs — Switching capacity of contacts — with resistive load, max. | see additional description in the manual |
| Relay outputs — Switching capacity of contacts — Thermal continuous current, max. | 5 A |
| Relay outputs — Switching capacity of contacts — Switching current, min. | 1 mA |
| Relay outputs — Switching capacity of contacts — Switching current after exceeding 300 mA, min. | 10 mA |
| Relay outputs — Switching capacity of contacts — Switching current after exceeding 300 mA, max. | 5 A |
| Relay outputs — Switching capacity of contacts — Rated switching voltage (DC) | 24 V |
| Relay outputs — Switching capacity of contacts — Rated switching voltage (AC) | 230 V |
| Cable length — shielded, max. | 500 m; for load contacts |
| Cable length — unshielded, max. | 300 m; for load contacts |
| Cable length — Control cable (input), max. | 10 m |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Diagnostics indication LED — RUN LED | Yes; green/red DIAG LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
Potential separation
| Potential separation channels — between the channels | Yes; for SELV / PELV only |
| Potential separation channels — between the channels and backplane bus | Yes |
| Potential separation channels — between the channels and the power supply of the electronics | Yes |
Permissible potential difference
| between channels and backplane bus/supply voltage | 250 V AC (reinforced insulation) |
Isolation
| Isolation tested with | 2 545 V DC (type test) and according to EN 50155 (routine test) |
| Overvoltage category | III (according to IEC/EN 61131-2:2007 and EN 298:2022), II (according to IEC 61131-2:2017 and IEC 61010-2-201) |
Standards, approvals, certificates
| Suitable for safety functions | Yes |
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 52 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 6.8 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 45.8 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.628 kg |
| Highest safety class achievable in safety mode — Performance level according to ISO 13849-1 | PLe |
| Highest safety class achievable in safety mode — Category according to ISO 13849-1 | 4 |
| Highest safety class achievable in safety mode — SIL acc. to IEC 61508 | SIL 3 |
| Highest safety class achievable in safety mode — SIL in accordance with EN 50126-1, 50129, 50159, 50716 | SIL 2; a higher safety integrity level is possible if tested and approved for the specific application under consideration of all local regulations. |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — Low demand mode: PFDavg in accordance with SIL2 | < 1.00E-04, function test 1x per year |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — Low demand mode: PFDavg in accordance with SIL3 | < 1.00E-05, function test 1x per month |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — High demand/continuous mode: PFH in accordance with SIL2 | < 1.00E-08 1/h, function test 1x per year |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — High demand/continuous mode: PFH in accordance with SIL3 | < 6.00E-09 1/h, function test 1x per month |
| Railway application — EN 50121-3-2 | Yes; EMC for rail vehicles |
| Railway application — EN 50121-4 | Yes; EMC for signal and telecommunications systems |
| Railway application — EN 50121-5 | Yes; EMC for fixed installations and railway power supply equipment (shielded cables required) |
| Railway application — EN 50124-1 | Yes; Railway applications - overvoltage category OV3; pollution degree PD2; UNm = 230 V AC |
| Railway application — EN 50125-1 | Yes; Rail vehicles - see ambient conditions |
| Railway application — EN 50125-2 | Yes; Stationary electrical equipment - see ambient conditions |
| Railway application — EN 50125-3 | Yes; Signal and telecommunications systems - see ambient conditions; vibrations and shocks: Application point outside of tracks (1 m to 3 m away from track) |
| Railway application — EN 50155 | Yes; Rail vehicles - temperature class OT1, ST1/ST2, horizontal mounting position |
| Railway application — EN 61373 | Yes; Rail vehicles - vibrations and shocks: Category 1 Class A/B |
| Railway application — Fire protection acc. to EN 45545-2 | Yes; For proof of conformity, see Service & Support |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -30 °C; = Tmin (incl. condensation/frost) |
| Ambient temperature during operation — horizontal installation, max. | 60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155); +70 °C continuously with spacing modules (6AG2193-6BN00-4BA0) or configured empty slots to the left and right of the module (OT3, ST1/ST2 acc. to EN 50155) |
| Ambient temperature during operation — vertical installation, min. | -30 °C; = Tmin |
| Ambient temperature during operation — vertical installation, max. | 50 °C; = Tmax |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation |
| Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants | Yes; Incl. diesel and oil droplets in the air |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to biologically active substances according to EN 60721-3-5 | Yes; Class 5B2 mold, fungus and dry rot spores (with the exception of fauna); Class 5B3 on request |
| Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to chemically active substances according to EN 60721-3-5 | Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to mechanically active substances according to EN 60721-3-5 | Yes; Class 5S3 incl. sand, dust; * |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Electronic equipment on rolling stock acc. to EN 50155 | Yes; Class PC2 protective coating acc. to EN 50155:2017 |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Dimensions
| Width | 20 mm |
| Height | 73 mm |
| Depth | 58 mm |
Weights
| Weight, approx. | 56 g |
Other
| Note: | for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776 |
