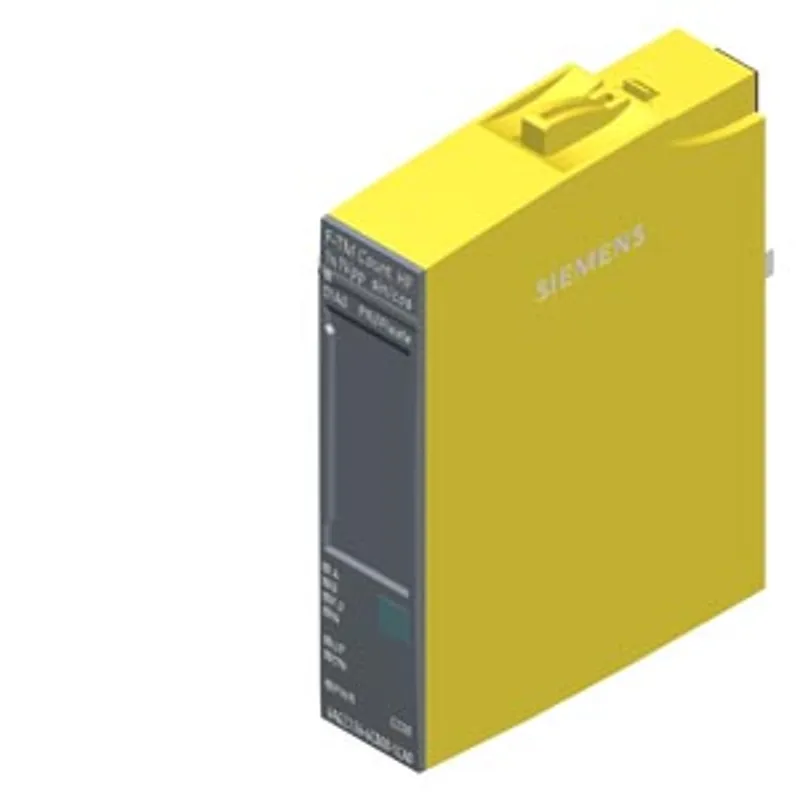

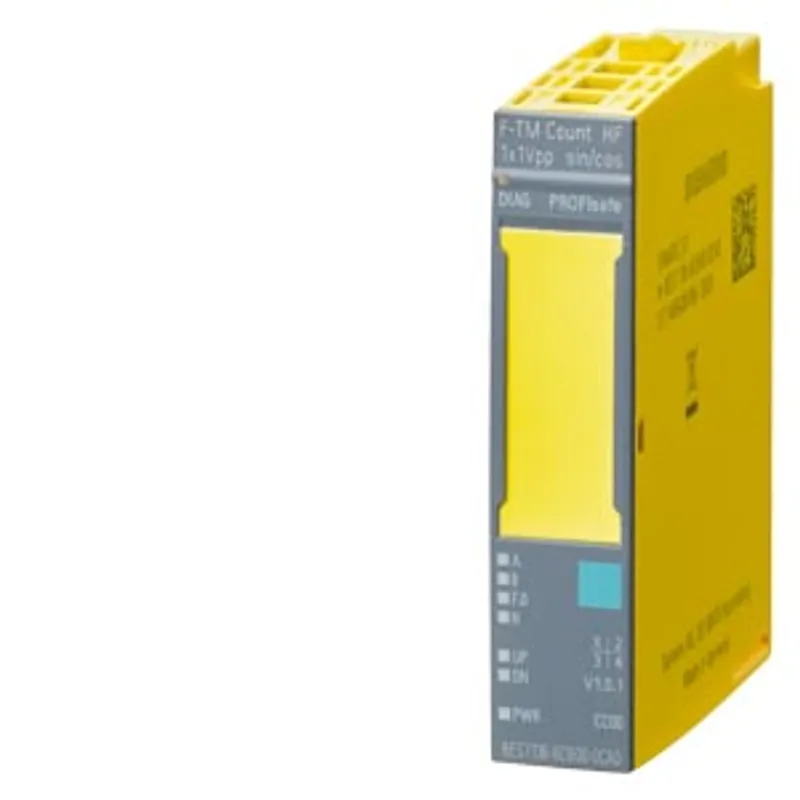

SIPLUS ET 200SP F-TM Count HF RAIL based on 6ES7136-6CB00-0CA0 with conformal coating OT1: -25...+55 °C…

MPN: 6AG2136-6CB00-1CA0
Category: SIPLUS extreme RAIL fail-safe technology modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

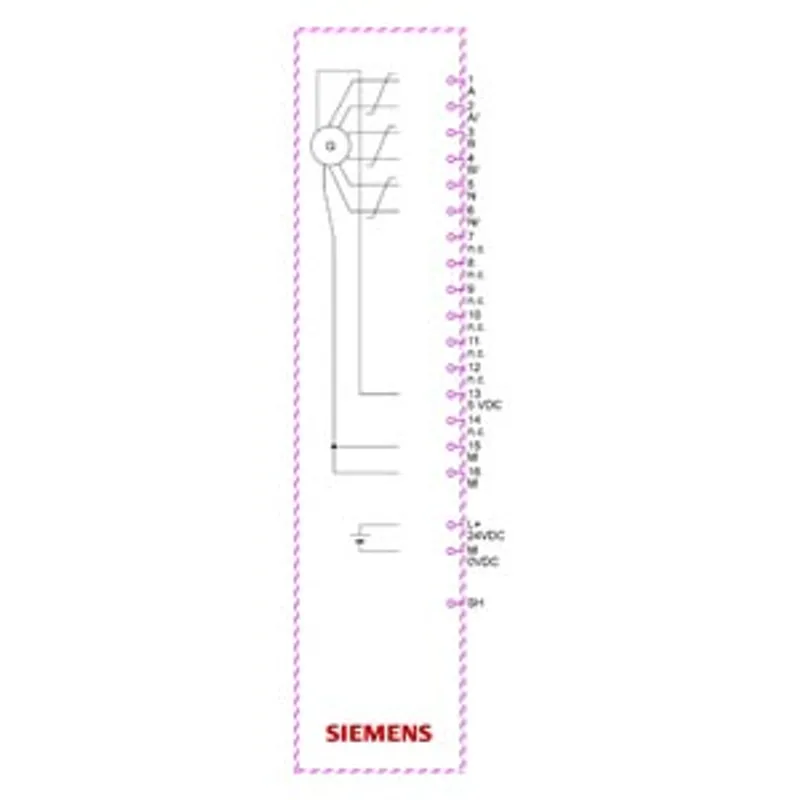

What is the Siemens 6AG2136-6CB00-1CA0?

SIPLUS ET 200SP F-TM Count HF RAIL based on 6ES7136-6CB00-0CA0 with conformal coating OT1: -25...+55 °C ST1/2: 70 °C for 10 minutes . 1x1 Vpp sin/cos HF, PROFIsafe, 1 channel, for incremental rotary encoders, sin/cos 1 Vpp, suitable for BU type A0, pack quantity: 1 unit

Specifications

General information

Product type designation	F-TM Count 1x1Vpp sin/cos HF
Firmware version — FW update possible	Yes
based on	6ES7136-6CB00-0CA0
usable BaseUnits	BU type A0
Color code for module-specific color-coded label	CC01
Product function — I&M data	Yes; I&M0 to I&M3
Engineering with — STEP 7 TIA Portal configurable/integrated from version	see entry ID: 109746275

Supply voltage

Rated value (DC)	24 V
power supply according to NEC Class 2 required	No
Load voltage L+ — Rated value (DC)	24 V
Load voltage L+ — permissible range, lower limit (DC)	20.4 V
Load voltage L+ — permissible range, upper limit (DC)	28.8 V
Load voltage L+ — Reverse polarity protection	Yes

Input current

Current consumption, max.

50 mA; without load, 150 mA with 300 mA encoder load

Encoder supply

5 V encoder supply — 5 V	Yes; 5.1 V ±3.5 %
5 V encoder supply — Short-circuit protection	Yes; Electronic overload protection; no protection on applying a normal or counter voltage.
5 V encoder supply — Output current, max.	300 mA

Power loss

Power loss, typ.

1.25 W

Address area

Address space per module — Inputs	14 byte; S7-300/400F CPU, 13 byte
Address space per module — Outputs	5 byte; S7-300/400F CPU, 4 byte

Hardware configuration

Automatic encoding	Yes
Automatic encoding — Electronic coding element type H	Yes

Digital inputs

Number of digital inputs	1; (counter input)
Digital inputs, parameterizable	Yes
Digital input functions, parameterizable — Gate start/stop	Yes
Digital input functions, parameterizable — Counter for incremental encoder	Yes
Digital input functions, parameterizable — Counter for incremental encoder — Number, max.	1
Input voltage — Type of input voltage	sin/cos 1 Vpp
Input delay (for rated value of input voltage) — Minimum pulse width for program reactions	2.5 µs
Input delay (for rated value of input voltage) — for technological functions — Parameterizable	Yes
Cable length — shielded, max.	150 m

Encoder

Connectable encoders — Incremental encoder (symmetrical)	Yes; up to 200 kHz depending on cable type and length
Encoder signals, incremental encoder (symmetrical) — Input voltage	1 Vpp, centered at 2.5 V offset
Encoder signals, incremental encoder (symmetrical) — Input frequency, max.	200 kHz
Encoder signals, incremental encoder (symmetrical) — Counting frequency, max.	800 kHz; with quadruple evaluation
Encoder signals, incremental encoder (symmetrical) — Cable length, shielded, max.	150 m
Encoder signals, incremental encoder (symmetrical) — Incremental encoder with A/B tracks, 90° phase offset	Yes; sin/cos
Encoder signals, incremental encoder (symmetrical) — Incremental encoder with A/B tracks, 90° phase offset and zero track	Yes; sin/cos/zero

Interfaces

Number of RS 485 interfaces

Interrupts/diagnostics/status information

Diagnostics function	Yes; see chapter "Diagnostic Messages" in the manual
Alarms — Diagnostic alarm	Yes
Alarms — Hardware interrupt	No
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Wire break	Yes
Diagnoses — Short-circuit	Yes
Diagnoses — A/B transition error at incremental encoder	Yes
Diagnostics indication LED — RUN LED	Yes; green LED
Diagnostics indication LED — ERROR LED	Yes; red LED
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green LED
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	Yes; red LED
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Integrated Functions

Counter	Yes
Counter — Number of counters	1
Counter — Counting frequency, max.	800 kHz; with quadruple evaluation
Safety monitoring functions — Safe Operating Stop (SOS)	Yes
Safety monitoring functions — Safely-Limited Speed (SLS)	Yes
Safety monitoring functions — Safe Direction (SDI)	Yes
Safety monitoring functions — Safe Speed Monitor (SSM)	Yes
Counting functions — Continuous counting	Yes
Counting functions — Counter response parameterizable	Yes
Counting functions — Software gate	Yes
Counting functions — Counting range, parameterizable	Yes
Measuring functions — Measuring range — Frequency measurement, min.	0.04 Hz
Measuring functions — Measuring range — Frequency measurement, max.	800 kHz; with quadruple evaluation
Measuring functions — Measuring range — Cycle duration measurement, min.	1 µs
Measuring functions — Measuring range — Cycle duration measurement, max.	25 s
Measuring functions — Measuring range — Velocity measurement, min.	0 (speed in configured units per selected time basis - speed*1 000)
Measuring functions — Measuring range — Velocity measurement, max.	2 147 483 (speed in configured units per selected time basis - speed*1 000)
Measuring functions — Accuracy — Frequency measurement	up to 100 ppm; depending on measuring interval and signal evaluation; at low frequency external noise may have an effect on accuracy (reference the graph in 2.2.3)
Measuring functions — Accuracy — Cycle duration measurement	up to 100 ppm; depending on measuring interval and signal evaluation; at low frequency external noise may have an effect on accuracy (reference the graph in 2.2.3)
Measuring functions — Accuracy — Velocity measurement	up to 100 ppm; depending on measuring interval and signal evaluation; at low frequency external noise may have an effect on accuracy (reference the graph in 2.2.3)

Potential separation

Potential separation channels — between the channels	No; Only one channel is available
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — Between the channels and load voltage L+	No
Potential separation channels — between the channels and the power supply of the electronics	No

Isolation

Isolation tested with

750 V DC (type test) and according to EN 50155 (routine test)

Standards, approvals, certificates

Suitable for safety functions	Yes
Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	88.3 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	13.1 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	76.6 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-1.37 kg
Highest safety class achievable in safety mode — Performance level according to ISO 13849-1	Cat. 4, PLe
Highest safety class achievable in safety mode — SIL acc. to IEC 61508	SIL 3
Highest safety class achievable in safety mode — SIL in accordance with EN 50126-1, 50129, 50159, 50716	SIL 2; a higher safety integrity level is possible if tested and approved for the specific application under consideration of all local regulations.
Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — low demand mode: PFDavg in accordance with SIL1	< 2.00E-03 signal monitoring disabled
Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — Low demand mode: PFDavg in accordance with SIL3	< 3.00E-05
Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — high demand/continuous mode: PFH in accordance with SIL1	< 3.00E-08 1/h signal monitoring disabled
Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — High demand/continuous mode: PFH in accordance with SIL3	< 1.00E-09 1/h
Railway application — EN 50121-3-2	Yes; EMC for rail vehicles
Railway application — EN 50121-4	Yes; EMC for signal and telecommunications systems
Railway application — EN 50121-5	Yes; EMC for fixed installations and railway power supply equipment
Railway application — EN 50124-1	Yes; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0.5 kV; UNm = 24 V DC
Railway application — EN 50125-1	Yes; Rail vehicles - see ambient conditions
Railway application — EN 50125-2	Yes; Stationary electrical equipment - see ambient conditions
Railway application — EN 50125-3	Yes; Signal and telecommunications systems - see ambient conditions; vibrations and shocks: Application point outside of tracks (1 m to 3 m away from track)
Railway application — EN 50155	Yes; Rail vehicles - temperature class OT1, ST1/ST2, horizontal mounting position
Railway application — EN 61373	Yes; Rail vehicles - vibrations and shocks: Category 1 Class A/B
Railway application — Fire protection acc. to EN 45545-2	Yes; For proof of conformity, see Service & Support

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-25 °C; = Tmin (incl. condensation/frost)
Ambient temperature during operation — horizontal installation, max.	60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155); +70 °C continuously with spacing modules (6AG2193-6BN00-4BA0) or configured empty slots to the left and right of the module (OT3, ST1/ST2 acc. to EN 50155)
Ambient temperature during operation — vertical installation, min.	-25 °C; = Tmin
Ambient temperature during operation — vertical installation, max.	55 °C; = Tmax
Altitude during operation relating to sea level — Installation altitude above sea level, max.	2 000 m
Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude	Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m)
Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max.	100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation
Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants	Yes; Incl. diesel and oil droplets in the air
Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3	Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3	Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3	Yes; Class 3S4 incl. sand, dust, *
Resistance — Use in stationary industrial systems — Against mechanical environmental conditions acc. to EN 60721-3-3	Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to biologically active substances according to EN 60721-3-5	Yes; Class 5B2 mold, fungus and dry rot spores (with the exception of fauna); Class 5B3 on request
Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to chemically active substances according to EN 60721-3-5	Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to mechanically active substances according to EN 60721-3-5	Yes; Class 5S3 incl. sand, dust; *
Resistance — Use on land craft, rail vehicles and special-purpose vehicles — Against mechanical environmental conditions acc. to EN 60721-3-5	Yes; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Resistance — Use on land craft, rail vehicles and special-purpose vehicles — against mechanical environmental conditions in agriculture acc. to ISO 15003	Yes; Level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4	Yes; Class 3 (excluding trichlorethylene)
Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04	Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04	* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086	Yes; Class 2 for high reliability
Conformal coating — Protection against fouling acc. to EN 60664-3	Yes; Type 1 protection
Conformal coating — Electronic equipment on rolling stock acc. to EN 50155	Yes; class PC2 protective coating acc. to EN 50155
Conformal coating — Military testing according to MIL-I-46058C, Amendment 7	Yes; Discoloration of coating possible during service life
Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A	Yes; Conformal coating, Class A

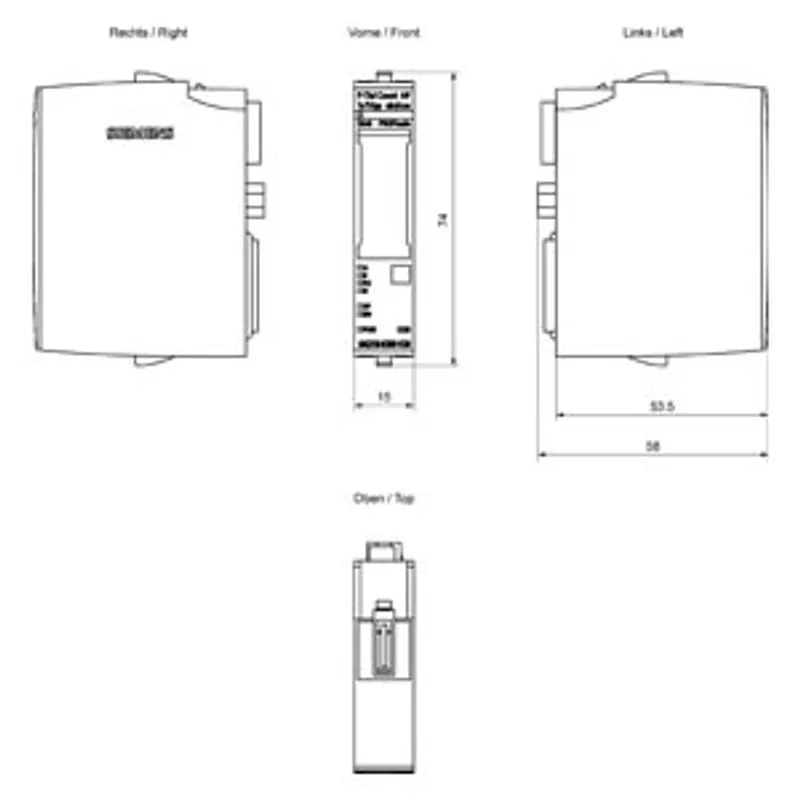

Dimensions

Width	15 mm
Height	73 mm
Depth	58 mm

Weights

Weight, approx.

42 g

Other

Note:

for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
