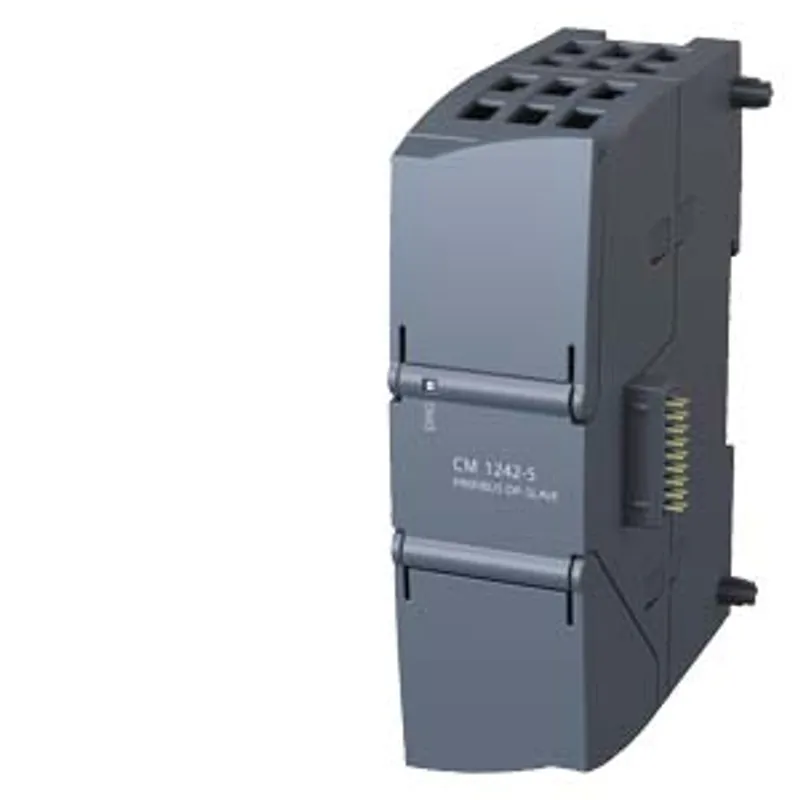

Siemens 6AG2242-5DX30-1XE0
SIPLUS S7-1200 CM 1242-5 T1 rail based on 6GK7242-5DX30-0XE0 with conformal coating, -25…+55 °C
- MPN
- 6AG2242-5DX30-1XE0
- Category
- SIPLUS S7-1200 CM 1242-5 RAIL
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG2242-5DX30-1XE0?
SIPLUS S7-1200 CM 1242-5 T1 rail based on 6GK7242-5DX30-0XE0 with conformal coating, -25…+55 °C, OT1 with ST1/2 (+70 °C für 10 minutes), communications module CM 1242-5, for connecting S7-1200 to PROFIBUS as DP slave module
Specifications
General
| product brand name | SIPLUS |
| Technical Product Detail Page | https://i.siemens.com/1P6AG2242-5DX30-1XE0 |
transfer rate
| transfer rate — at the 1st interface / according to PROFIBUS | 9.6 kbit/s ... 12 Mbit/s |
interfaces
| number of interfaces / according to Industrial Ethernet | 0 |
| number of electrical connections — at the 1st interface / according to PROFIBUS | 1 |
| number of electrical connections — for power supply | 0 |
| type of electrical connection — at the 1st interface / according to PROFIBUS | 9-pin Sub-D socket (RS485) |
supply voltage, current consumption, power loss
| type of voltage / of the supply voltage | DC |
| supply voltage / 1 / from backplane bus | 5 V |
| consumed current — from backplane bus / at DC / at 5 V / typical | 0.15 A |
| power loss [W] | 0.75 W |
ambient conditions
| ambient temperature — during operation | -25 ... +55 °C |
| ambient temperature — during storage | -40 ... +70 °C |
| ambient temperature — during transport | -40 ... +70 °C |
| ambient temperature — note | +70 °C for 10 min (OT1, ST1/ST2 according to EN 50155) |
| installation altitude / at height above sea level / maximum | 2000 m |
| ambient condition / relating to ambient temperature - air pressure - installation altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| relative humidity — with condensation / according to IEC 60068-2-38 / maximum | 100 %; RH including condensation/frost (no commissioning when condensation is present), horizontal installation |
| chemical resistance / to commercially available cooling lubricants | Yes; incl. airborne diesel and oil droplets |
| resistance to biologically active substances — conformity according to EN 60721-3-3 | Yes; Class 3B2 mold and fungal spores (excluding fauna), Class 3B3 on request |
| resistance to biologically active substances — conformity according to EN 60721-3-5 | Yes; Class 5B2 mold and fungal spores (excluding fauna), Class 5B3 on request |
| resistance to chemically active substances — conformity according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation. |
| resistance to chemically active substances — conformity according to EN 60721-3-5 | Yes; Class 5C3 (RH < 75%) including salt spray acc. to EN 60068-2-52 (Severity level 3). The supplied plug covers must remain in place over the unused interfaces during operation! |
| resistance to mechanically active substances — conformity according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation. |
| resistance to mechanically active substances — conformity according to EN 60721-3-5 | Yes; Class 5S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation! |
| coating / for equipped printed circuit board / according to EN 61086 | Yes; Class 2 for high availability |
| type of coating / protection against pollution according to EN 60664-3 | Yes; Protection of the type 1 |
| type of coating / for electronic devices in railway applications according to EN 50155 | Yes; Protective coating of the Class PC2 according to EN 50155:2017 |
| type of test / of the coating / according to MIL-I-46058C | Yes; Coating discoloration during service life possible |
| product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, class A |
| protection class IP | IP20 |
design, dimensions and weights
| module format | Compact module S7-1200 single width |
| width | 30 mm |
| height | 100 mm |
| depth | 75 mm |
| net weight | 0.115 kg |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — S7-300 rail mounting | No |
| fastening method — wall mounting | Yes |
product features, product functions, product components / general
| number of units — per CPU / maximum | 3 |
performance data / PROFIBUS DP
| service / as DP device — DPV0 | Yes |
| service / as DP device — DPV1 | Yes |
| data volume — of the address range of the inputs / as DP device / total | 240 byte |
| data volume — of the address range of the outputs / as DP device / total | 240 byte |
performance data / telecontrol
| protocol / is supported — TCP/IP | No |
product functions / management, configuration, engineering
| configuration software — required | #NO_DATA |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
product functions / position detection
| certificate of suitability / railway application in accordance with EN 50121-3-2 | Yes; EMC for railway vehicles |
| certificate of suitability / railway application in accordance with EN 50121-4 | Yes; EMC for signaling and telecommunications equipment |
| certificate of suitability / railway application in accordance with EN 50124-1 | Yes; Railway applications - Overvoltage category OV2 pollution degree PD2 rated impulse voltage UNi = 0.5 kVUNm = DC 24 |
| certificate of suitability / railway application in accordance with EN 50125-1 | Yes; Railway vehicles - See ambient conditions |
| certificate of suitability / railway application in accordance with EN 50125-2 | Yes; Fixed-electrical installations - see ambient conditions |
| certificate of suitability / railway application in accordance with EN 50125-3 | Yes; Signal and telecommunications equipment - see Ambient conditions vibrations and shocks: Application point outside the rails (distance 1 m to 3 m from rail) |
| certificate of suitability / railway application in accordance with EN 50155 | Yes; Railway vehicles - temperature class OT1, ST1/ST2, horizontal mounting position |
| certificate of suitability / railway application in accordance with EN 61373 | Yes; Railway vehicles - Vibrations and shocks Category 1 Class A/B |
| certificate of suitability / fire protection in accordance with EN 45545-2 | Yes; Railway vehicles - for proof, see Service & Support |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6AG2242-5DX30-1XE0: frequently asked questions
When can 6AG2242-5DX30-1XE0 be shipped?
6AG2242-5DX30-1XE0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6AG2242-5DX30-1XE0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6AG2242-5DX30-1XE0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG2242-5DX30-1XE0, subject to availability and destination.
