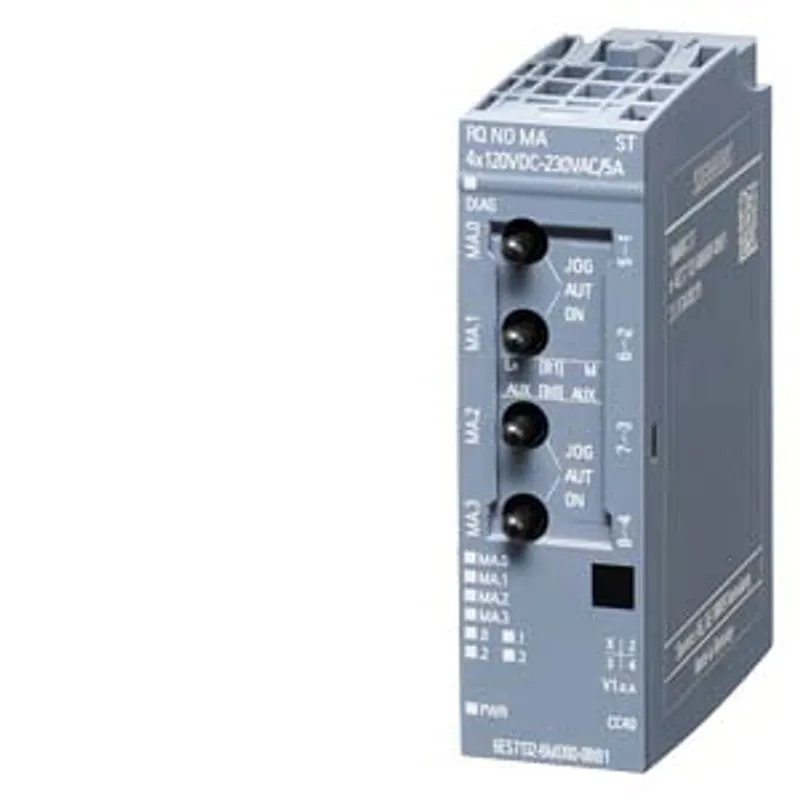

Siemens 6AG2132-6MD00-4BB1

Q: When can 6AG2132-6MD00-4BB1 be shipped?

6AG2132-6MD00-4BB1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 6AG2132-6MD00-4BB1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 6AG2132-6MD00-4BB1 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG2132-6MD00-4BB1, subject to availability and destination.

SIPLUS ET 200SP RQ 4x120/230V MA TX rail based on 6ES7132-6MD00-0BB1 with conformal coating, -40…+70 °C

MPN: 6AG2132-6MD00-4BB1
Category: SIPLUS extreme RAIL digital outputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6AG2132-6MD00-4BB1?

SIPLUS ET 200SP RQ 4x120/230V MA TX rail based on 6ES7132-6MD00-0BB1 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), relay module normally open, suitable for BU type B0 or B1, module diagnostics with manual operation

Specifications

General information

Product type designation	RQ 4x120 V DC ... 230 V AC/5 A NO MA ST
Firmware version — FW update possible	Yes
based on	6ES7132-6MD00-0BB1
usable BaseUnits	BU type B0, B1
Color code for module-specific color-coded label	CC40
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Isochronous mode	No
Engineering with — STEP 7 TIA Portal configurable/integrated from version	see entry ID: 109746275
Operating mode — DQ	Yes
Operating mode — DQ with energy-saving function	No
Operating mode — PWM	No
Operating mode — Oversampling	No
Operating mode — MSO	No

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption, max.

100 mA; without load

Power loss

Power loss, typ.

1.5 W

Address area

Address space per module — Inputs	1 byte; + 1 byte for QI information
Address space per module — Outputs	1 byte

Hardware configuration

Automatic encoding	Yes
Automatic encoding — Mechanical coding element	Yes
Automatic encoding — Type of mechanical coding element	type C
Selection of BaseUnit for connection variants — 2-wire connection	BU type B1
Selection of BaseUnit for connection variants — 3-wire connection	BU type B0

Digital outputs

Type of digital output	Relays
Number of digital outputs	4
Current-sinking	Yes
Current-sourcing	Yes
Digital outputs, parameterizable	Yes
Short-circuit protection	No
Switching frequency — with resistive load, max.	2 Hz
Switching frequency — with inductive load, max.	0.5 Hz
Switching frequency — with inductive load (acc. to IEC 60947-5-1, DC13), max.	0.5 Hz; provide one freewheeling diode for switching frequencies higher than 0.1 Hz
Switching frequency — with inductive load (acc. to IEC 60947-5-1, AC15), max.	0.5 Hz
Switching frequency — on lamp load, max.	2 Hz
Total current of the outputs — Current per channel, max.	5 A
Total current of the outputs — Current per module, max.	20 A
Total current of the outputs (per module) — horizontal installation — up to 50 °C, max.	20 A
Total current of the outputs (per module) — horizontal installation — up to 60 °C, max.	16 A
Total current of the outputs (per module) — horizontal installation — up to 70 °C, max.	12 A
Total current of the outputs (per module) — vertical installation — up to 40 °C, max.	20 A
Total current of the outputs (per module) — vertical installation — up to 50 °C, max.	16 A
Relay outputs — Number of relay outputs	4
Relay outputs — Rated supply voltage of relay coil L+ (DC)	24 V
Relay outputs — Current consumption of relays (coil current of all relays), max.	40 mA
Relay outputs — external protection for relay outputs	Yes, with 6A
Relay outputs — Number of operating cycles, max.	7 000 000; see additional description in the manual
Relay outputs — Switching capacity of contacts — with inductive load, max.	2 A; see additional description in the manual
Relay outputs — Switching capacity of contacts — with resistive load, max.	5 A; see additional description in the manual
Relay outputs — Switching capacity of contacts — Thermal continuous current, max.	5 A
Relay outputs — Switching capacity of contacts — Switching current, min.	100 mA; 5 V DC
Relay outputs — Switching capacity of contacts — Rated switching voltage (DC)	24 V DC to 120 V DC
Relay outputs — Switching capacity of contacts — Rated switching voltage (AC)	24V AC to 230V AC
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	200 m

Interrupts/diagnostics/status information

Diagnostics function	Yes
Substitute values connectable	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Wire break	No
Diagnoses — Short-circuit	No
Diagnoses — Group error	Yes
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	No
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Potential separation

Potential separation channels — between the channels	Yes
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — between the channels and the power supply of the electronics	Yes

Permissible potential difference

between channels and backplane bus/supply voltage

240 V AC

Isolation

Isolation tested with	2 545 V DC (type test) and according to EN 50155 (routine test)
tested with — between channels and backplane bus/supply voltage	2 545 V DC (type test) and according to EN 50155 (routine test)
tested with — between backplane bus and supply voltage	750 V DC (type test) and according to EN 50155 (routine test)

Standards, approvals, certificates

Suitable for safety functions	No
Railway application — EN 50121-3-2	Yes; EMC for rail vehicles
Railway application — EN 50121-4	Yes; EMC for signal and telecommunications systems
Railway application — EN 50121-5	Yes; EMC for fixed installations and railway power supply equipment (shielded cables required)
Railway application — EN 50124-1	Yes; Railway applications - overvoltage category OV3; pollution degree PD2; UNm = 230 V AC
Railway application — EN 50125-1	Yes; Rail vehicles - see ambient conditions
Railway application — EN 50125-2	Yes; Stationary electrical equipment - see ambient conditions
Railway application — EN 50125-3	Yes; Signal and telecommunications systems - see ambient conditions; vibrations and shocks: Application point outside of tracks (1 m to 3 m away from track)
Railway application — EN 50155	Yes; Rail vehicles - temperature class OT4, ST1/ST2, horizontal mounting position
Railway application — EN 61373	Yes; Rail vehicles - vibrations and shocks: Category 1 Class A/B
Railway application — Fire protection acc. to EN 45545-2	Yes; For proof of conformity, see Service & Support

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-40 °C; = Tmin (incl. condensation/frost)
Ambient temperature during operation — horizontal installation, max.	70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Ambient temperature during operation — vertical installation, min.	-40 °C; = Tmin
Ambient temperature during operation — vertical installation, max.	50 °C; = Tmax
Altitude during operation relating to sea level — Installation altitude above sea level, max.	2 000 m
Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude	Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m)
Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max.	100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation
Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants	Yes; Incl. diesel and oil droplets in the air
Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3	Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3	Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3	Yes; Class 3S4 incl. sand, dust, *
Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to biologically active substances according to EN 60721-3-5	Yes; Class 5B2 mold, fungus and dry rot spores (with the exception of fauna); Class 5B3 on request
Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to chemically active substances according to EN 60721-3-5	Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to mechanically active substances according to EN 60721-3-5	Yes; Class 5S3 incl. sand, dust; *
Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4	Yes; Class 3 (excluding trichlorethylene)
Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04	Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04	* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086	Yes; Class 2 for high reliability
Conformal coating — Protection against fouling acc. to EN 60664-3	Yes; Type 1 protection
Conformal coating — Electronic equipment on rolling stock acc. to EN 50155	Yes; Class PC2 protective coating acc. to EN 50155:2017
Conformal coating — Military testing according to MIL-I-46058C, Amendment 7	Yes; Discoloration of coating possible during service life
Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A	Yes; Conformal coating, Class A

Dimensions

Width	20 mm
Height	73 mm
Depth	58 mm

Weights

Weight, approx.

45 g

Other

Note:

for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
