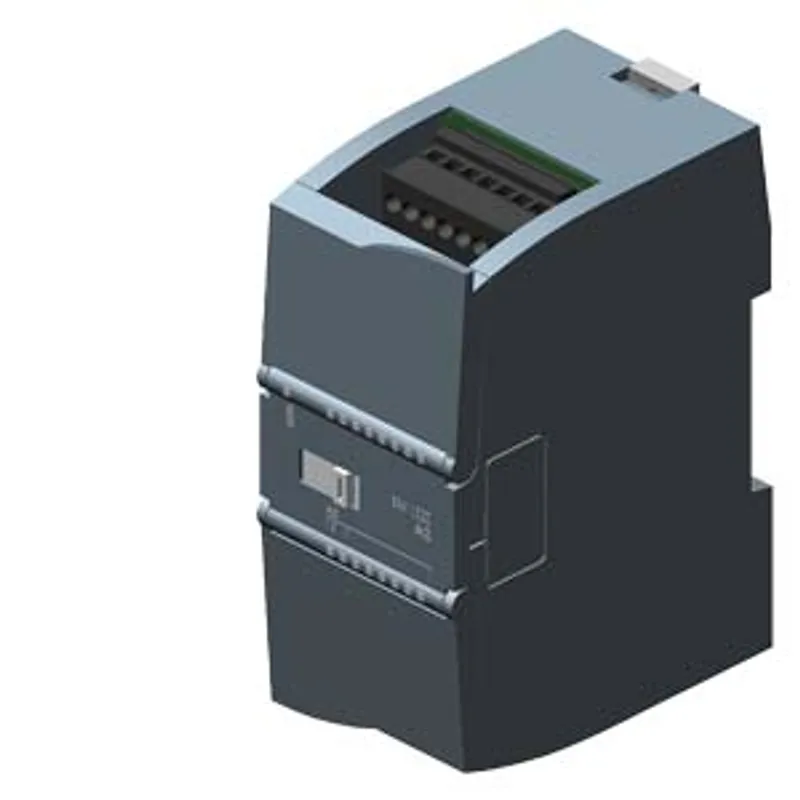

Siemens 6AG1232-4HB32-4XB0
SIPLUS S7-1200 SM 1232 2AQ based on 6ES7232-4HB32-0XB0 with conformal coating, -20…+60 °C
- MPN
- 6AG1232-4HB32-4XB0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1232-4HB32-4XB0?
SIPLUS S7-1200 SM 1232 2AQ based on 6ES7232-4HB32-0XB0 with conformal coating, -20…+60 °C, analog output +/-10 V: 14-bit resolution or 0-20 mA: 13-bit resolution
Specifications
General information
| Product type designation | SM 1232, AQ 2x14 bit |
| based on | 6ES7232-4HB32-0XB0 |
Supply voltage
| Rated value (DC) | 24 V |
Input current
| Current consumption, typ. | 45 mA |
| from backplane bus 5 V DC, typ. | 80 mA |
Power loss
| Power loss, typ. | 1.5 W |
Analog outputs
| Number of analog outputs | 2; Current or voltage |
| Output ranges, voltage — 10 V to +10 V | Yes |
| Output ranges, current — 0 to 20 mA | Yes |
| Load impedance (in rated range of output) — with voltage outputs, min. | 1 000 Ω |
| Load impedance (in rated range of output) — with current outputs, max. | 600 Ω |
| Cable length — shielded, max. | 100 m; shielded, twisted pair |
Analog value generation for the outputs
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 14 bit; Voltage: 14 bit; Current : 13 bit |
Errors/accuracies
| Temperature error (relative to output range), (+/-) | 25 °C ±0.3%, to 55 °C ±0.6% total measurement range |
| Basic error limit (operational limit at 25 °C) — Voltage, relative to output range, (+/-) | 0.3 % |
| Basic error limit (operational limit at 25 °C) — Current, relative to output range, (+/-) | 0.3 % |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode voltage, max. | 12 V |
Interrupts/diagnostics/status information
| Alarms | Yes |
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | Yes |
| Diagnoses — Short-circuit | Yes |
| Diagnostics indication LED — for status of the outputs | Yes |
| Diagnostics indication LED — for maintenance | Yes |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 36.4 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 7.46 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 29.1 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.18 kg |
Ambient conditions
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation — min. | -20 °C; = Tmin (incl. condensation/frost); start-up @ 0 °C |
| Ambient temperature during operation — max. | 60 °C; = Tmax |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning under condensation conditions) |
| Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants | Yes; Incl. diesel and oil droplets in the air |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request |
| Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Connection method
| required front connector | Yes |
Mechanics/material
| Enclosure material (front) — Plastic | Yes |
Dimensions
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
Weights
| Weight, approx. | 180 g |
