SIPLUS SM 1232 analog output modules Parts
Compare SIPLUS SM 1232 analog output modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | based on | Number of analog outputs | Ambient temperature during operation — max. |
|---|---|---|---|---|
| 6AG1232-4HD32-4XB0 | SM 1232, AQ 4x14 bit | 6ES7232-4HD32-0XB0 | 4; Current or voltage | 60 °C; = Tmax |

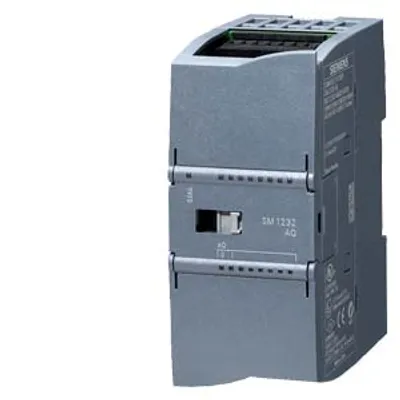

| 6AG1232-4HD32-2XB0 | SM 1232, AQ 4x14 bit | 6ES7232-4HD32-0XB0 | 4; Current or voltage | 70 °C; = Tmax |

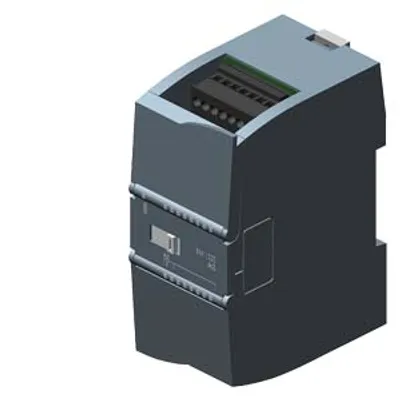

| 6AG1232-4HB32-4XB0 | SM 1232, AQ 2x14 bit | 6ES7232-4HB32-0XB0 | 2; Current or voltage | 60 °C; = Tmax |
Common to all listed parts
| Rated value (DC) | 24 V |
| Current consumption, typ. | 45 mA |
| from backplane bus 5 V DC, typ. | 80 mA |
| Power loss, typ. | 1.5 W |
| Output ranges, voltage — 10 V to +10 V | Yes |
| Output ranges, current — 0 to 20 mA | Yes |
| Load impedance (in rated range of output) — with voltage outputs, min. | 1 000 Ω |
| Load impedance (in rated range of output) — with current outputs, max. | 600 Ω |
