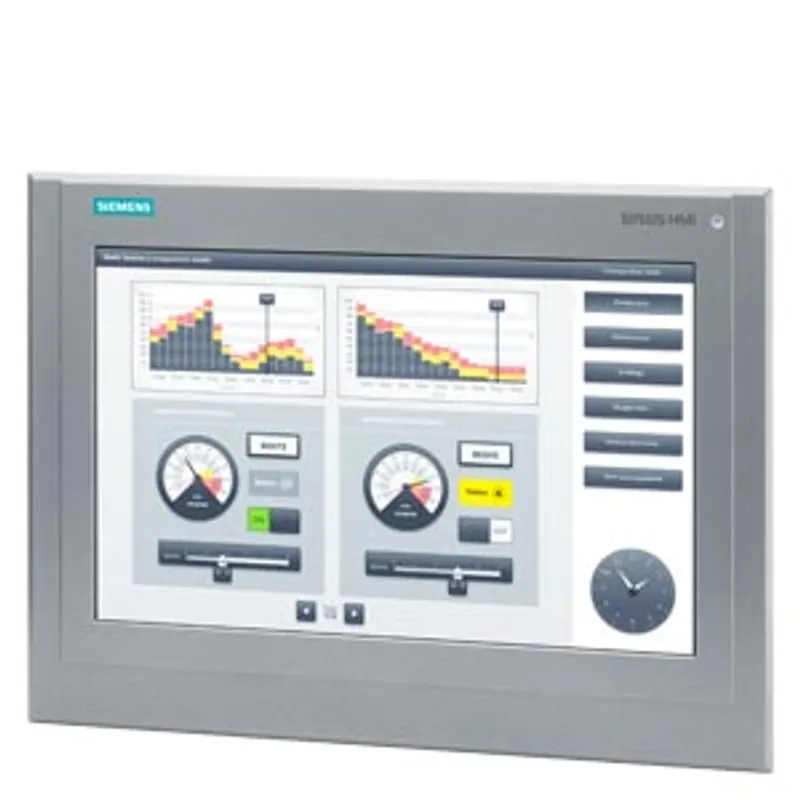

Siemens 6AG1124-0QC13-2AX0

Q: When can 6AG1124-0QC13-2AX0 be shipped?

6AG1124-0QC13-2AX0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 6AG1124-0QC13-2AX0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 6AG1124-0QC13-2AX0 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG1124-0QC13-2AX0, subject to availability and destination.

SIPLUS HMI TP1500 Comfort Outdoor based on 6AV2124-0QC13-0AX0 with conformal coating, -30…+60 °C

MPN: 6AG1124-0QC13-2AX0
Category: SIPLUS Comfort Panels Outdoor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6AG1124-0QC13-2AX0?

SIPLUS HMI TP1500 Comfort Outdoor based on 6AV2124-0QC13-0AX0 with conformal coating, -30…+60 °C, TP1500 Comfort Outdoor, Comfort Panel, touch operation, 15" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable WinCC Comfort V13 SP1 and higher, HSP

Specifications

General information

Product type designation	TP1500 Comfort Outdoor
based on	6AV2124-0QC13-0AX0

Display

Design of display	TFT, bonded, daylight-readable
Screen diagonal	15.4 in
Display width	331.2 mm
Display height	207 mm
Number of colors	16 777 216
Resolution (pixels) — Horizontal image resolution	1 280 pixel
Resolution (pixels) — Vertical image resolution	800 pixel
Backlighting — MTBF backlighting (at 25 °C)	50 000 h
Backlighting — Backlight dimmable	Yes; LED, can be dimmed manually or automatically

Control elements

Keyboard — Function keys — Number of function keys	0
Keyboard — Function keys — Number of function keys with LEDs	0
Keyboard — Keys with LED	No
Keyboard — System keys	No
Keyboard — Numeric keyboard	Yes; Onscreen keyboard
Keyboard — alphanumeric keyboard	Yes; Onscreen keyboard
Touch operation — Design as touch screen	Yes; Analog-resistive
Expansions for operator control of the process — DP direct LEDs (LEDs as S7 output I/O) — F1...Fx	0
Expansions for operator control of the process — Direct keys (keys as S7 input I/O) — F1...Fx	0
Expansions for operator control of the process — Direct keys (touch buttons as S7 input I/O)	40

Installation type/mounting

Mounting position	vertical
Mounting in portrait format possible	Yes
Mounting in landscape format possible	Yes
maximum permissible angle of inclination without external ventilation	35°

Supply voltage

Type of supply voltage	DC
Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V

Input current

Current consumption (rated value)	1.3 A
Starting current inrush I²t	0.5 A²·s

Power

Active power input, typ.

32 W

Processor

Processor type

X86

Storage

Flash	Yes
RAM	Yes
Memory available for user data	12 Mbyte

Type of output

Info LED	No
Power LED	No
Error LED	No
Acoustics — Buzzer	No
Acoustics — Speaker	Yes

Time of day

Clock — Hardware clock (real-time)	Yes
Clock — Software clock	No
Clock — retentive	Yes; Back-up duration typically 6 weeks
Clock — synchronizable	Yes

Interfaces

Number of industrial Ethernet interfaces	2
Number of RS 485 interfaces	1; RS 422 / 485 combined
Number of RS 422 interfaces	1
Number of RS 232 interfaces	0
Number of USB interfaces	2; USB 2.0
Number of USB interfaces — USB Mini B	1; 5-pole
Number of 20 mA interfaces (TTY)	0
Number of parallel interfaces	0
Number of SD card slots	2
With software interfaces	No
Industrial Ethernet — Industrial Ethernet status LED	2
Industrial Ethernet — Number of ports of the integrated switch	2

Protocols

PROFINET	Yes
PROFINET IO	Yes
IRT	Yes; WinCC V13 SP1 HSP or higher
PROFIBUS	Yes
EtherNet/IP	Yes
MPI	Yes
Protocols (Ethernet) — TCP/IP	Yes
Protocols (Ethernet) — DHCP	Yes
Protocols (Ethernet) — SNMP	Yes
Protocols (Ethernet) — DCP	Yes
Protocols (Ethernet) — LLDP	Yes
WEB characteristics — HTTP	Yes
WEB characteristics — HTTPS	No
WEB characteristics — HTML	Yes
WEB characteristics — XML	No
WEB characteristics — CSS	Yes
WEB characteristics — Active X	No
WEB characteristics — JavaScript	Yes
WEB characteristics — Java VM	No
Redundancy mode — Media redundancy — MRP	Yes; WinCC V13 SP1 HSP or higher
Further protocols — CAN	No
Further protocols — MODBUS	Yes

EMC

Emission of radio interference acc. to EN 55 011 — Limit class A, for use in industrial areas	Yes
Emission of radio interference acc. to EN 55 011 — Limit class B, for use in residential areas	No

Degree and class of protection

IP (at the front)	IP66
IP (rear)	IP20
NEMA (front) — Enclosure Type 4 at the front	Yes
NEMA (front) — Enclosure Type 4x at the front	Yes

Ambient conditions

Suited for indoor use	Yes
Suited for outdoor use	Yes; Powder-coated, UV resistant
Ambient temperature during operation — Operation (vertical installation) — For vertical installation, min.	-30 °C; = Tmin
Ambient temperature during operation — Operation (vertical installation) — For vertical installation, max.	60 °C; (55 °C, see entry ID: 64847814)
Ambient temperature during operation — Operation (max. tilt angle) — At maximum tilt angle, min.	-30 °C; = Tmin
Ambient temperature during operation — Operation (max. tilt angle) — At maximum tilt angle, max.	50 °C; = Tmax
Ambient temperature during operation — Operation (vertical installation, portrait format) — For vertical installation, min.	-30 °C; = Tmin
Ambient temperature during operation — Operation (vertical installation, portrait format) — For vertical installation, max.	50 °C; = Tmax
Ambient temperature during operation — Operation (max. tilt angle, portrait format) — At maximum tilt angle, min.	-30 °C; = Tmin
Ambient temperature during operation — Operation (max. tilt angle, portrait format) — At maximum tilt angle, max.	45 °C; = Tmax
Ambient temperature during storage/transportation — min.	-30 °C
Ambient temperature during storage/transportation — max.	70 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m
Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude	Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max.	100 %; RH incl. condensation/frost (no commissioning when condensation present), vertical mounting position
Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants	Yes; Incl. diesel and oil droplets in the air
Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3	Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3	Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3	Yes; Class 3S4 incl. sand, dust, *
Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6	Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request
Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6	Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6	Yes; Class 6S3 incl. sand, dust; *
Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4	Yes; Class 3 (excluding trichlorethylene)
Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04	Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04	* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086	Yes; Class 2 for high reliability
Conformal coating — Protection against fouling acc. to EN 60664-3	Yes; Type 1 protection
Conformal coating — Military testing according to MIL-I-46058C, Amendment 7	Yes; Discoloration of coating possible during service life
Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A	Yes; Conformal coating, Class A

Operating systems

proprietary	No
pre-installed operating system — Windows CE	Yes

Configuration

Message indicator	Yes
Alarm system (incl. buffer and acknowledgment)	Yes
Process value display (output)	Yes
Process value default (input) possible	Yes
Recipe management	Yes
Configuration software — STEP 7 Basic (TIA Portal)	No
Configuration software — STEP 7 Professional (TIA Portal)	No
Configuration software — WinCC flexible Compact	No
Configuration software — WinCC flexible Standard	No
Configuration software — WinCC flexible Advanced	No
Configuration software — WinCC Basic (TIA Portal)	No
Configuration software — WinCC Comfort (TIA Portal)	Yes; WinCC V13 SP1 Update 7 + HSP or higher
Configuration software — WinCC Advanced (TIA Portal)	Yes; WinCC V13 SP1 Update 7 + HSP or higher
Configuration software — WinCC Professional (TIA Portal)	Yes; WinCC V13 SP1 Update 7 + HSP or higher

Languages

Online languages — Number of online/runtime languages	32
Project languages — Languages per project	32

Functionality under WinCC (TIA Portal)

Libraries	Yes
Applications/options — Web browser	Yes
Applications/options — Pocket Word	Yes
Applications/options — Pocket Excel	Yes
Applications/options — PDF Viewer	Yes
Applications/options — Media Player	Yes
Applications/options — SIMATIC WinCC Sm@rtServer	Yes
Applications/options — SIMATIC WinCC Audit	Yes
Number of Visual Basic Scripts	Yes
Task planner — time-controlled	Yes
Task planner — task-controlled	Yes
Help system — Number of characters per info text	70
Message system — Number of alarm classes	32
Message system — Bit messages — Number of bit messages	4 000
Message system — Analog messages — Number of analog messages	200
Message system — S7 alarm number procedure	Yes
Message system — System messages HMI	Yes
Message system — System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )	Yes
Message system — Number of characters per message	80
Message system — Number of process values per message	8
Message system — Acknowledgment groups	Yes
Message system — Message indicator	Yes
Message system — Message buffer — Number of entries	1 024
Message system — Message buffer — Circulating buffer	Yes
Message system — Message buffer — retentive	Yes
Message system — Message buffer — maintenance-free	Yes
Recipe management — Number of recipes	300
Recipe management — Data records per recipe	500
Recipe management — Entries per data record	1 000
Recipe management — Size of internal recipe memory	2 Mbyte
Recipe management — Recipe memory expandable	Yes
Variables — Number of variables per device	2 048
Variables — Number of variables per screen	400
Variables — Limit values	Yes
Variables — Multiplexing	Yes
Variables — Structures	Yes
Variables — Arrays	Yes
Images — Number of configurable images	500
Images — Permanent window/default	Yes
Images — Global image	Yes
Images — Image selection by PLC	Yes
Images — Image number in the PLC	Yes
Image objects — Number of objects per image	400
Image objects — Text fields	Yes
Image objects — I/O fields	Yes
Image objects — Graphic I/O fields (graphics list)	Yes
Image objects — Symbolic I/O fields (text list)	Yes
Image objects — Date/time fields	Yes
Image objects — Switches	Yes
Image objects — Buttons	Yes
Image objects — Graphic display	Yes
Image objects — Icons	Yes
Image objects — Geometric objects	Yes
Complex image objects — Number of complex objects per screen	20
Complex image objects — Alarm view	Yes
Complex image objects — Trend view	Yes
Complex image objects — User view	Yes
Complex image objects — Status/control	Yes
Complex image objects — Sm@rtClient view	Yes
Complex image objects — Recipe view	Yes
Complex image objects — f(x) trend view	Yes
Complex image objects — System diagnostics view	Yes
Complex image objects — Media Player	Yes
Complex image objects — IP camera display	Yes; Webcam type see FAQs
Complex image objects — Bar graphs	Yes
Complex image objects — Sliders	Yes
Complex image objects — Pointer instruments	Yes
Complex image objects — Analog/digital clock	Yes
Lists — Number of text lists per project	500
Lists — Number of entries per text list	500
Lists — Number of graphics lists per project	500
Lists — Number of entries per graphics list	500
Archiving — Number of archives per device	50
Archiving — Number of entries per archive	20 000
Archiving — Message archive	Yes
Archiving — Process value archive	Yes
Archiving — Archiving methods — Sequential archive	Yes
Archiving — Archiving methods — Short-term archive	Yes
Archiving — Memory location — Memory card	Yes
Archiving — Memory location — USB memory	Yes
Archiving — Memory location — Ethernet	Yes
Archiving — Data storage format — CSV	Yes
Archiving — Data storage format — TXT	Yes
Archiving — Data storage format — RDB	Yes
Security — Number of user groups	50
Security — Number of user rights	32
Security — Number of users	50
Security — Password export/import	Yes
Security — SIMATIC Logon	Yes
Logging through printer — Alarms	Yes
Logging through printer — Report (shift log)	Yes
Logging through printer — Hardcopy	Yes
Logging through printer — Electronic print to file	Yes; PDF, HTML
Character sets — Keyboard — US American (English)	Yes
Transfer (upload/download) — MPI/PROFIBUS DP	Yes
Transfer (upload/download) — USB	Yes
Transfer (upload/download) — Ethernet	Yes
Transfer (upload/download) — using external storage medium	Yes; Backup/restore
Process coupling — S7-1200	Yes
Process coupling — S7-1500	Yes
Process coupling — S7-200	Yes
Process coupling — S7-300/400	Yes
Process coupling — LOGO!	Yes
Process coupling — WinAC	Yes
Process coupling — SINUMERIK	Yes; with SINUMERIK option package
Process coupling — SIMOTION	Yes
Process coupling — Allen Bradley (EtherNet/IP)	Yes
Process coupling — Allen Bradley (DF1)	Yes
Process coupling — Mitsubishi (MC TCP/IP)	Yes
Process coupling — Mitsubishi (FX)	Yes
Process coupling — OMRON (FINS TCP)	No
Process coupling — OMRON (Host Link)	Yes
Process coupling — Modicon (Modbus TCP/IP)	Yes
Process coupling — Modicon (Modbus RTU)	Yes
Process coupling — OPC UA Client	Yes
Process coupling — OPC UA Server	Yes
Service tools/configuration aids — Backup/Restore manually	Yes
Service tools/configuration aids — Backup/Restore automatically	Yes
Service tools/configuration aids — Simulation	Yes
Service tools/configuration aids — Device switchover	Yes

Peripherals/Options

Printer	Yes
SIMATIC HMI MM memory card: Multi Media Card	Yes
SIMATIC HMI SD memory card: Secure Digital memory card	Yes
SIMATIC HMI CF memory card Compact Flash Card	No
USB memory	Yes; e.g. USB RFID reader, see FAQ entry ID: 99808171
SIMATIC IPC USB Flashdrive (USB stick)	Yes
SIMATIC HMI USB stick	Yes
Network camera	Yes; See FAQ Entry ID: 62383298 and entry ID: 65647473

Accessories

extension module	Optional e.g. USB RFID reader, see FAQ entry ID: 99808171
Further accessories are available	Yes; Mounting clips and 2-pin power supply connector

Mechanics/material

Enclosure material (front) — plastic	No
Enclosure material (front) — Aluminum	Yes; Powder-coated, UV resistant
Enclosure material (front) — Stainless steel	No

Dimensions

Width of the housing front	415 mm
Height of housing front	310 mm
Mounting cutout, width	396 mm
Mounting cutout, height	291 mm
mounting depth	73.2 mm

Weights

Weight (without packaging)	4 kg
Weight (with packaging)	6.2 kg

Other

Note:

Power, quantity structure and performance correspond to a standard 12" Comfort Panel

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6AG1124-0QC13-2AX0PDF

6AG1124-0QC13-2AX0: frequently asked questions

When can 6AG1124-0QC13-2AX0 be shipped?

6AG1124-0QC13-2AX0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6AG1124-0QC13-2AX0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6AG1124-0QC13-2AX0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG1124-0QC13-2AX0, subject to availability and destination.
