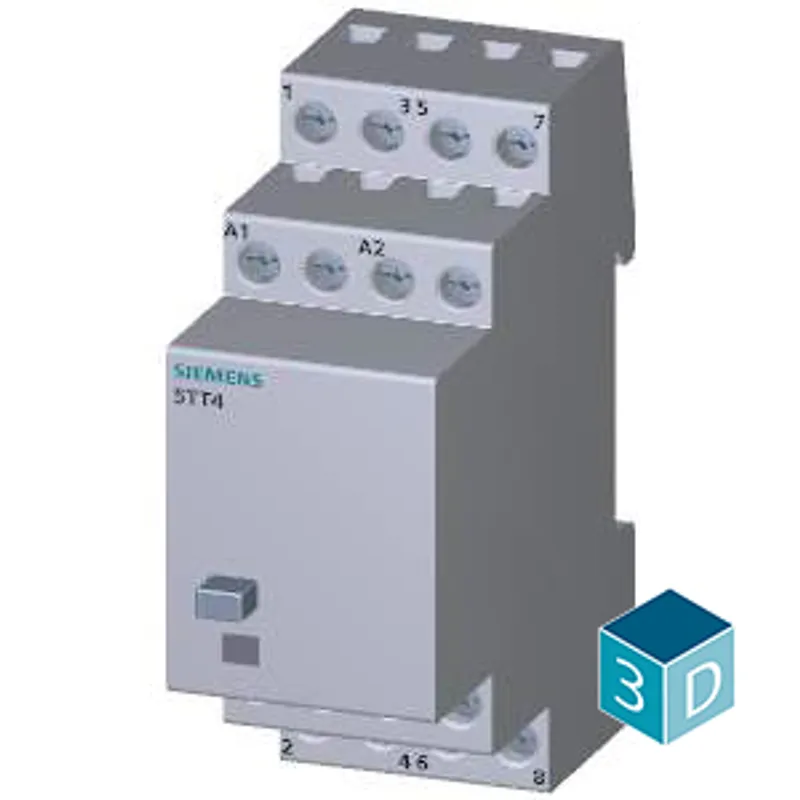

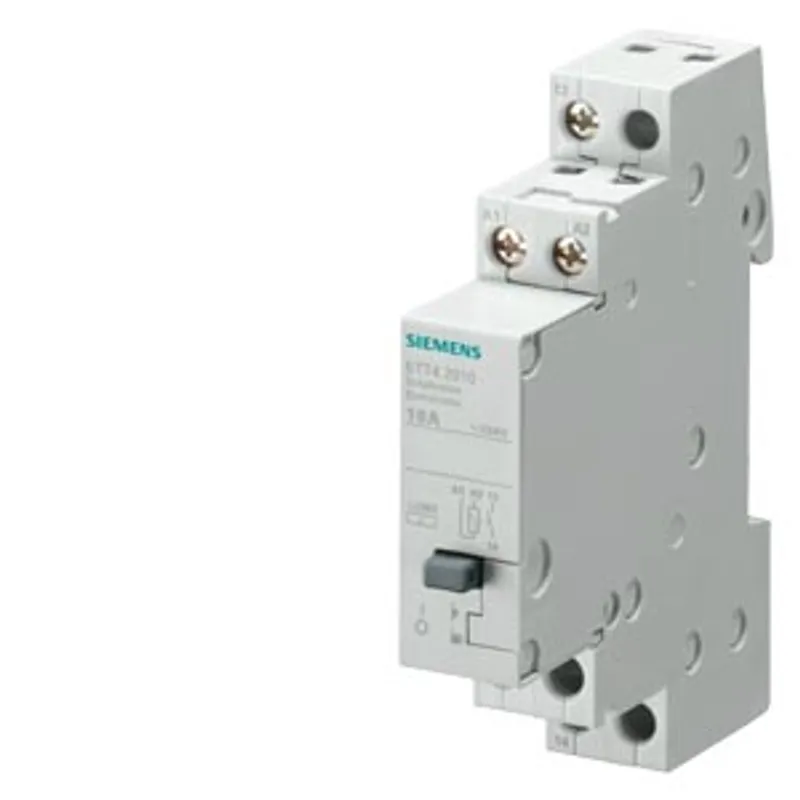

Siemens 5TT4204-0

Switching relay with 4 NO contact for 230V AC 16A control 230V AC

MPN
5TT4204-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5TT4204-0?

switching relay with 4 NO contact for 230V AC 16A control 230V AC

Specifications

Model

product brand nameSENTRON
product designationSwitching relays
design of the productWith 4 NO
design of the switching function4 NO

General technical data

operating range factor of control voltage_10.8
electrical endurance (operating cycles)50 000
galvanic isolation between magnet coil and contactYes
switching voltage of the contacts at AC minimum10 V
switching current at AC per contact minimum100 mA
power loss [V∙A] of magnet coil with pulse rated value6 VA

Voltage

type of voltage of the operating voltageAC
control voltage at AC rated value maximum230 V
surge voltage resistance rated value4 kV

Supply voltage

operating voltage — minimum400 V
operating voltage — maximum400 V
operating voltage — at AC rated value maximum400 V
type of voltage of the supply voltageAC

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

switching capacity apparent power — for uncompensated fluorescent lamp load400 VA
switching capacity current at cos phi 0.616 A
switching capacity active power with incandescent lamp load1 200 W

Dissipation

power loss [W] — for rated value of the current at AC in hot operating state per pole1 W
power loss [W] — at 16 A per contact rated value1 W
power loss [W] — of magnet coil with pulse rated value4.8 W

Main circuit

operating frequency rated value50 Hz
operational current — rated value16 A
operational current — at cos phi 0.6 ... 1 rated value16 A

Control current

type of voltage — of control voltage_1AC
control voltage — _1 initial value230 V
control voltage — _1 full-scale value230 V
control voltage frequency — _1 initial value50 Hz
control voltage frequency — _1 full-scale value50 Hz
operating range factor of control voltage_21.1
number of NC contacts0
number of NO contacts4
number of CO contacts0

Product function

product function direct operationYes

Inputs Outputs

relay designpartially electronic

Number

number of terminals with cross-head screw1

Connections

connectable conductor cross-section for flexible conductor with core end processing — minimum1 mm²
connectable conductor cross-section for flexible conductor with core end processing — maximum6 mm²
connectable conductor cross-section for rigid conductor — minimum1 mm²
connectable conductor cross-section for rigid conductor — maximum6 mm²

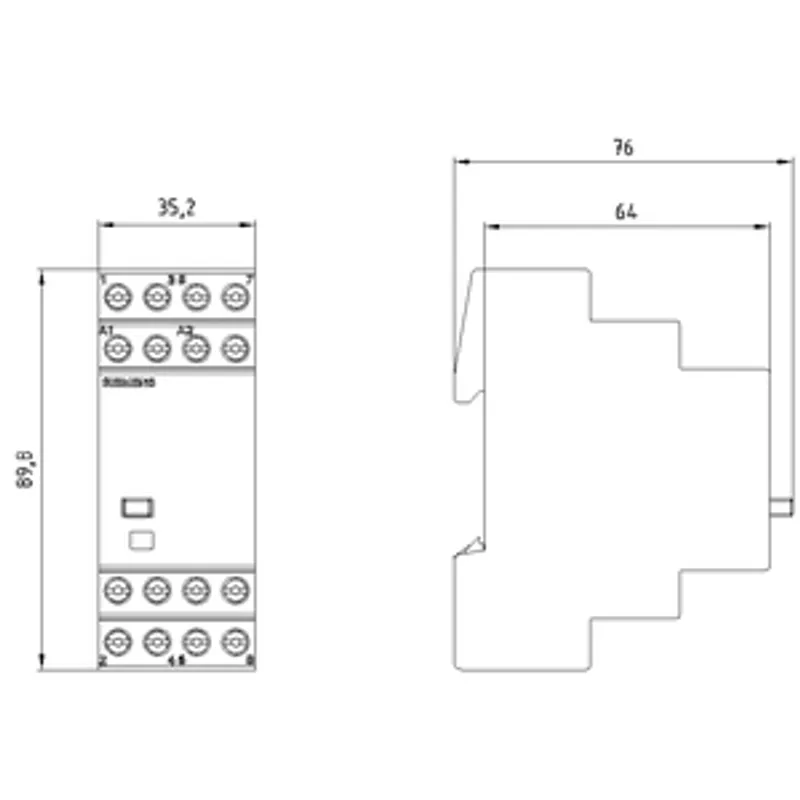

Mechanical Design

height90 mm
width36 mm
width of opening of the contacts1.2 mm
depth76 mm
installation depth70 mm
number of modular width units2
fastening methodDIN rail
mounting positionany
required spacing for live parts6 mm
Net Weight247 g

Environmental conditions

ambient temperature during operation — minimum-10 °C
ambient temperature during operation — maximum40 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5TT4204-0: frequently asked questions

When can 5TT4204-0 be shipped?

5TT4204-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5TT4204-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5TT4204-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TT4204-0, subject to availability and destination.
