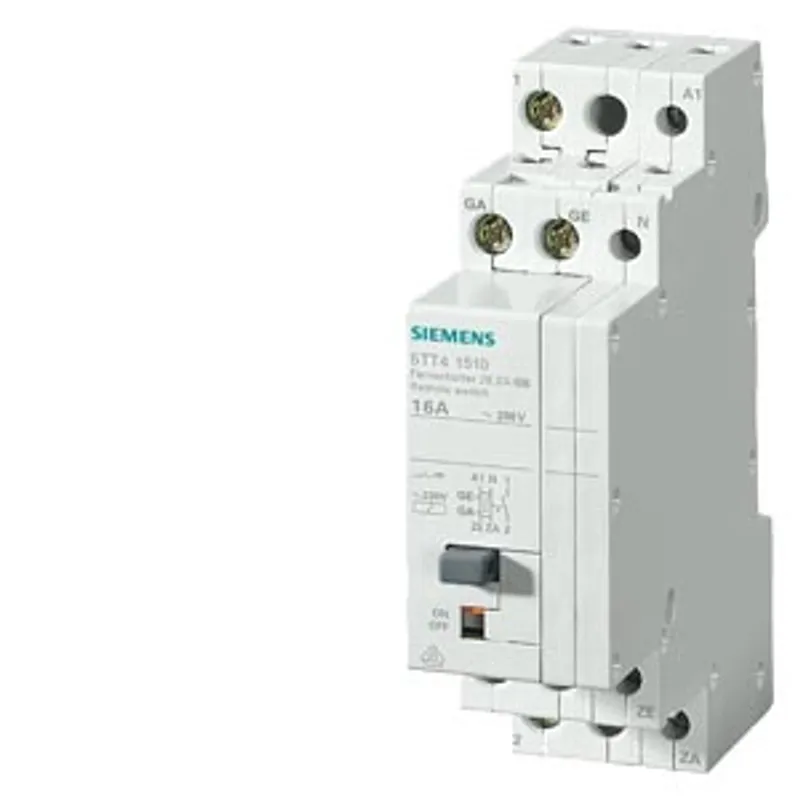

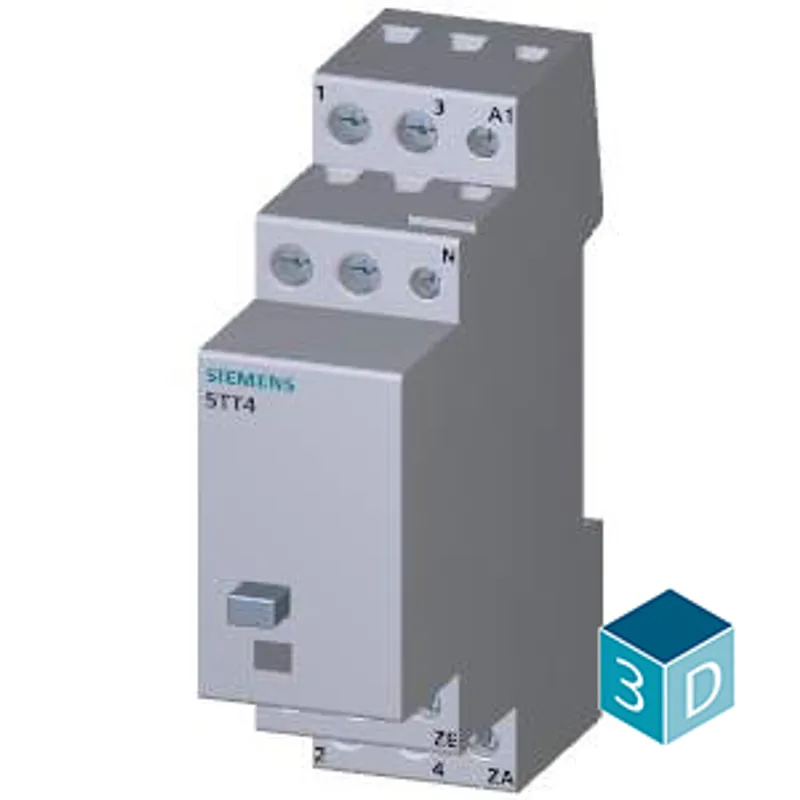

Siemens 5TT4152-2

Remote control switch with 2 NO contacts, Central and group switching Contact for 230 V AC

MPN
5TT4152-2
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5TT4152-2?

Remote control switch with 2 NO contacts, Central and group switching Contact for 230 V AC, 400V 16A Control 24 V AC

Specifications

Model

product brand nameSENTRON
product designationRemote control switch
latching relay designMechanical group switch

General technical data

electrical endurance (operating cycles)50 000
galvanic isolation between magnet coil and contactYes
switching voltage of the contacts at AC minimum10 V
switching current at AC per contact minimum100 mA
degree of pollution2
power loss [V∙A] of magnet coil with pulse rated value7 V·A

Voltage

type of voltage of the operating voltageAC
continuous voltage fuse versionYes
operating range factor control supply voltage rated value at AC at 50 Hz — initial value0.8
operating range factor control supply voltage rated value at AC at 50 Hz — full-scale value1.1
surge voltage resistance rated value4 kV
supply voltage250 V

Supply voltage

supply voltage — minimum250 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

switching capacity apparent power — for fluorescent lamp load with DUO circuit700 V·A
switching capacity apparent power — for fluorescent lamp load with parallel compensation300 V·A
switching capacity apparent power — for uncompensated fluorescent lamp load400 V·A
switching capacity current — at cos phi 0.616 A
switching capacity current — rated value16 A
switching capacity active power with incandescent lamp load2 000 W

Dissipation

power loss [W] — at 16 A per contact rated value1.2 W
power loss [W] — of magnet coil with pulse rated value4.5 W

Control current

type of voltage — of control voltage_1AC
type of voltage — of control voltage_2AC
control voltage — _1 initial value19 V
control voltage — _1 full-scale value26 V
control voltage — _1 setpoint24 V
control voltage — _2 initial value19 V
control voltage — _2 full-scale value26 V
control voltage — _2 setpoint24 V
control voltage frequency — _1 initial value50 Hz
control voltage frequency — _1 full-scale value50 Hz
control voltage frequency — _2 initial value50 Hz
control voltage frequency — _2 full-scale value50 Hz
operating range factor of control voltage_20.8

Product details

product component switch position indicatorYes
number of NC contacts0
number of NO contacts2
number of CO contacts0

Product function

product function — direct operationYes
product function — communication functionNo
product function — other measurement functionNo
pulse duration minimum50 ms

Number

number of terminals10

Connections

connectable conductor cross-section for flexible conductor with core end processing — minimum1 mm²
connectable conductor cross-section for flexible conductor with core end processing — maximum6 mm²
connectable conductor cross-section for rigid conductor — minimum1 mm²
connectable conductor cross-section for rigid conductor — maximum6 mm²
tightening torque with screw-type terminals — minimum0.8 N·m
tightening torque with screw-type terminals — maximum1 N·m

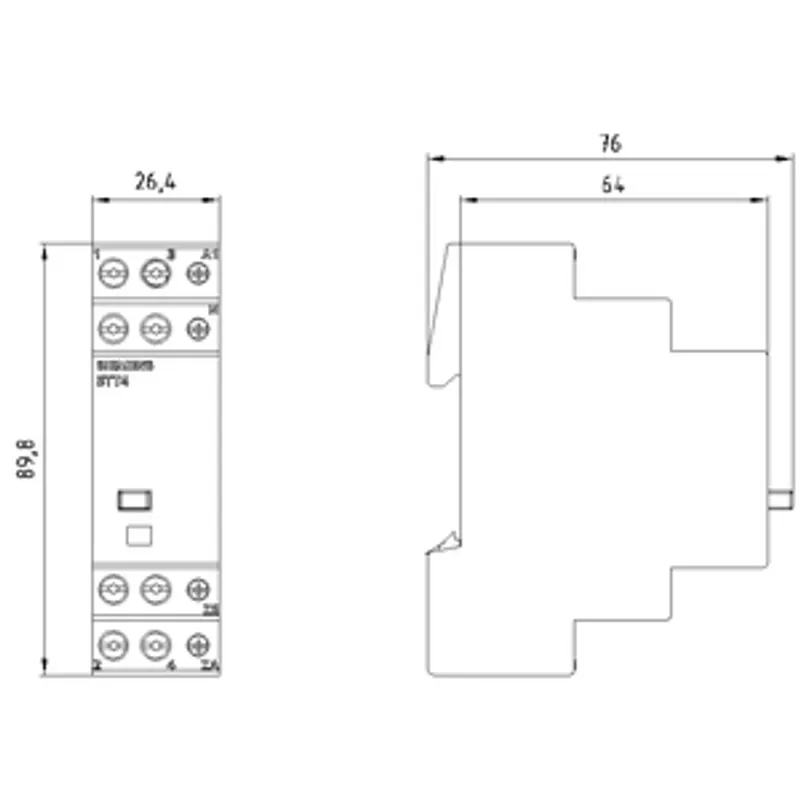

Mechanical Design

height90 mm
width27 mm
width of opening of the contacts1.2 mm
depth76 mm
mounting height90 mm
installation depth70 mm
number of modular width units1.5
fastening methodDIN rail
mounting positionany
required spacing for live parts6 mm
Net Weight182 g

Environmental conditions

ambient temperature during operation — minimum-10 °C
ambient temperature during operation — maximum40 °C
ambient temperature with relative humidity 95% according to DIN 5001535 °C
