SENTRON 5TT4 Switching Relays Parts















Compare SENTRON 5TT4 Switching Relays
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the product | control voltage at AC rated value maximum | control voltage — _1 initial value | control voltage — _1 full-scale value | Net Weight |
|---|---|---|---|---|---|
| 5TT4207-2 | With 2 CO | 24 V | 24 V | 24 V | 147 g |
| 5TT4207-1 | With 2 CO | 115 V | 115 V | 115 V | 144 g |
| 5TT4207-0 | With 2 CO | 230 V | 230 V | 230 V | 138 g |

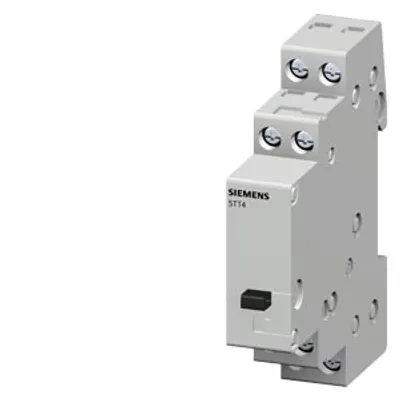

| 5TT4205-0 | with 1 NC and 1 NO | 230 V | 230 V | 230 V | 132 g |

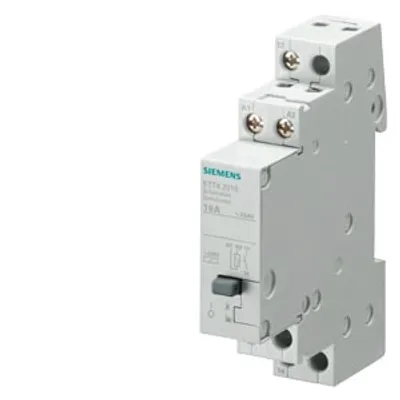

| 5TT4204-4 | With 4 NO | 8 V | 8 V | 8 V | 268 g |
| 5TT4204-3 | With 4 NO | 12 V | 12 V | 12 V | 250 g |
| 5TT4204-2 | With 4 NO | 24 V | 24 V | 24 V | 263 g |
| 5TT4204-1 | With 4 NO | 115 V | 115 V | 115 V | 256 g |
| 5TT4204-0 | With 4 NO | 230 V | 230 V | 230 V | 247 g |
| 5TT4217-6 | With 2 CO | — | 30 V | 30 V | 142 g |
| 5TT4217-3 | With 2 CO | — | 12 V | 12 V | 150 g |
| 5TT4217-2 | With 2 CO | — | 24 V | 24 V | 150 g |
| 5TT4206-4 | With 1 CO | 8 V | 8 V | 8 V | 138 g |
| 5TT4206-3 | With 1 CO | 12 V | 12 V | 12 V | 129 g |
| 5TT4206-2 | With 1 CO | 24 V | 24 V | 24 V | 133 g |
Common to all listed parts
| product designation | Switching relays |
| operating range factor of control voltage_1 | 0.8 |
| electrical endurance (operating cycles) | 50 000 |
| galvanic isolation between magnet coil and contact | Yes |
| switching voltage of the contacts at AC minimum | 10 V |
| switching current at AC per contact minimum | 100 mA |
| type of voltage of the operating voltage | AC |
| surge voltage resistance rated value | 4 kV |
