Siemens 5TC8267
Rotary dimmer with pushbutton on/off for LED lamps 3-85W and incandescent and halogen lamps with magnetic…
- MPN
- 5TC8267
- Category
- Inserts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

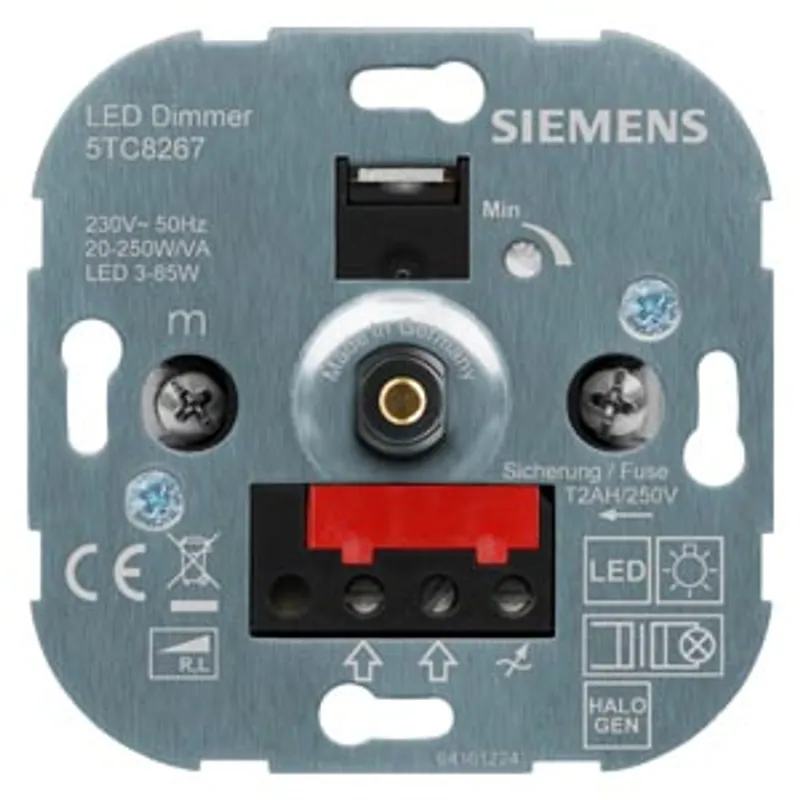

What is the Siemens 5TC8267?
Rotary dimmer with pushbutton on/off for LED lamps 3-85W and incandescent and halogen lamps with magnetic trafo 20-250W/VA
Specifications
Model
| product brand name | DELTA |
| type of load | inductive load |
| type of composition | basic element |
| design of the actuating element | rotary knob/button |
| design of dimmer series dimmer | No |
General technical data
| operating apparent power rated value — minimum | 20 V·A |
| operating apparent power rated value — maximum | 250 V·A |
| dimming power minimum | 20 V·A |
| mounting type | Claw and screw fixing |
| surface processing | other |
| material | other |
Supply voltage
| operating voltage rated value | 230 V |
Protection class
| protection class IP | IP20 |
Main circuit
| operating frequency rated value — minimum | 50 Hz |
| operating frequency rated value — maximum | 50 Hz |
Suitability
| suitability for interaction motion detector | No |
| suitability for interaction radio key | No |
| suitability for interaction IR pushbutton | No |
| suitability for interaction presence detector | No |
| suitability for interaction pushbutton | No |
| suitability for interaction time switch | No |
Appearance
| appearance | not applicable |
| color | miscellaneous |
Product details
| product component — light value memory | No |
| product component — extension input | No |
| product feature halogen-free | Yes |
| product feature transparent | No |

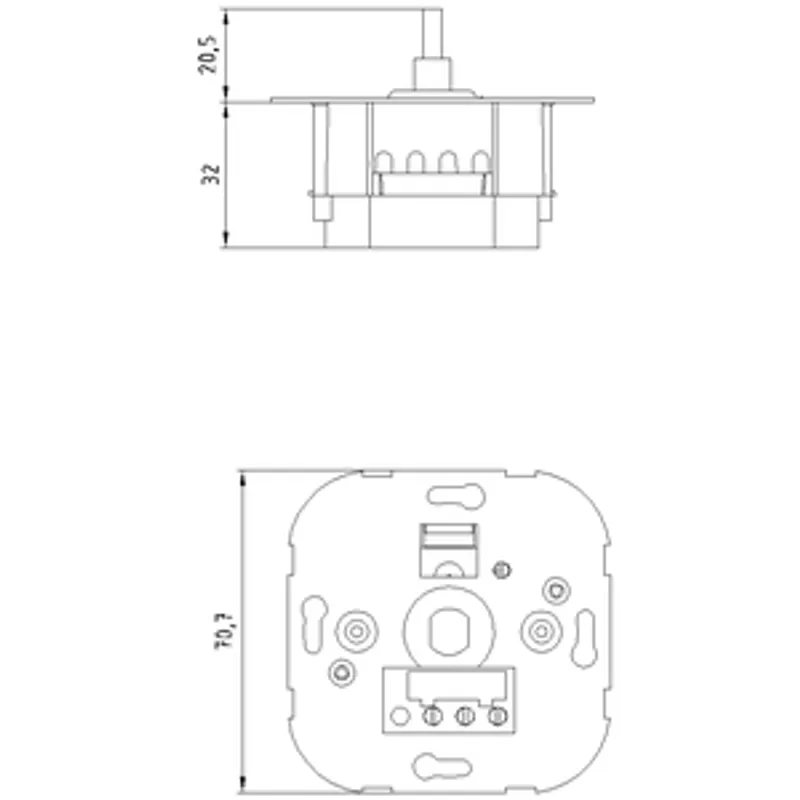

Mechanical Design
| height | 70 mm |
| width | 70 mm |
| depth | 32 mm |
| fastening method | flush mounting |
| Net Weight | 119 g |
| material of the enclosure | metal |
