Inserts Parts
Compare Inserts
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the actuating element | type of switch | mounting type | operating voltage rated value | Net Weight |
|---|---|---|---|---|---|

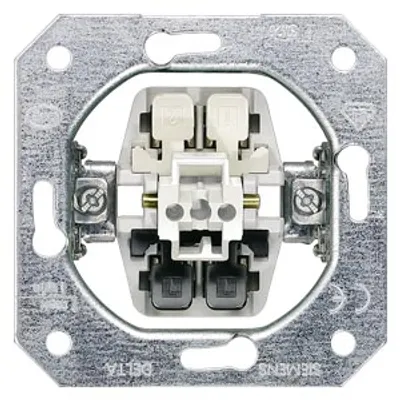

| 5TA2162-0KK | rocker/button | switch 2-pole | flush mounting | 250 V | 47 g |
| 5TC8212-0 | button | — | Other | 12 V | 37 g |
| 5TA2118-0KK | rocker/button | Double two-way switch | flush mounting | 250 V | 54 g |
| 5TA2118 | rocker/button | Double two-way switch | flush mounting | 250 V | 68 g |
| 5TA2117-0KK | rocker/button | intermediate switch | flush mounting | 250 V | 58 g |
| 5TA2108-0KK | rocker/button | toggle switch | flush mounting | 250 V | 58 g |
| 5TA2108 | rocker/button | toggle switch | flush mounting | 250 V | 71 g |
| 5TC8213-0 | button | — | Other | 230 V | 37 g |

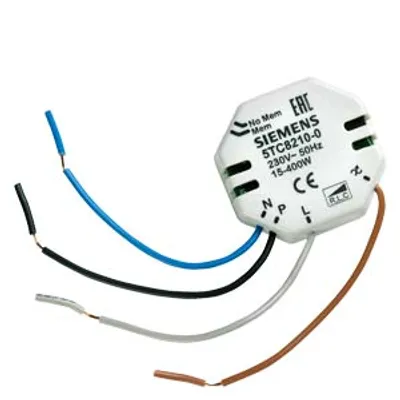

| 5TC8210-0 | button | — | Other | 230 V | 0.034 kg |
| 5TC8267 | rotary knob/button | — | Claw and screw fixing | 230 V | 119 g |
| 5TA2151-0KK | rocker/button | OFF switch 1-pole | flush mounting | 250 V | 54 g |

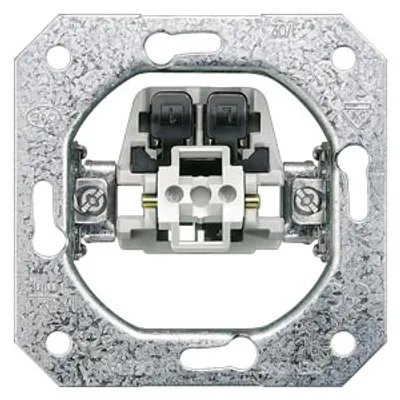

| 5TA2151 | rocker/button | OFF switch 1-pole | flush mounting | 250 V | 59 g |
| 5TA2150-0KK | rocker/button | Control switch Off | flush mounting | 250 V | 59 g |

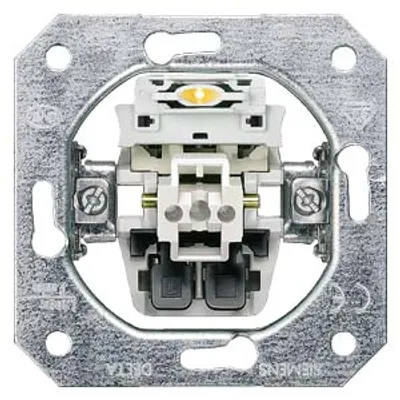

| 5TA2150 | rocker/button | OFF switch 1-pole | flush mounting | 250 V | 66 g |

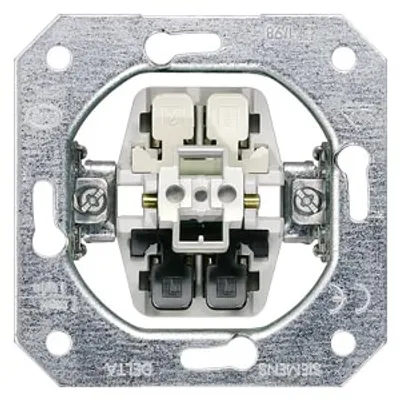

| 5TA2132 | rocker/button | intermediate switch | flush mounting | 250 V | 77 g |

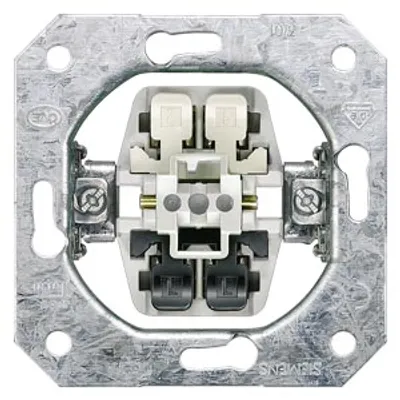

| 5TA2112 | rocker/button | switch 2-pole | flush mounting | 250 V | 64 g |
Common to all listed parts
| protection class IP | IP20 |
| appearance | not applicable |
| product feature halogen-free | Yes |
