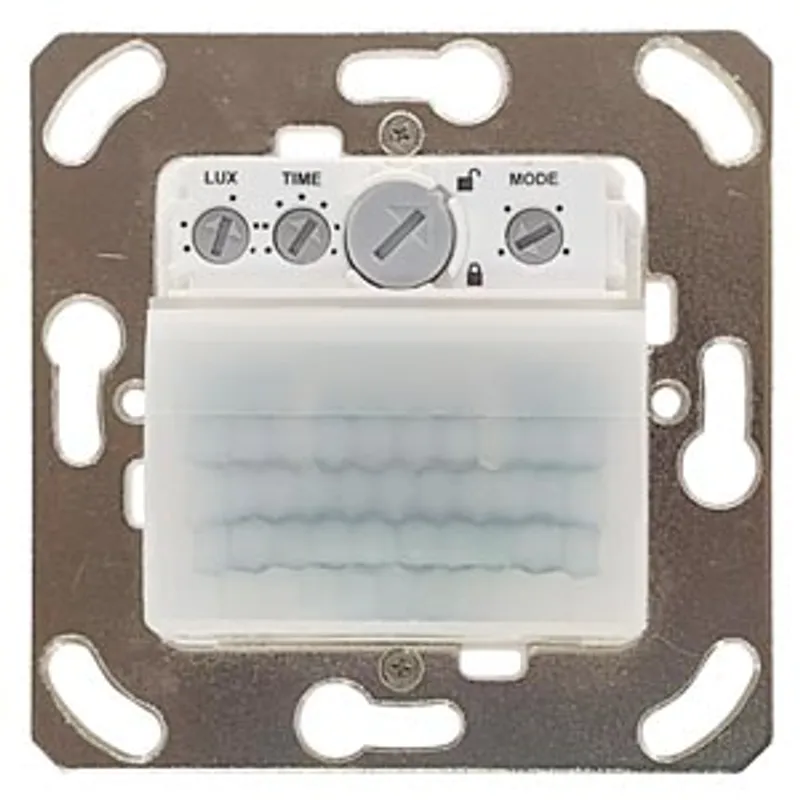

Siemens 5TC1585
DELTA motion detector master with button, relay output 230 V AC 50/60Hz, 2300W/1150VA
- MPN
- 5TC1585
- Category
- Motion Detectors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5TC1585?
DELTA motion detector master with button, relay output 230 V AC 50/60Hz, 2300W/1150VA
Specifications
Model
| product brand name | DELTA |
| design of motion sensor | Motion detector |
| design of transmission medium wireless transmission | No |
General technical data
| detection angle horizontal — initial value | 170° |
| detection angle horizontal — full-scale value | 170° |
| mounting height optimum | 1.2 m |
| surface processing | Other |
| range — on the front maximum | 10 m |
| range — lateral maximum | 17 m |
| material | Thermoplast |
Supply voltage
| operating voltage rated value | 230 V |
| supply voltage frequency — minimum | 50 Hz |
| supply voltage frequency — maximum | 60 Hz |
Protection class
| protection class IP | IP20 |
Breaking Capacity
| switching capacity current | 10 A |
| switching capacity active power | 2 300 W |
Adjustable parameters
| adjustable light sensitivity — initial value | 5 lx |
| adjustable light sensitivity — full-scale value | 1 000 lx |
| adjustable OFF-delay time — initial value | 10 s |
| adjustable OFF-delay time — full-scale value | 30 min |
Appearance
| appearance | polished |
Product details
| product component — signaling contact | No |
| product component — extension input | No |
| product component — signal lamp | Yes |
| product component — override switch | No |
| product feature halogen-free | Yes |
| product feature transparent | No |
| product extension optional remote control | No |
Product function
| product function — adjustable responsiveness | Yes |
| product function — adjustable responsiveness for brightness | Yes |
| product function — dimmable for dimming use | No |
| product function — HVAC control | No |
| product function — constant light control | No |
| product function — animal path | No |
| product function — staircase monitoring | Yes |
| product function — teach function for response brightness | Yes |
| product function — creep-under protection/backfield monitoring | No |
| product function — networkable | No |
| product function — positive opening | No |
Mechanical Design
| Net Weight | 140 g |
| material of the enclosure | plastic |
Environmental conditions
| ambient temperature during operation — minimum | -15 °C |
| ambient temperature during operation — maximum | 45 °C |
