Home / Siemens / Inserts / Siemens 5TC1271

Siemens

Siemens 5TC1271

DELTA shutter controller FM isolating relay compact with extension input 3 A

MPN: 5TC1271
Category: Inserts

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

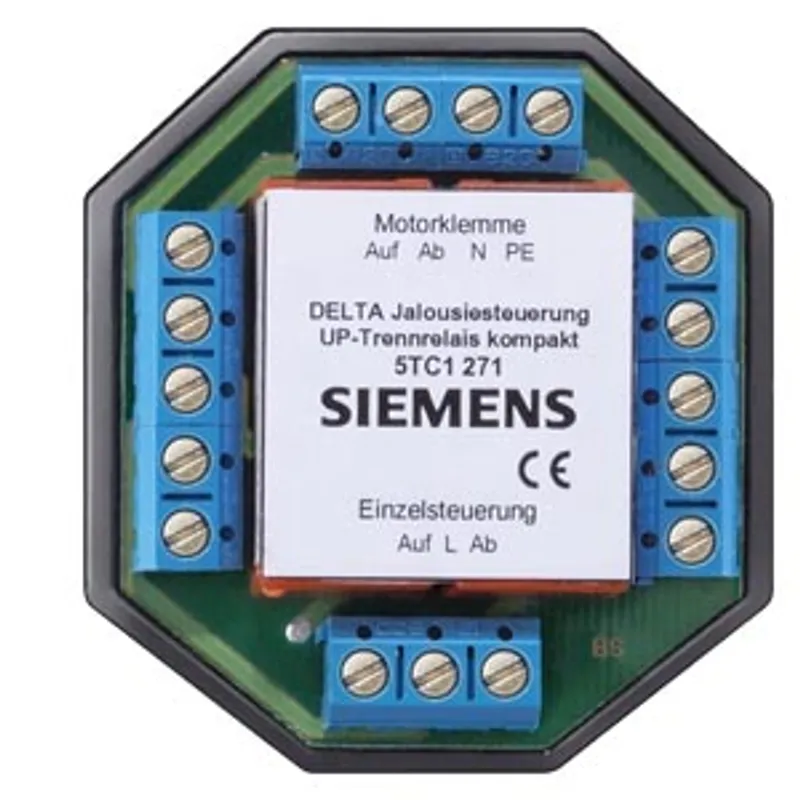

What is the Siemens 5TC1271?

DELTA shutter controller FM isolating relay compact with extension input 3 A, 230 V AC for standard flush-mounting boxes 60 mm

Specifications

Model

product brand name	DELTA
product designation	Shutter/blind control

Supply voltage

operating voltage rated value	230 V
supply voltage frequency — minimum	50 Hz
supply voltage frequency — maximum	50 Hz

Breaking Capacity

switching capacity current

8 A

Main circuit

operational current rated value

8 A

Relay contacts

switching voltage of relay contacts rated value

250 V

Product details

product component extension input

Number

number of motors connectable

Connections

type of electrical connection

Max. 2.5 mm²

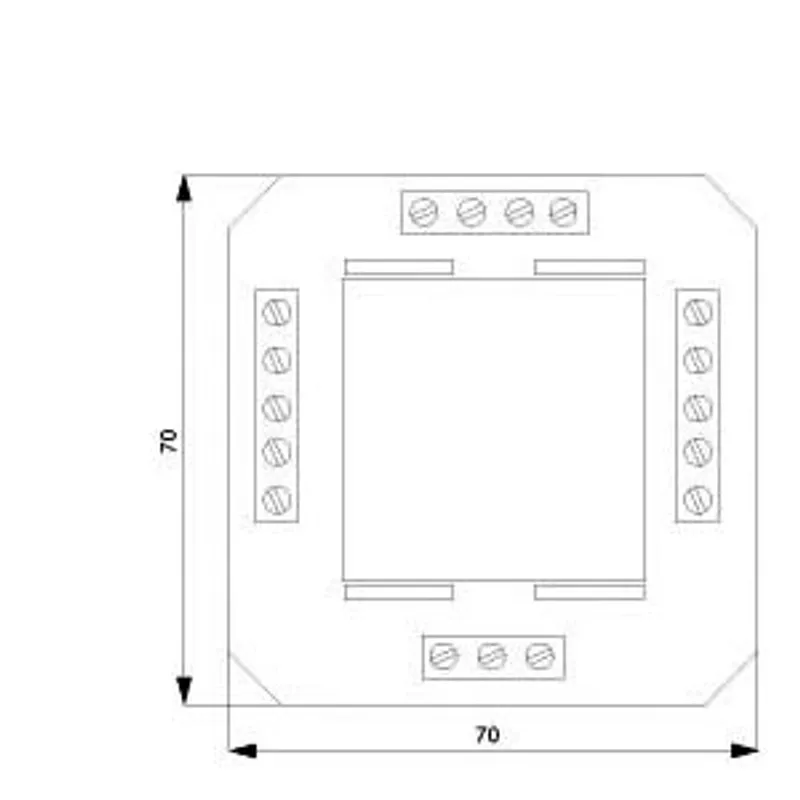

Mechanical Design

width	53 mm
depth	22 mm
length	50 mm
fastening method	flush mounted
Net Weight	93 g

Environmental conditions

ambient temperature during operation — minimum	0 °C
ambient temperature during operation — maximum	60 °C
