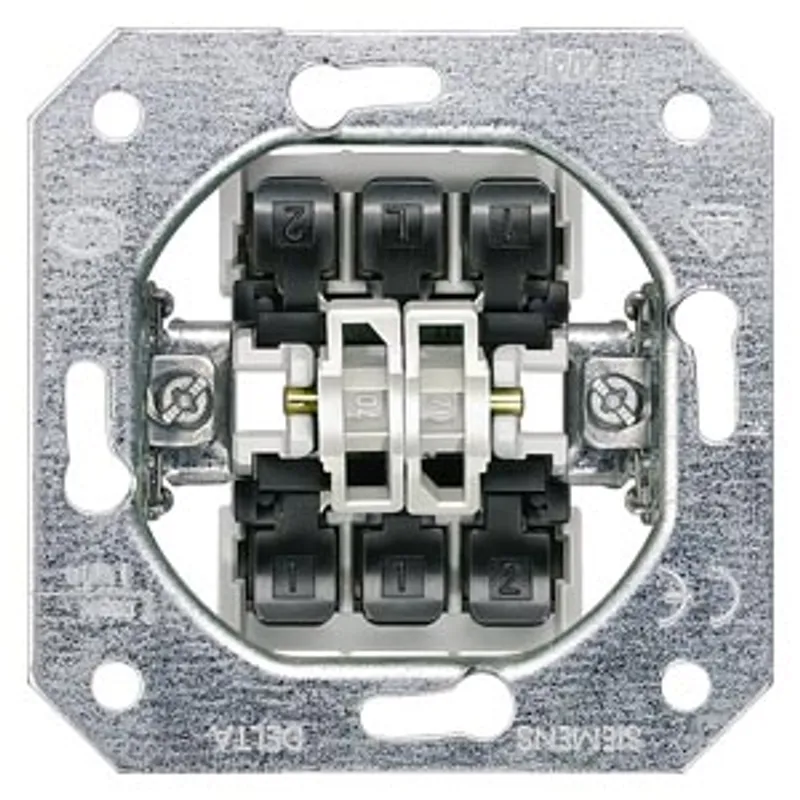

Siemens 5TA2118
DELTA switch device insert FM, double two-way switch 10A 250V
- MPN
- 5TA2118
- Category
- Inserts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5TA2118?
DELTA switch device insert FM, double two-way switch 10A 250V
Specifications
Model
| product brand name | DELTA |
| type of installation switch rotary switch | No |
| type of light source | Without lighting |
| type of composition | basic element |
| design of the actuating element | rocker/button |
General technical data
| type of switch | Double two-way switch |
| mounting type | flush mounting |
| surface processing | others |
| material | others |
Supply voltage
| operating voltage rated value | 250 V |
Protection class
| protection class IP | IP20 |
Breaking Capacity
| switching capacity current | 10 A |
Main circuit
| operational current rated value | 10 A |
Appearance
| appearance | not applicable |
| color | miscellaneous |
Product details
| product component — labeling field | No |
| product component — signaling contact | No |
| product component — pushbutton switch | No |
| product feature halogen-free | Yes |
Number
| number of actuating rockers | 2 |
Connections
| type of electrical connection | Plug-in terminal |
Mechanical Design

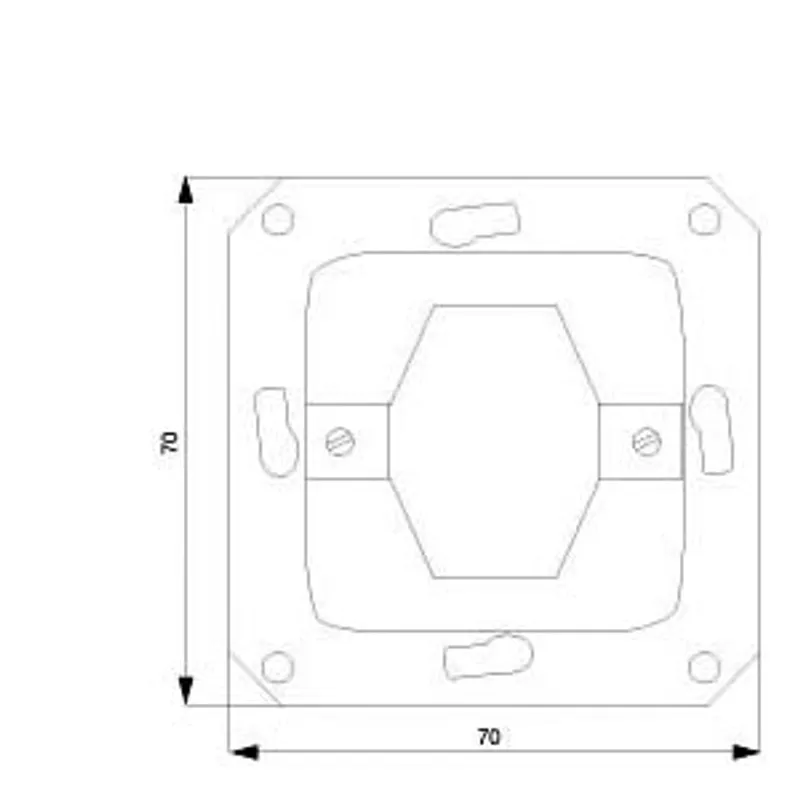

| height | 70 mm |
| fastening method | claw/screw mounting |
| Net Weight | 68 g |
| material of the enclosure | metal |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.353 kg |
| global warming potential [CO2 eq] / during operation | 4.49 kg |
| global warming potential [CO2 eq] / after end of life | 0.0164 kg |
| global warming potential [CO2 eq] / total | 4.86 kg |
