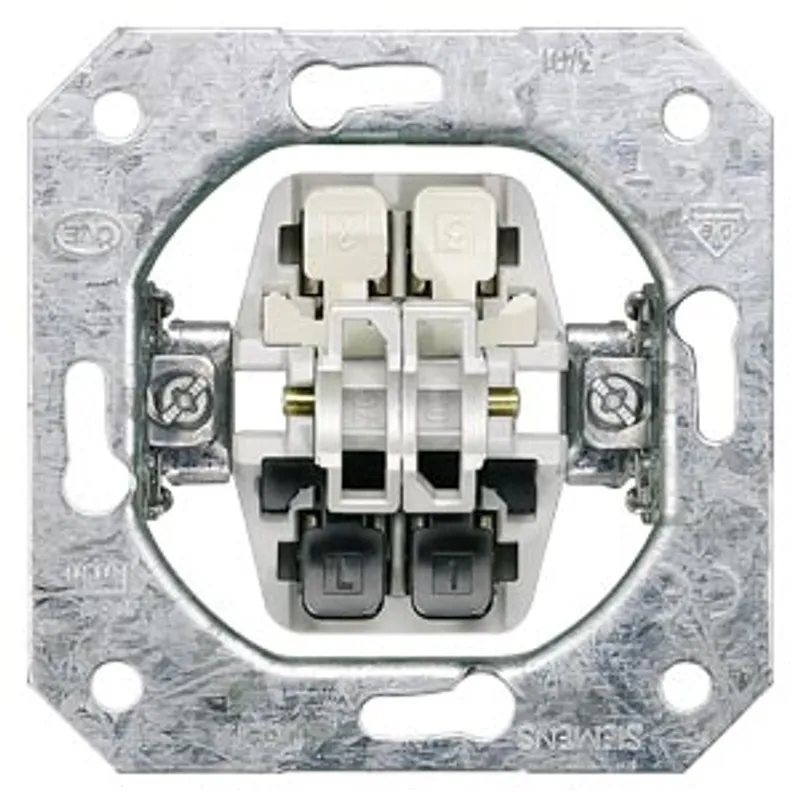

Siemens 5TA2114
DELTA pushbutton device insert FM, shutter pushbutton 10 A 250 V Electrically interlocked
- MPN
- 5TA2114
- Category
- Inserts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5TA2114?
DELTA pushbutton device insert FM, shutter pushbutton 10 A 250 V Electrically interlocked
Specifications
Model
| product brand name | DELTA |
| product designation | Shutter/blind pushbutton |
| design of the product | 10 A 250 V electrically locked |
| design of the surface | others |
| type of composition | basic element |
| design of the actuating element | rocker |
General technical data
| number of poles | 2 |
| type of switch | pushbutton 2-pole |
| mounting type | flush mounting |
| material | others |
Supply voltage
| operating voltage rated value | 250 V |
Protection class
| protection class IP | IP20 |
Breaking Capacity
| switching capacity current | 10 A |
Main circuit
| operational current rated value | 10 A |
Appearance
| appearance | not applicable |
| color | miscellaneous |
Product details
| product feature interlock | No |
| product component labeling field | No |
| product feature halogen-free | Yes |
| product feature transparent | No |
Product function
| product function — electronic operation | No |
| product function — mechanical operation | Yes |
Display and operation
| number of keys | 2 |
Mechanical Design

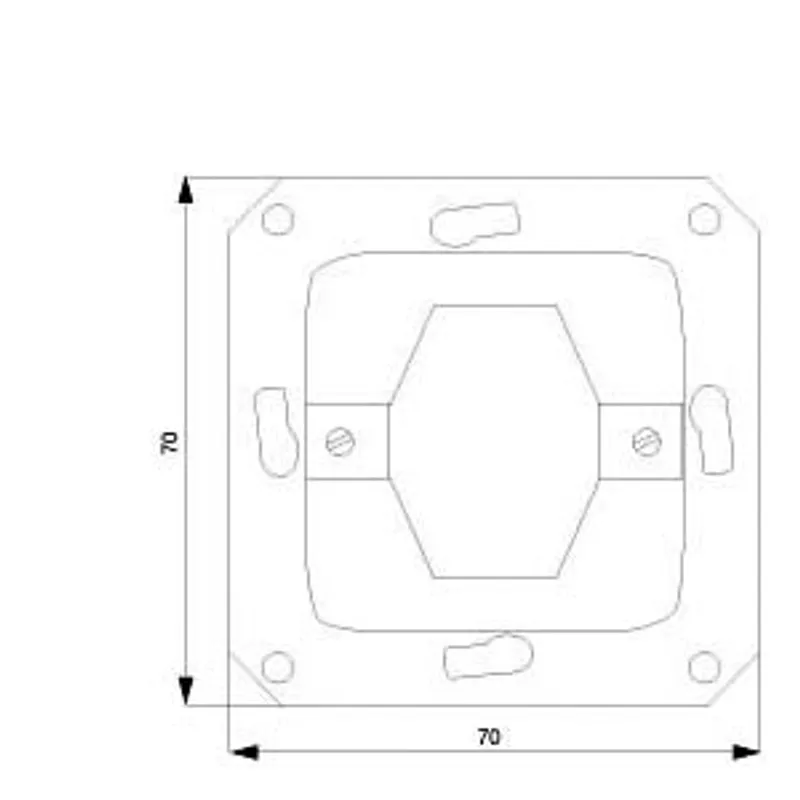

| height | 70 mm |
| fastening method | claw/screw mounting |
| Net Weight | 66 g |
| material of the enclosure | others |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.353 kg |
| global warming potential [CO2 eq] / during operation | 4.49 kg |
| global warming potential [CO2 eq] / after end of life | 0.0164 kg |
| global warming potential [CO2 eq] / total | 4.86 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5TA2114: frequently asked questions
When can 5TA2114 be shipped?
5TA2114 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5TA2114 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5TA2114 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TA2114, subject to availability and destination.
