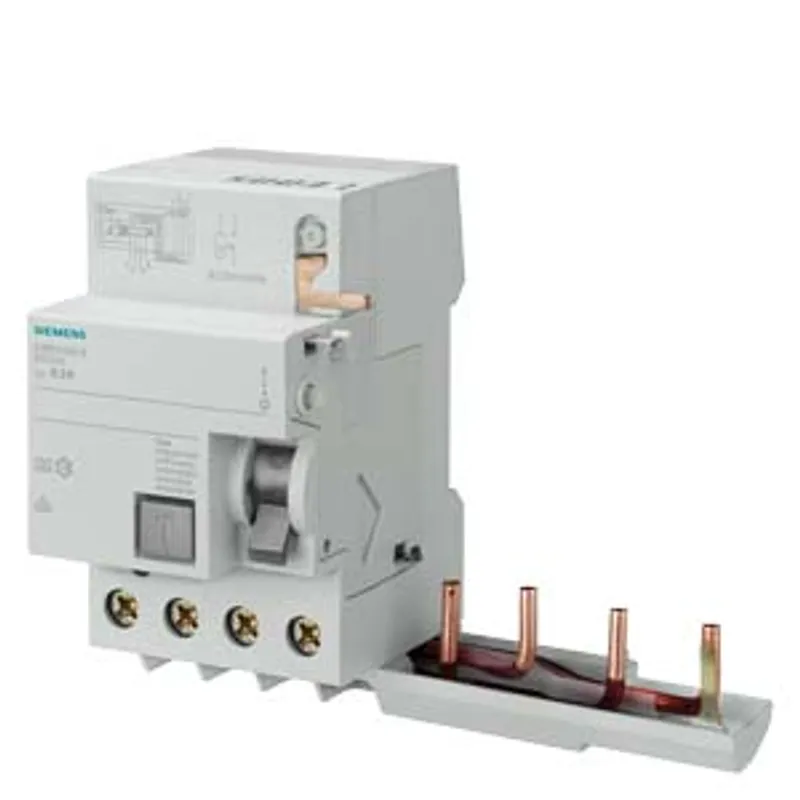

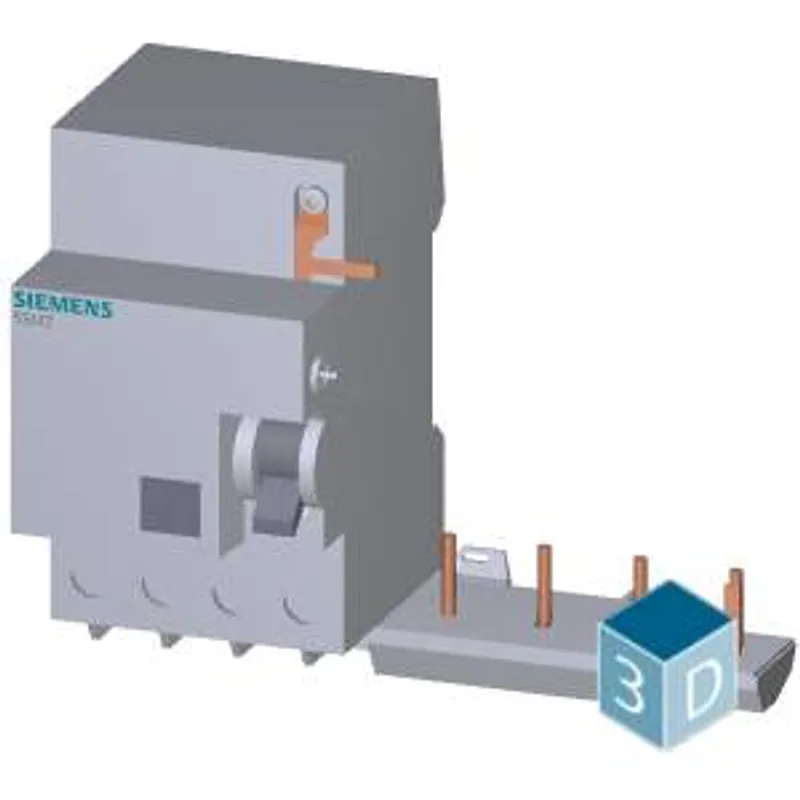

Siemens 5SM2646-0

RC unit for 5SL4, 4-pole, type AC, In: 63 A, 300 mA, Un AC: 400 V

MPN
5SM2646-0
Category
RC Units
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SM2646-0?

RC unit for 5SL4, 4-pole, type AC, In: 63 A, 300 mA, Un AC: 400 V

Specifications

Model

product brand nameSENTRON
product designationRCD-unit
design of the productInstantaneous
product type designation5SM2
product versionfor 5SL4

General technical data

number of poles4
design of pole4 poles
size of installation devices according to DIN 438801
touch protection against electrical shock according to EN 50274Finger and back-of-hand safe
mechanical service life (operating cycles) typical10 000
overvoltage categoryIII
degree of pollution2

Voltage

type of voltage of the operating voltageAC
insulation voltage (Ui) rated value460 V
surge voltage resistance rated value4 000 V
tripping fault current rated value300 mA
operational current — at 40 °C rated value58.6 A
operational current — at 45 °C rated value58.59 A
operational current — at 50 °C rated value56.7 A
operational current — at 55 °C rated value54.81 A
operational current — at 60 °C rated value53.55 A
operational current — at 65 °C rated value52.29 A
operational current — at 70 °C rated value50.4 A
operational current at AC rated value63 A
residual current typeAC
supply voltage — at AC400 V
supply voltage — for testing equipment minimum195 V
value range of the supply voltage frequency50 Hz
value range of the operating frequency50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors
protection function false trippingYes

Dissipation

power loss [W] — for rated value of the current at AC in hot operating state per pole3 W
power loss [W] — maximum9 W

Product details

product feature OFF-delay time adjustableNo
product feature rated fault current adjustableNo
product feature sealableNo

Connections

connectable conductor cross-section solid — minimum1.5 mm²
connectable conductor cross-section solid — maximum25 mm²
connectable conductor cross-section stranded — minimum1.5 mm²
connectable conductor cross-section stranded — maximum25 mm²
tightening torque with screw-type terminals — minimum2.5 N·m
tightening torque with screw-type terminals — maximum3 N·m
position of power supply cordtop or bottom

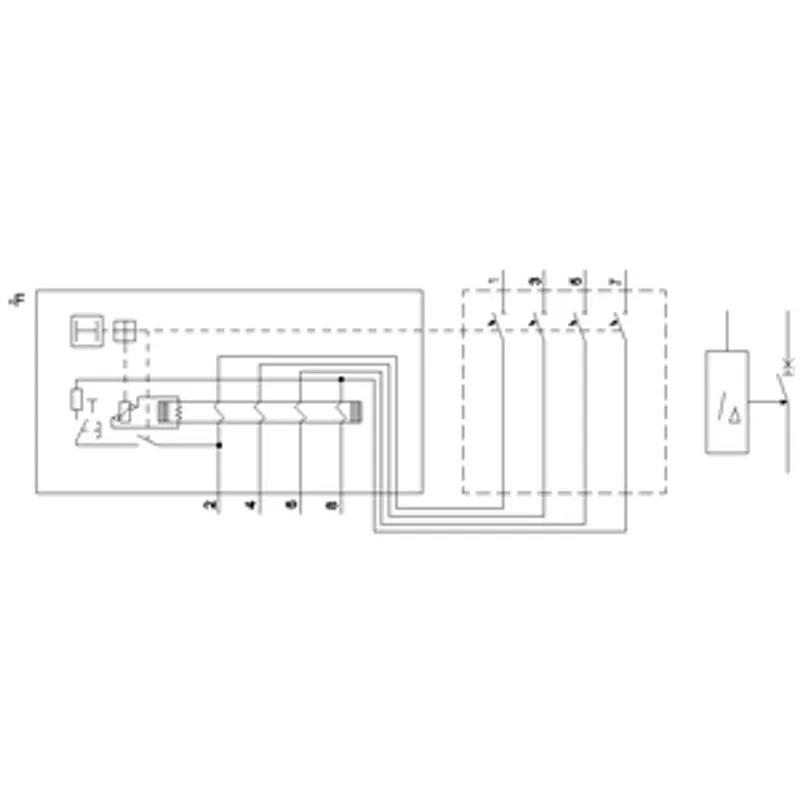

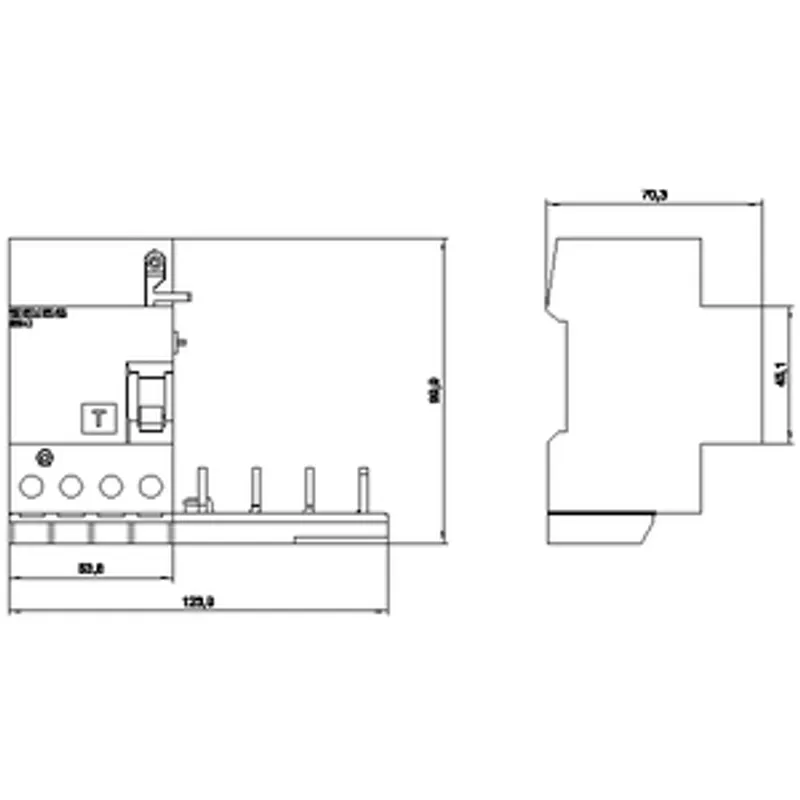

Mechanical Design

height90 mm
width54 mm
depth70 mm
installation depth70 mm
number of modular width units3
fastening methodDIN rail
mounting positionany
Net Weight306 g

Environmental conditions

ambient temperature during operation — minimum-5 °C
ambient temperature during operation — maximum45 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-3028

Certificates

reference code according to IEC 81346-2F

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SM2646-0: frequently asked questions

When can 5SM2646-0 be shipped?

5SM2646-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SM2646-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SM2646-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SM2646-0, subject to availability and destination.
