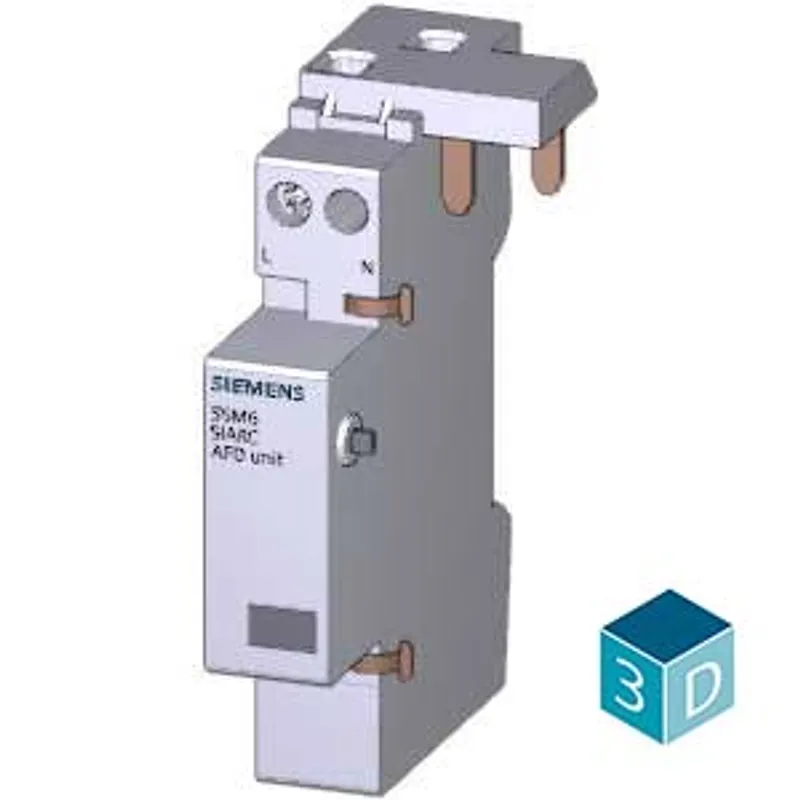

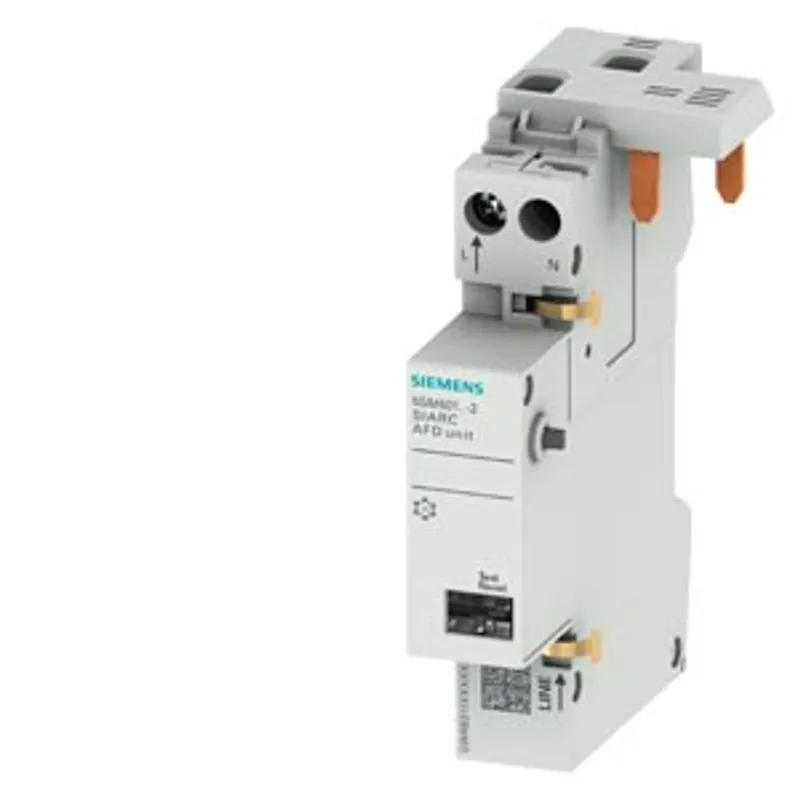

Siemens 5SM6011-2

Arc fault detection device block AFDD, 1-16 A 230 V for MCB or RCBO 1+N 1 MW

MPN
5SM6011-2
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SM6011-2?

Arc fault detection device block AFDD, 1-16 A 230 V for MCB or RCBO 1+N 1 MW

Specifications

Model

product brand nameSENTRON
product designationArc fault detection unit
design of the productfor MCB 5SY60

General technical data

number of poles2
design of pole1P+N
size of installation devices according to DIN 438801
touch protection against electrical shock according to EN 50274finger and back-of-hand safe
mechanical service life (operating cycles) typical10 000
switching function short-term delayedNo
overvoltage category3
degree of pollution2
type of voltage of the operating voltageAC

Supply voltage

supply voltage — at AC230 V
value range of the supply voltage frequency50Hz

Protection class

protection class IPIP20, with connected protective device and conductors

Product details

product feature halogen-freeYes
product feature silicon-freeYes
product extension installable supplementary devicesYes
product function — communication functionNo
product function — other measurement functionNo

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum16 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum16 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum10 mm²
tightening torque with screw-type terminals — minimum2 N·m
tightening torque with screw-type terminals — maximum2.5 N·m
position of power supply cordBottom

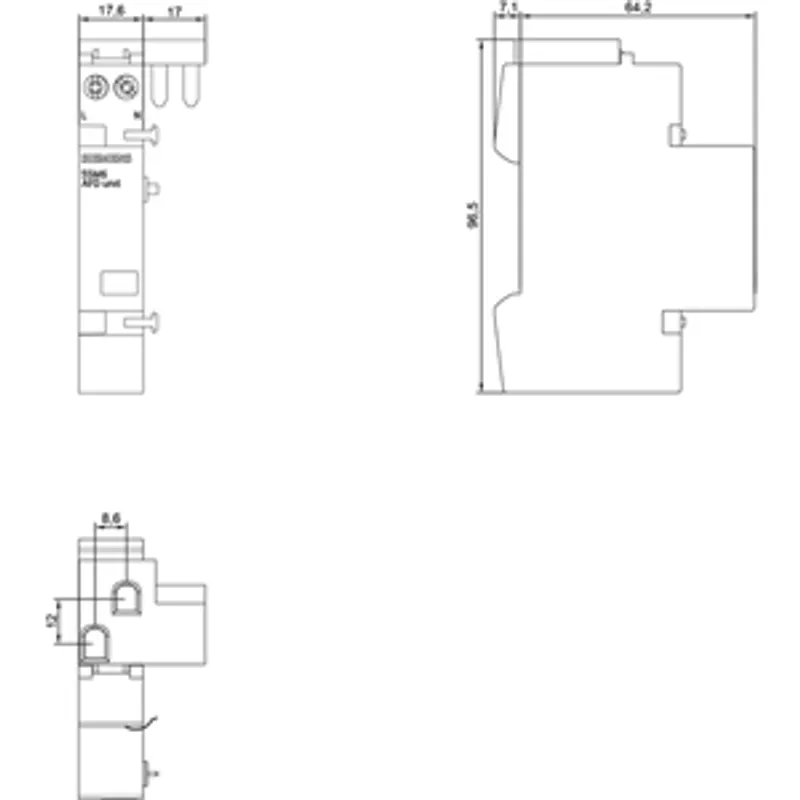

Mechanical Design

height95 mm
width36 mm
depth68.5 mm
installation depth70 mm
number of modular width units1
number of modular width units of the mountable protective device1
fastening methodDIN rail
mounting positionany
Net Weight98 g

Environmental conditions

ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum45 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
ambient temperature with relative humidity 95%55 °C
number of test cycles for environmental testing according to IEC 60068-2-3028

Certificates

reference code according to IEC 81346-2F

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SM6011-2: frequently asked questions

When can 5SM6011-2 be shipped?

5SM6011-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SM6011-2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SM6011-2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SM6011-2, subject to availability and destination.
