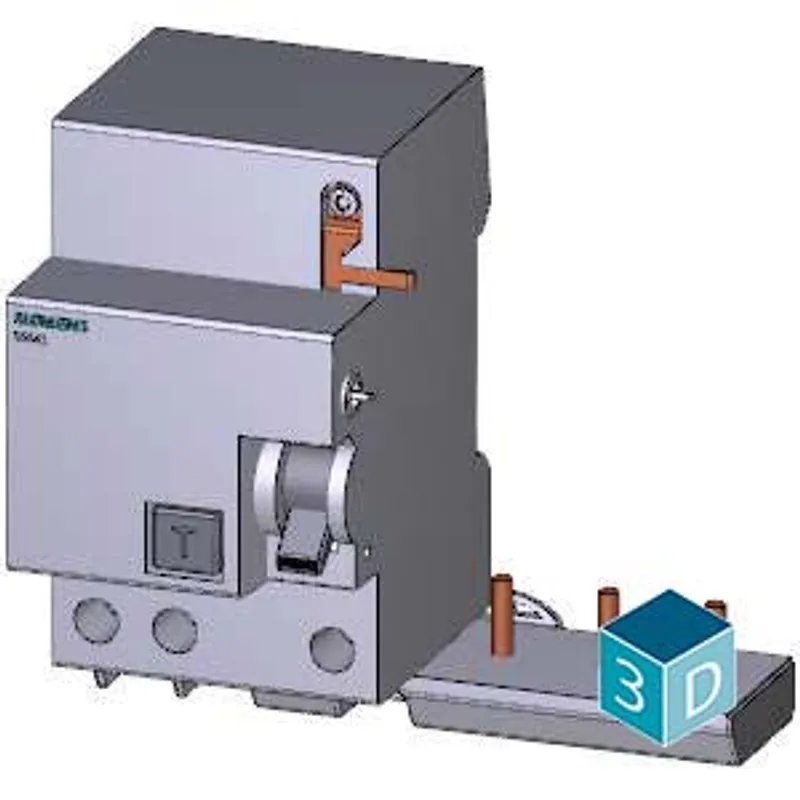

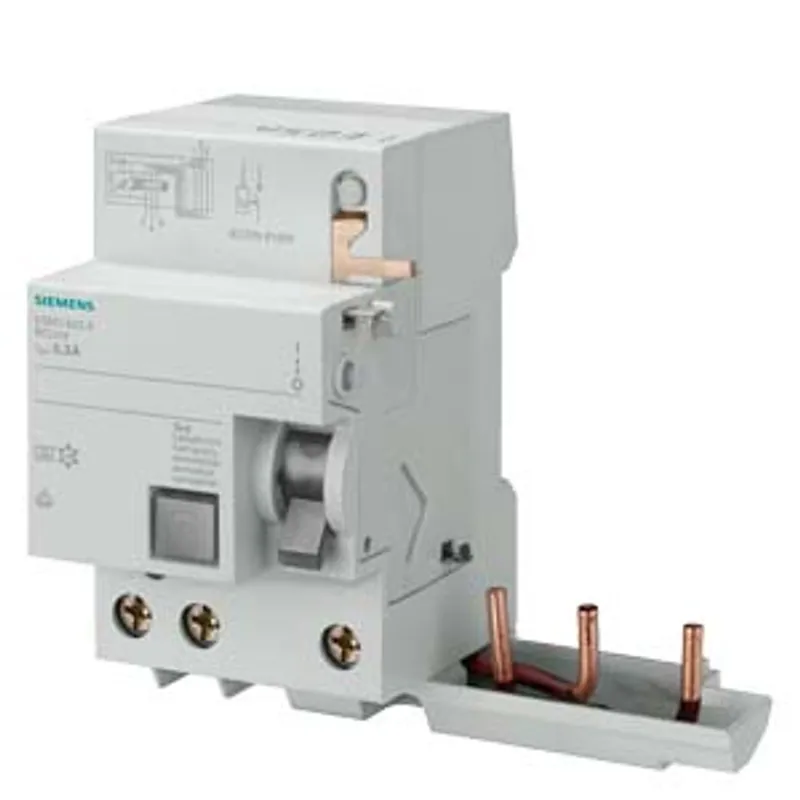

Siemens 5SM2633-0
RC unit for 5SL4, 3-pole, type AC, In: 40 A, 300 mA, Un AC: 400 V
- MPN
- 5SM2633-0
- Category
- RC Units
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5SM2633-0?
RC unit for 5SL4, 3-pole, type AC, In: 40 A, 300 mA, Un AC: 400 V
Specifications
Model
| product brand name | SENTRON |
| product designation | RCD-unit |
| design of the product | Instantaneous |
| product type designation | 5SM2 |
| product version | for 5SL4 |
General technical data
| number of poles | 3 |
| design of pole | 3 poles |
| size of installation devices according to DIN 43880 | 1 |
| touch protection against electrical shock according to EN 50274 | Finger and back-of-hand safe |
| mechanical service life (operating cycles) typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 2 |
Voltage
| type of voltage of the operating voltage | AC |
| insulation voltage (Ui) rated value | 460 V |
| surge voltage resistance rated value | 4 000 V |
| tripping fault current rated value | 300 mA |
| operational current — at 40 °C rated value | 37.2 A |
| operational current — at 45 °C rated value | 37.2 A |
| operational current — at 50 °C rated value | 36 A |
| operational current — at 55 °C rated value | 34.8 A |
| operational current — at 60 °C rated value | 34 A |
| operational current — at 65 °C rated value | 33.2 A |
| operational current — at 70 °C rated value | 32 A |
| operational current at AC rated value | 40 A |
| residual current type | AC |
| supply voltage — at AC | 400 V |
| supply voltage — for testing equipment minimum | 340 V |
| value range of the supply voltage frequency | 50 Hz |
| value range of the operating frequency | 50 Hz |
Protection class
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| protection function false tripping | Yes |
Dissipation
| power loss [W] — for rated value of the current at AC in hot operating state per pole | 1.9 W |
| power loss [W] — maximum | 5.7 W |
Product details
| product feature OFF-delay time adjustable | No |
| product feature rated fault current adjustable | No |
| product feature sealable | No |
Connections
| connectable conductor cross-section solid — minimum | 1.5 mm² |
| connectable conductor cross-section solid — maximum | 25 mm² |
| connectable conductor cross-section stranded — minimum | 1.5 mm² |
| connectable conductor cross-section stranded — maximum | 25 mm² |
| tightening torque with screw-type terminals — minimum | 2.5 N·m |
| tightening torque with screw-type terminals — maximum | 3 N·m |
| position of power supply cord | top or bottom |

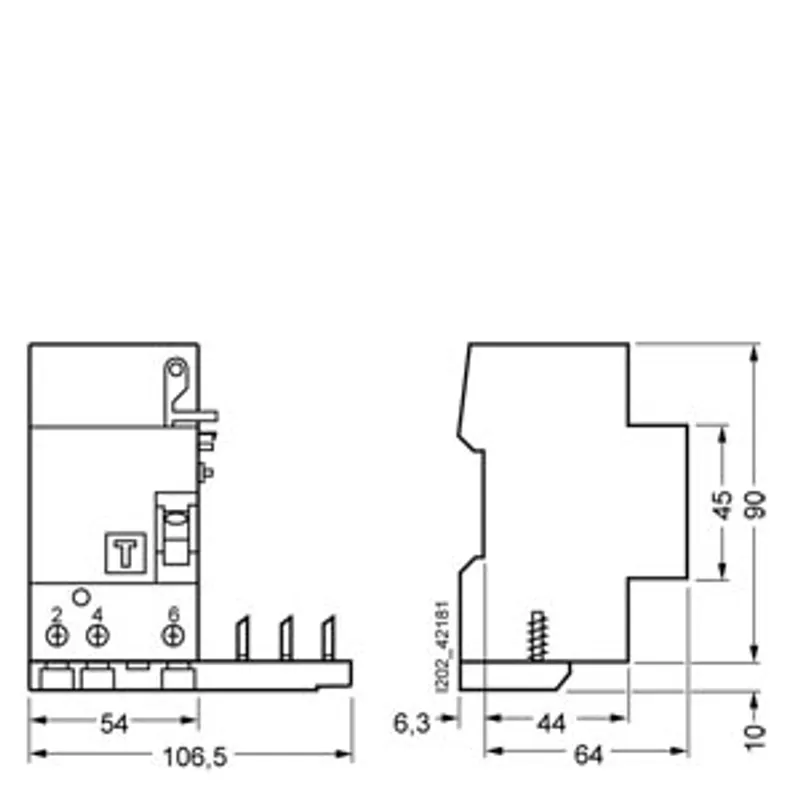

Mechanical Design
| height | 90 mm |
| width | 54 mm |
| depth | 70 mm |
| installation depth | 70 mm |
| number of modular width units | 3 |
| fastening method | DIN rail |
| mounting position | any |
| Net Weight | 280 g |
Environmental conditions
| ambient temperature during operation — minimum | -5 °C |
| ambient temperature during operation — maximum | 45 °C |
| ambient temperature during storage — minimum | -40 °C |
| ambient temperature during storage — maximum | 75 °C |
| number of test cycles for environmental testing according to IEC 60068-2-30 | 28 |
Certificates
| reference code according to IEC 81346-2 | F |
