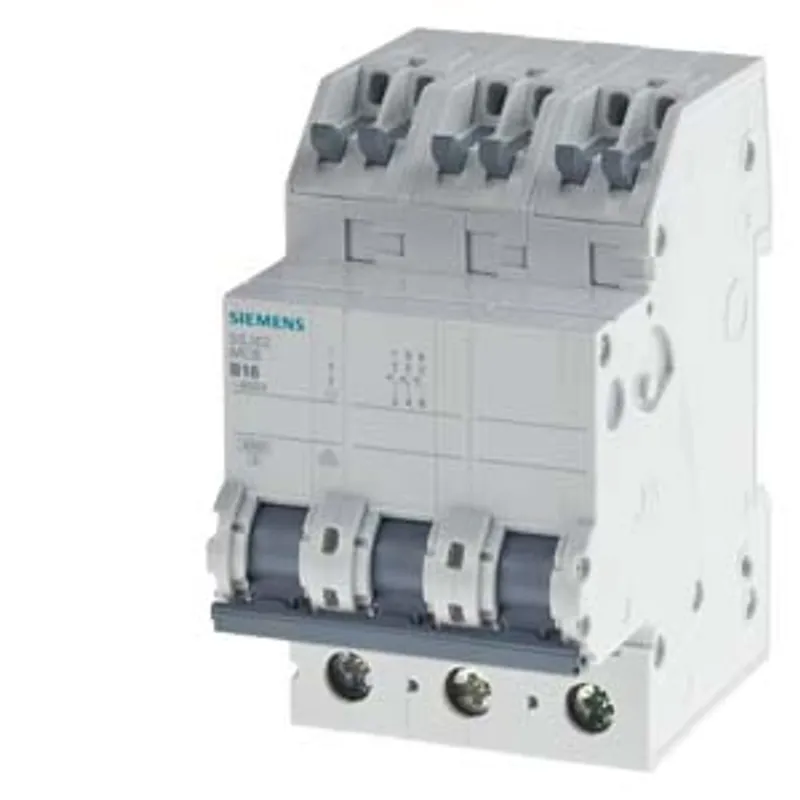

Siemens 5SJ6313-7KS

Miniature circuit breaker 400 V 6kA, 3-pole, C, 13 A, D=70 mm with screwless outgoing terminals

MPN
5SJ6313-7KS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SJ6313-7KS?

Miniature circuit breaker 400 V 6kA, 3-pole, C, 13 A, D=70 mm with screwless outgoing terminals

Specifications

Model

product brand nameSENTRON
product designationMiniature circuit breaker
design of the productMiniature circuit breaker 5SJ6

General technical data

number of poles3
design of pole3P
tripping characteristic classC
mechanical service life (operating cycles) typical20 000
overvoltage category3
degree of pollution2

Voltage

insulation voltage (Ui) at AC rated value440 V
operational current at AC rated value13 A

Supply voltage

supply voltage — at AC400 V
supply voltage — at DC rated value60 V
operating voltage — with multi-phase operation at AC maximum440 V
operating voltage — at DC rated value maximum60 V
supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

switching capacity current — according to EN 60898 rated value6 kA
switching capacity current — according to IEC 60947-2 rated value6 kA
energy limitation class3

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole2 W
suitability for operationResidential buildings/infrastructure

Product details

product feature touch protectionYes
product component neutral conductor switchingNo
product feature halogen-freeYes
product feature sealableYes
product feature silicon-freeYes
product extension installable supplementary devicesNo

Connections

connectable conductor cross-section on plug-type connection using the upper clamping point without core end processing — minimum1.5 mm²
connectable conductor cross-section on plug-type connection using the upper clamping point without core end processing — maximum4 mm²
connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum25 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum25 mm²
connectable conductor cross-section finely stranded with core end processing — minimum1.5 mm²
connectable conductor cross-section finely stranded with core end processing — maximum2.5 mm²

Mechanical Design

height90 mm
width54 mm
depth76 mm
installation depth70 mm
number of modular width units3
fastening methodDIN rail
mounting positionany
Net Weight352 g

Environmental conditions

influence of the surrounding temperaturePeriodically +55°C, max. 95% humidity
ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum45 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SJ6313-7KS: frequently asked questions

When can 5SJ6313-7KS be shipped?

5SJ6313-7KS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SJ6313-7KS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SJ6313-7KS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SJ6313-7KS, subject to availability and destination.
