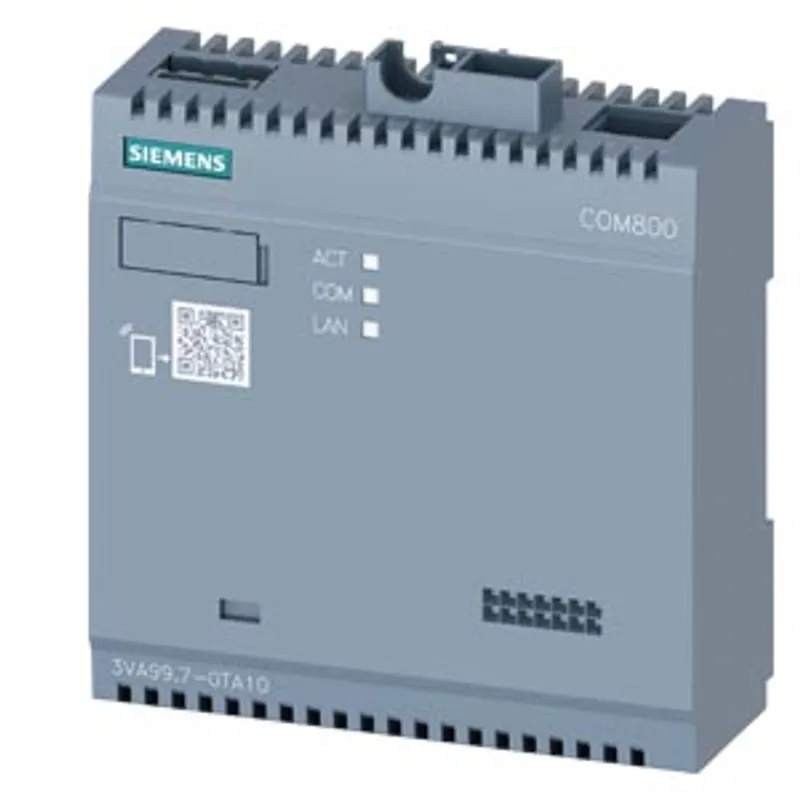

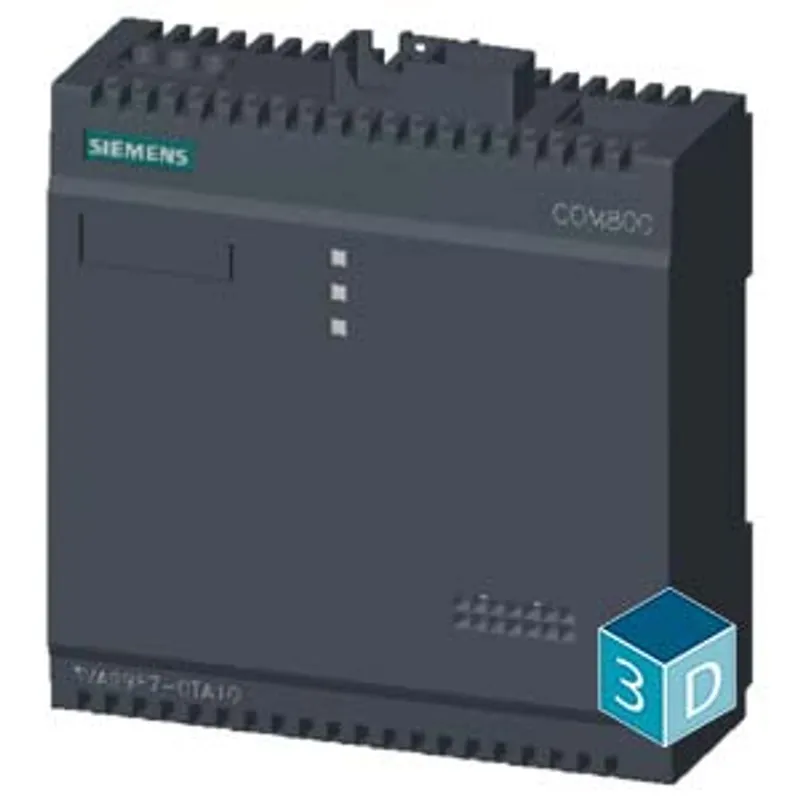

Siemens 3VA9987-0TA10
Data concentrator COM800 accessory for: 3VA2
- MPN
- 3VA9987-0TA10
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9987-0TA10?
data concentrator COM800 accessory for: 3VA2
Specifications
Model
| product brand name | SENTRON |
| product designation | COM800 breaker data server |
| accessories | Communication and measurement function |
General technical data
| suitability for operation | Installation in fixed switchboard inside enclosed rooms |
| mounting position | any |
| degree of pollution | 2 |
| overvoltage category | I |
| operating resource protection class | III (according to IEC 61558) |
| protection class IP | IP20 according to IEC60529 |
Voltage
| Rated control supply voltage Us with DC / maximal | 24 V |
Current
| product function — electronic tripping unit power supply | Yes |
| product function — detection of switch position: On, Off, Tripped | Yes |
| product function — communication with function module | Yes |
| product function — data exchange with the electronic tripping unit | Yes |
| number of interfaces / according to Fast Ethernet | 1 |
| type of electrical connection / of the fast Ethernet interface | RJ45 |
| design of cable / connectable / twisted pair | Yes |
| protocol / at the Ethernet interface / is supported | Modbus TCP |
| transfer rate / 2 / for Ethernet | 100 Mbit/s |
| number of active connections / at the Ethernet interface | 5 |
| product function — at the Ethernet interface / auto-MDI(X) | Yes |
| product function — at the Ethernet interface / serial gateway | Yes |
| product function — at the communication interface / Modbus RTU protocol | Yes |
| number of interfaces / of the circuit breaker communication system | 2 |
| number of bus termination connectors / on circuit breaker communication system | 2 |
| number of circuit breakers / directly connectable | 8 |
| total length / of the circuit breaker communication system | 20 m |
| number of interfaces / for expansion modules | 1 |
| protocol / is supported — PROFIBUS DP protocol | Yes |
| protocol / is supported — PROFINET IO protocol | Yes |
| power loss [W] / rated value | 5 W |
| power loss [W] / of the circuit breaker communication interface / at maximum expansion | 26.9 W |
| control supply voltage / at DC / rated value / maximum | 24 V |
| relative symmetrical tolerance / of the operating range of the control feed voltage | 20 % |
| consumed current / maximum | 1.1 A |

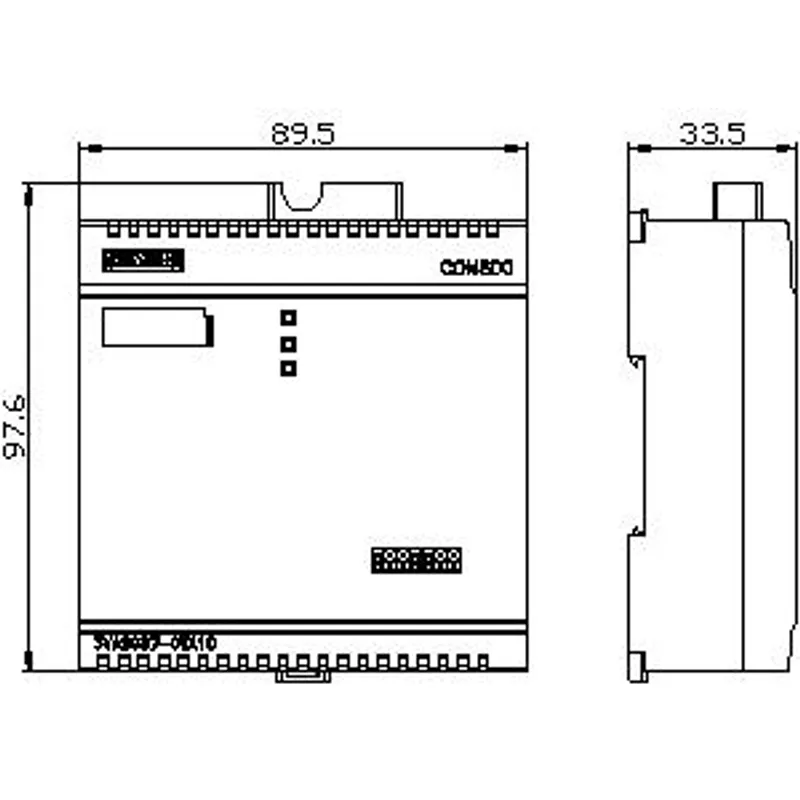

Mechanical Design
| height | 90 mm |
| width | 90 mm |
| number of modular width units | 5 |
| depth | 33.5 mm |
| Net Weight | 206 g |

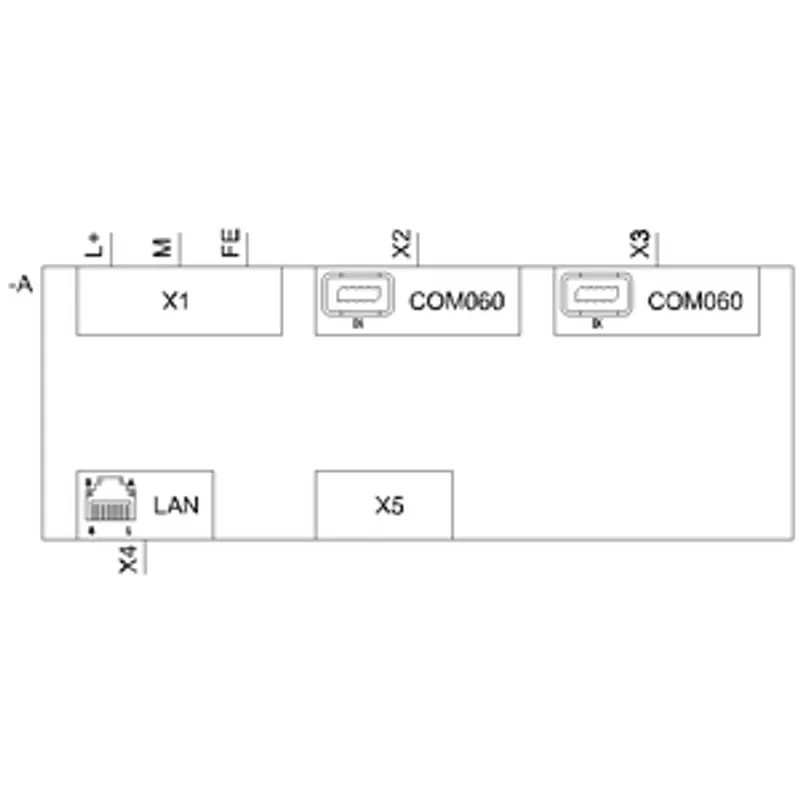

Connections
| type of electrical connection | removable/pluggable |
| type of electrical connection / at the inputs for supply voltage | screw-type terminals |
| connectable conductor cross-section / solid — minimum | 0.5 mm² |
| connectable conductor cross-section / solid — maximum | 2.5 mm² |
| connectable conductor cross-section / finely stranded / with core end processing — minimum | 0.5 mm² |
| connectable conductor cross-section / finely stranded / with core end processing — maximum | 1.5 mm² |
| type of connectable conductor cross-sections / at the digital inputs / for AWG cables / solid | 2x 20 to 14 |
Connections according IEC
| installation depth / with expansion module / maximum | 56.5 mm |
| installation depth / without expansion module / maximum | 33.5 mm |
Environmental conditions
| ambient temperature / during operation — minimum | -25 °C |
| ambient temperature / during operation — maximum | 70 °C |
| ambient temperature / during transport — minimum | -40 °C |
| ambient temperature / during transport — maximum | 80 °C |
| ambient temperature / during storage — minimum | -40 °C |
| ambient temperature / during storage — maximum | 80 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3VA9987-0TA10: frequently asked questions
When can 3VA9987-0TA10 be shipped?
3VA9987-0TA10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3VA9987-0TA10 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3VA9987-0TA10 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA9987-0TA10, subject to availability and destination.
