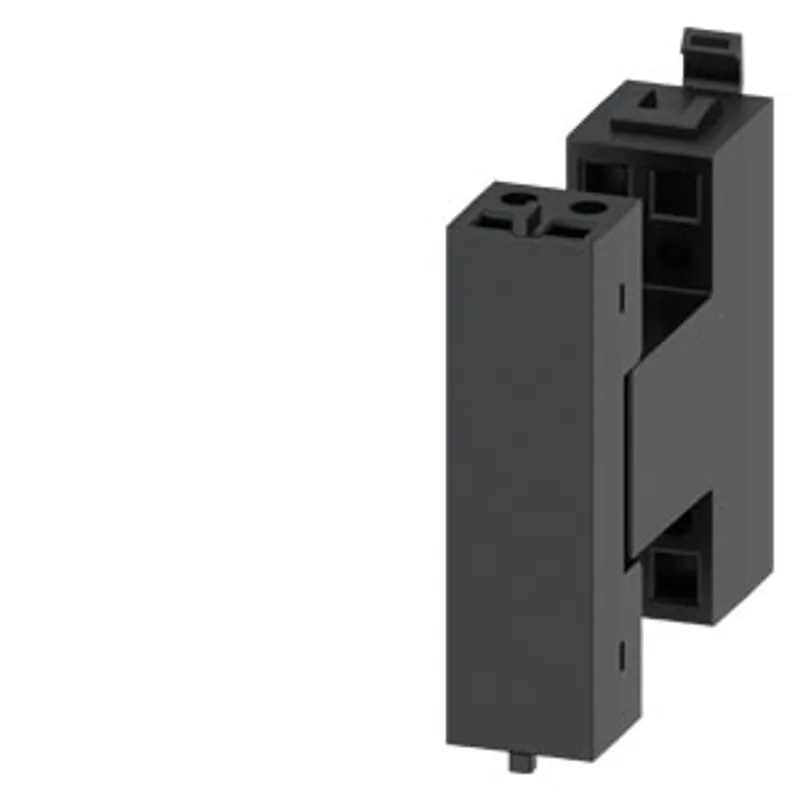

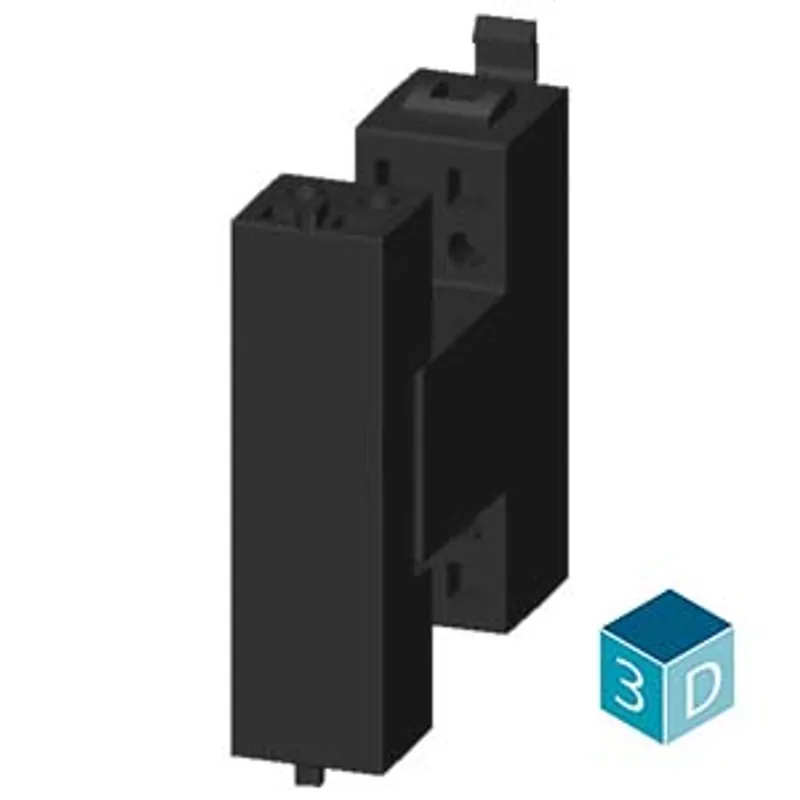

Siemens 3VA9987-0KP80
Auxiliary circuit connector accessory for: all 3VA plug-in units
- MPN
- 3VA9987-0KP80
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9987-0KP80?
auxiliary circuit connector accessory for: all 3VA plug-in units
Specifications
Model
| product brand name | SENTRON |
| product designation | Auxiliary circuit connector |
| accessories | Auxiliary circuit connector |
General technical data
| degree of pollution | 3 |
| overvoltage category | III |
Voltage
| surge voltage resistance | 4 kV |
| operating voltage / at AC / at 50 Hz / rated value / minimum | 500 V |
| operating voltage / at DC / rated value / minimum | 250 V |
Current
| thermal current | 10 A |

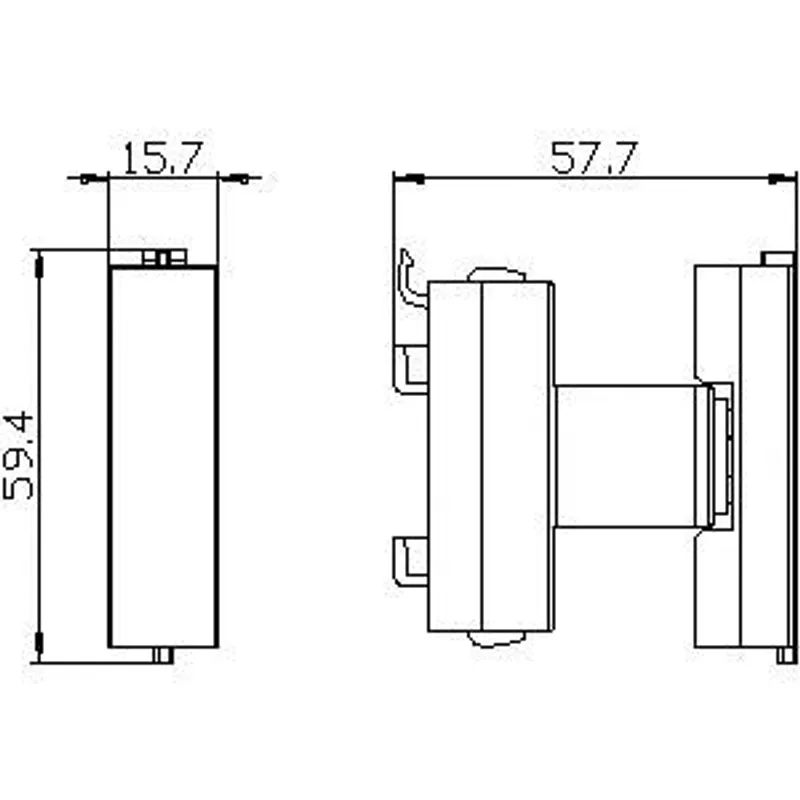

Mechanical Design
| height | 68 mm |
| width | 15 mm |
| depth | 55 mm |
| Net Weight | 75 g |
| tightening torque / with screw-type terminals / minimum | 0.4 N·m |
| tightening torque / with screw-type terminals / maximum | 0.5 N·m |
Connections according IEC
| stripped length | 15 mm |
| AWG number / as coded connectable conductor cross section / for auxiliary contacts — minimum | 20 |
| AWG number / as coded connectable conductor cross section / for auxiliary contacts — maximum | 14 |
Connetctions according UL
| stripped length [in] | 0.6 in |
| tightening torque [lbf·in] / with screw-type terminals / minimum | 3.5 lbf·in |
| tightening torque [lbf·in] / with screw-type terminals / maximum | 4.4 lbf·in |
| ambient temperature / during operation — minimum | -25 °C |
| ambient temperature / during operation — maximum | 70 °C |
| ambient temperature / during storage — minimum | -40 °C |
| ambient temperature / during storage — maximum | 80 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3VA9987-0KP80: frequently asked questions
When can 3VA9987-0KP80 be shipped?
3VA9987-0KP80 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3VA9987-0KP80 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3VA9987-0KP80 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA9987-0KP80, subject to availability and destination.
