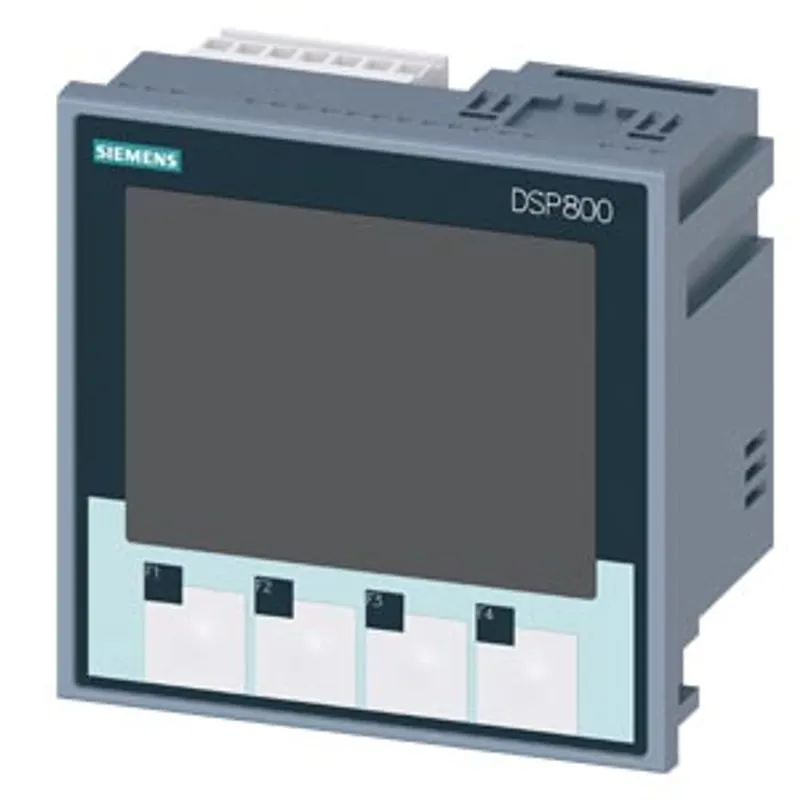

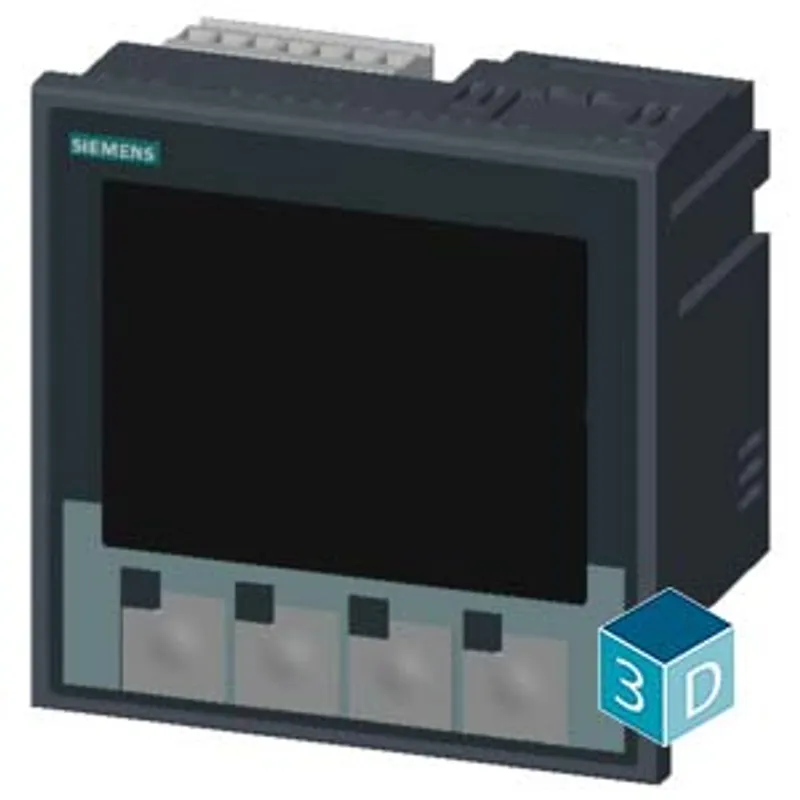

Siemens 3VA9987-0TD10
Display DSP800 accessory for: 1 to 8 units 3VA2 breaker
- MPN
- 3VA9987-0TD10
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9987-0TD10?
display DSP800 accessory for: 1 to 8 units 3VA2 breaker
Specifications
Model
| product brand name | SENTRON |
| product designation | DSP800 display |
| accessories | Communication and measurement function |
General technical data
| suitability for operation | Installation in fixed switchboard inside enclosed rooms |
| mounting position | vertical |
| degree of pollution | 3 |
| overvoltage category | I |
| operating resource protection class | III (according to IEC 61558) |
| protection class IP | IP65 (front) according to IEC60529 |
Voltage
| Rated control supply voltage Us with DC / maximal | 24 V |
Current
| number of interfaces / according to Fast Ethernet | 1 |
| type of electrical connection / of the fast Ethernet interface | RJ45 |
| design of cable / connectable / twisted pair | Yes |
| protocol / at the Ethernet interface / is supported | Modbus TCP |
| transfer rate / 2 / for Ethernet | 100 Mbit/s |
| number of active connections / at the Ethernet interface | 8 |
| product function — at the Ethernet interface / auto-MDI(X) | Yes |
| product function — at the Ethernet interface / serial gateway | Yes |
| power loss [V∙A] / rated value | 2.2 V·A |
| control supply voltage / at DC / rated value / maximum | 24 V |
| consumed current / maximum | 0.09 A |

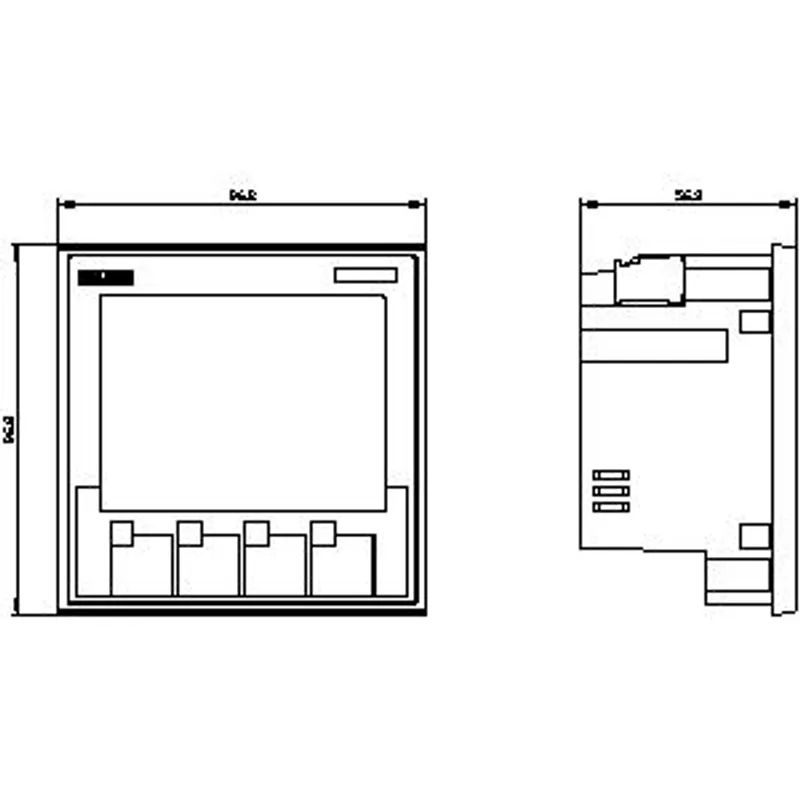

Mechanical Design
| height | 96 mm |
| width | 96 mm |
| depth | 56 mm |
| Net Weight | 273 g |

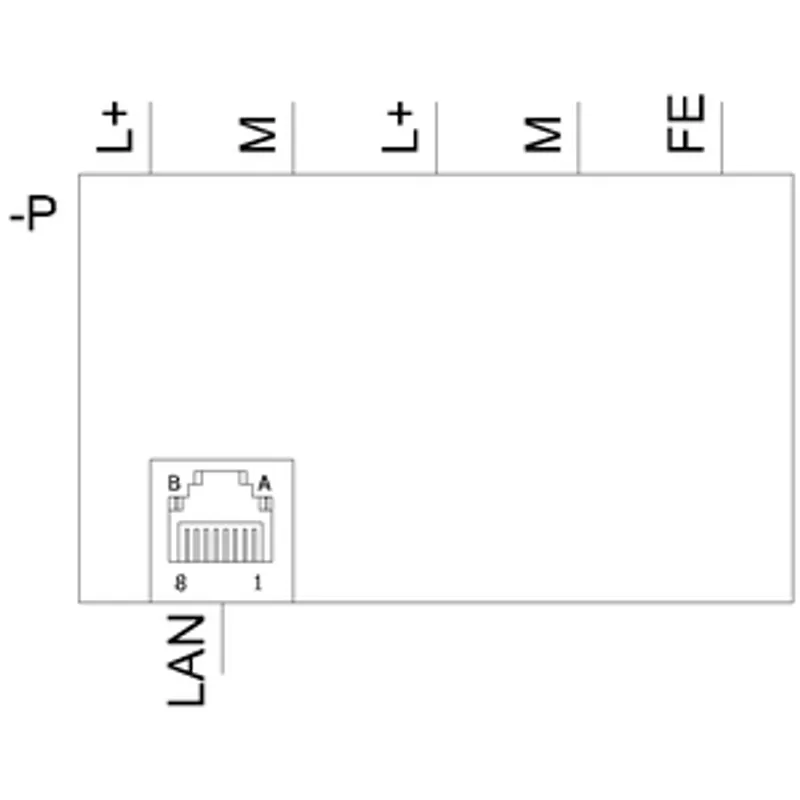

Connections
| type of electrical connection | removable/pluggable |
| type of electrical connection / at the inputs for supply voltage | screw-type terminals |
| connectable conductor cross-section / solid — minimum | 0.5 mm² |
| connectable conductor cross-section / solid — maximum | 2.5 mm² |
| connectable conductor cross-section / finely stranded / with core end processing — minimum | 0.5 mm² |
| connectable conductor cross-section / finely stranded / with core end processing — maximum | 1.5 mm² |
| type of connectable conductor cross-sections / at the digital inputs / for AWG cables / solid | 2x 20 to 14 |
Environmental conditions
| ambient temperature / during operation — minimum | -10 °C |
| ambient temperature / during operation — maximum | 55 °C |
| ambient temperature / during transport — minimum | -25 °C |
| ambient temperature / during transport — maximum | 70 °C |
| ambient temperature / during storage — minimum | -25 °C |
| ambient temperature / during storage — maximum | 70 °C |
