Siemens 3VA9374-0JJ24
Circular conduc. terminal TA2.8 1 x 250...750kcmil
- MPN
- 3VA9374-0JJ24
- Category
- Circuit Protection & Switching
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

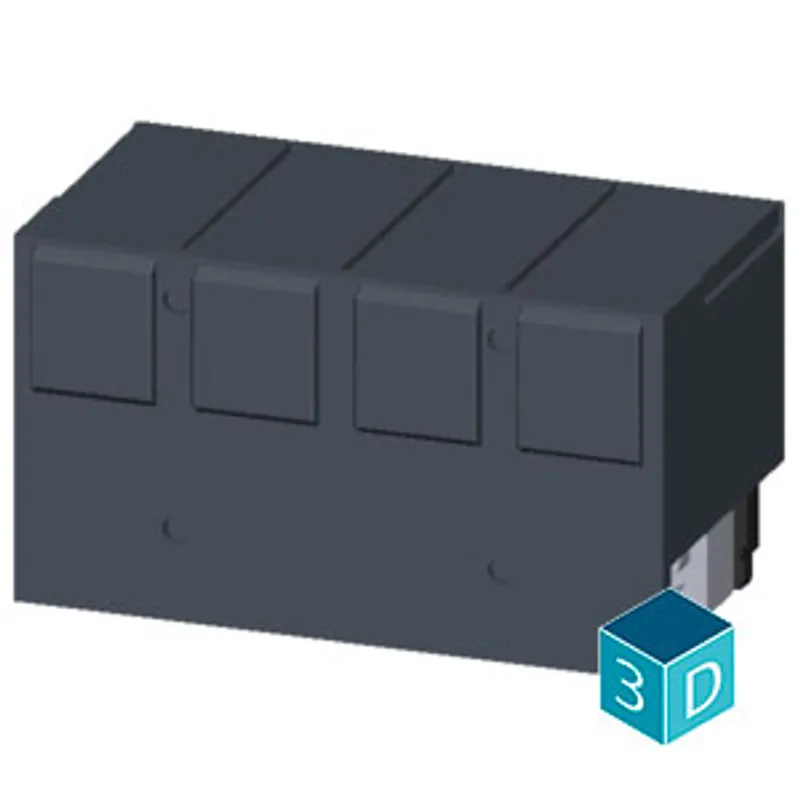

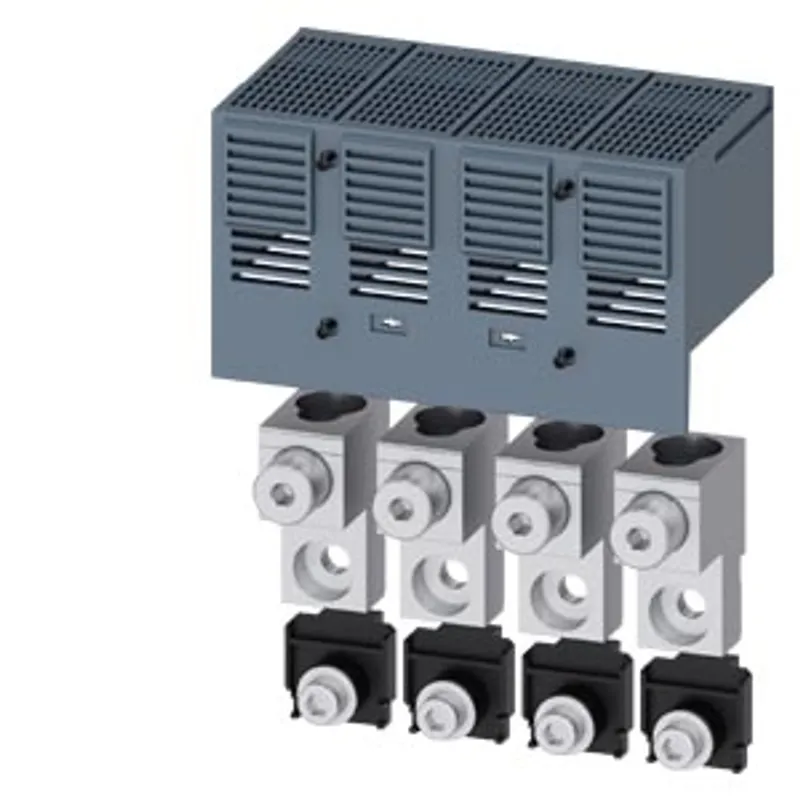

What is the Siemens 3VA9374-0JJ24?
circular conduc. terminal TA2.8 1 x 250...750kcmil;2 x 250kcmil for 1 cable 250 - 750 kcmil or 2 cables 250 kcmil 4 units accessory for: 3VA53/54; 3VA63/64 up to 400 A
Specifications
Model
| product brand name | SENTRON |
| product designation | circular conductor terminal |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TA2.8 |
| type of electrical connection / with control wire tap | No |
Mechanical Design
| Net Weight | 1.16 kg |
Connections according IEC
| stripped length | 38,1 mm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 90 °C |
| stripped length | 1.5 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 250 kcmil |
| connectable conductor cross-section — for copper cable / stranded / maximum | 750 kcmil |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 250 kcmil |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 750 kcmil |
| tightening torque / when using copper cables — stranded | 250-750kcmil: 410.0 lb-in, 250kcmil: 410.0 lb-in |
