Siemens 3VA9374-0JD13

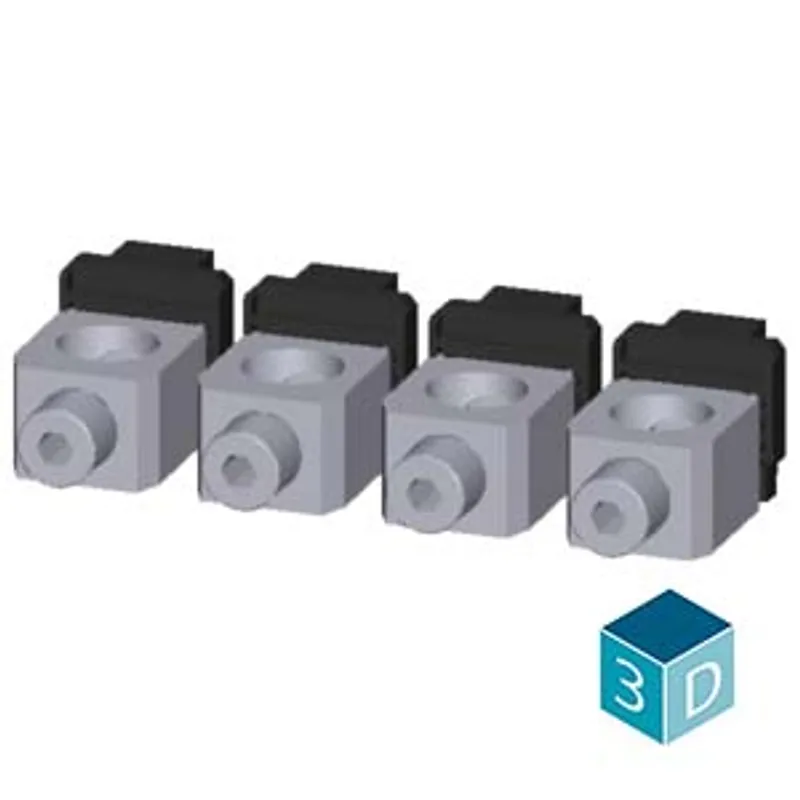

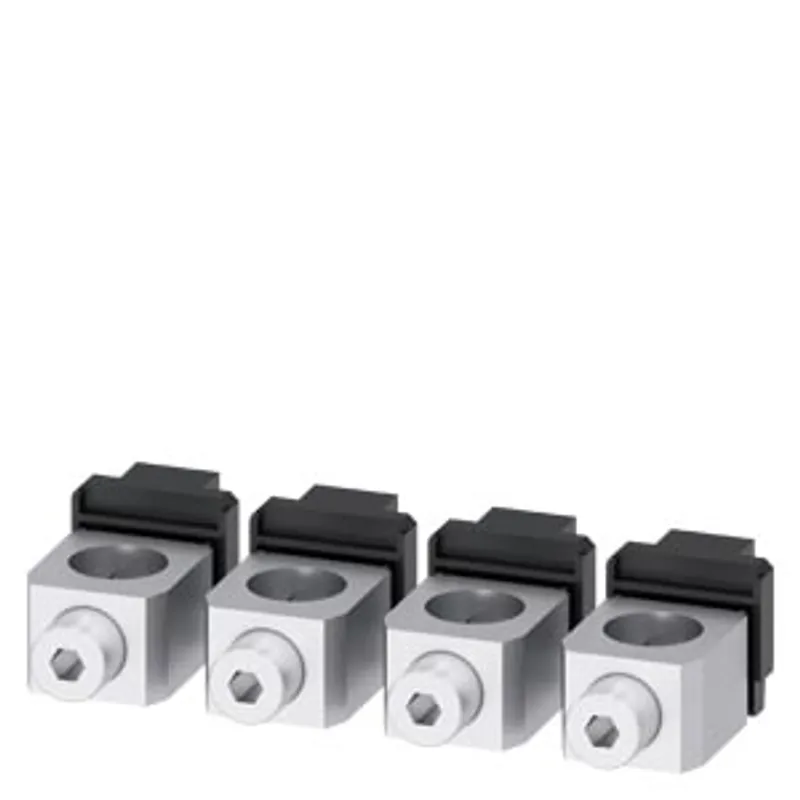

Wire connector TC1.5 1 AWG...600 kcmil Cu 4 units accessory for: 3VA53/54; 3VA63/64
- MPN
- 3VA9374-0JD13
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9374-0JD13?
wire connector TC1.5 1 AWG...600 kcmil Cu 4 units accessory for: 3VA53/54; 3VA63/64
Specifications
Model
| product brand name | SENTRON |
| product designation | circular conductor terminal |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TC1.5 |
| type of electrical connection / with control wire tap | No |
Mechanical Design
| Net Weight | 1.221 kg |
Connections according IEC
| stripped length | 28 mm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 90 °C |
| stripped length | 1.1 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 1 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 600 kcmil |
| tightening torque / when using copper cables — stranded | 1 AWG - 600 kcmil: 500 lb-in |
