Siemens 3VA9374-0JG13
Wire connector TA1.5 1 AWG...600 kcmil max. 400 A Cu cable with control wire voltage tap 4 units accessory…
- MPN
- 3VA9374-0JG13
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

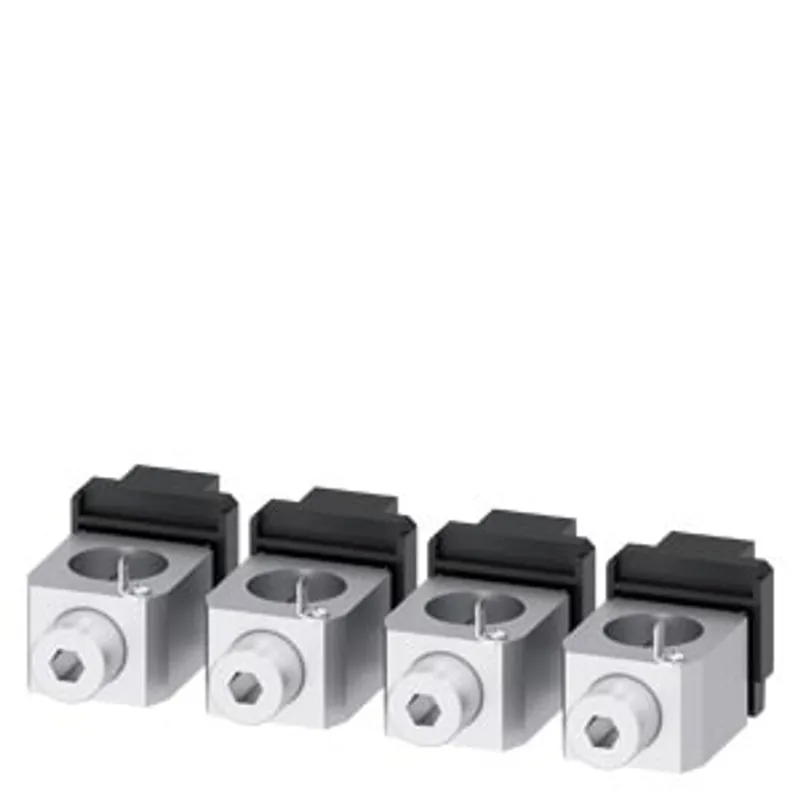

What is the Siemens 3VA9374-0JG13?
wire connector TA1.5 1 AWG...600 kcmil max. 400 A Cu cable with control wire voltage tap 4 units accessory for: 3VA53/54; 3VA63/64
Specifications
Model
| product brand name | SENTRON |
| product designation | Circular conductor terminal voltage tap 4 units |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TA1.5 |
| type of electrical connection / with control wire tap | Yes |
Mechanical Design
| Net Weight | 524 g |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 50 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 300 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 50 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 300 mm² |
| stripped length | 28 mm |
| tightening torque / when using copper cables — stranded | 50 - 300 mm²: 42.4 Nm |
| tightening torque / when using copper cables — finely stranded | 50 - 240 mm²: 42.4 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 50 - 185 mm²: 42.4 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 1.1 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 1 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 600 kcmil |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 1 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 600 kcmil |
| tightening torque / when using copper cables — stranded | 1 AWG - 600 kcmil: 375 lb-in |
