Siemens 3VA9244-0JD12

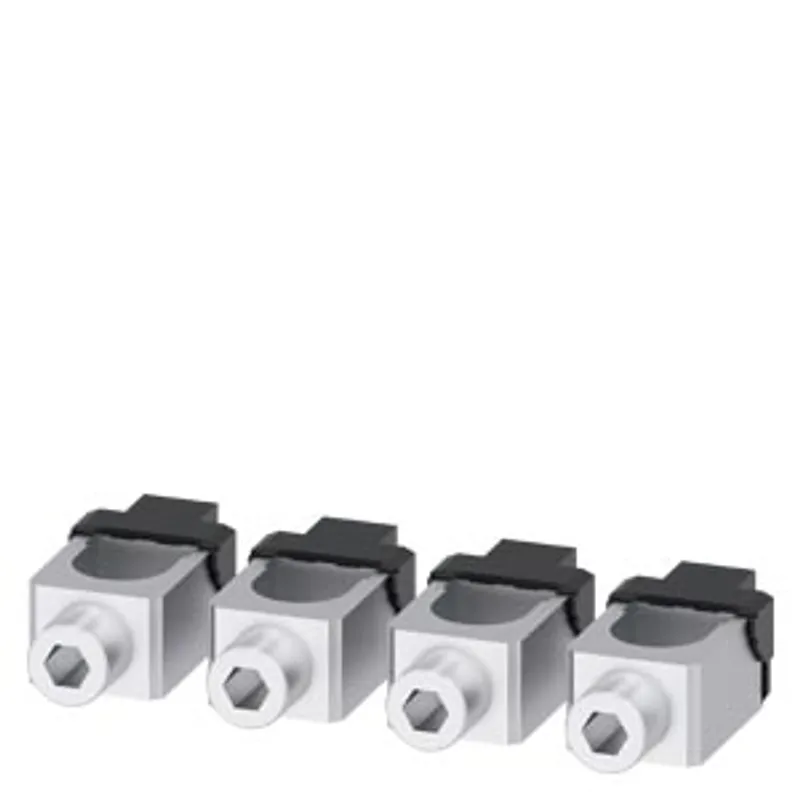

Wire connector TC1.4 6 AWG...350 kcmil Cu 4 units accessory for: 3VA61/62

MPN: 3VA9244-0JD12
Category: Accessories and Spare Parts

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA9244-0JD12?

wire connector TC1.4 6 AWG...350 kcmil Cu 4 units accessory for: 3VA61/62

Specifications

Model

product brand name	SENTRON
product designation	circular conductor terminal
design of the product	Connection method
accessories	Wire connector

General technical data

designation / of the terminal	TC1.4
type of electrical connection / with control wire tap	No

Mechanical Design

Net Weight

423 g

Connections according IEC

stripped length

20 mm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B	90 °C
stripped length	0.8 in
connectable conductor cross-section — for copper cable / stranded / minimum	6 AWG
connectable conductor cross-section — for copper cable / stranded / maximum	350 kcmil
tightening torque / when using copper cables — stranded	6 - 2 AWG: 140 lb-in; 1 AWG - 350 kcmil: 275 lb-in
