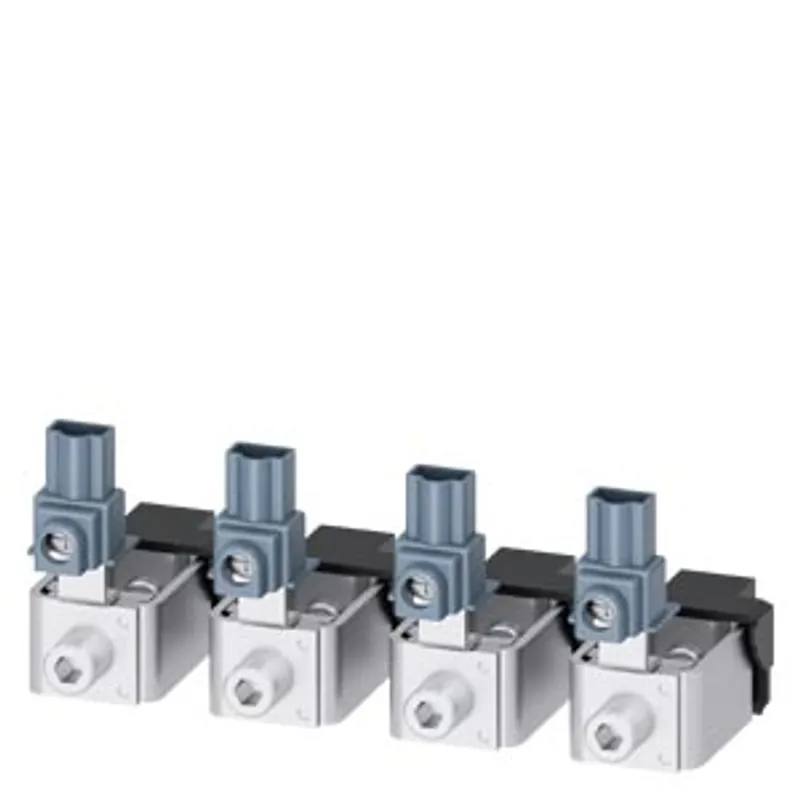

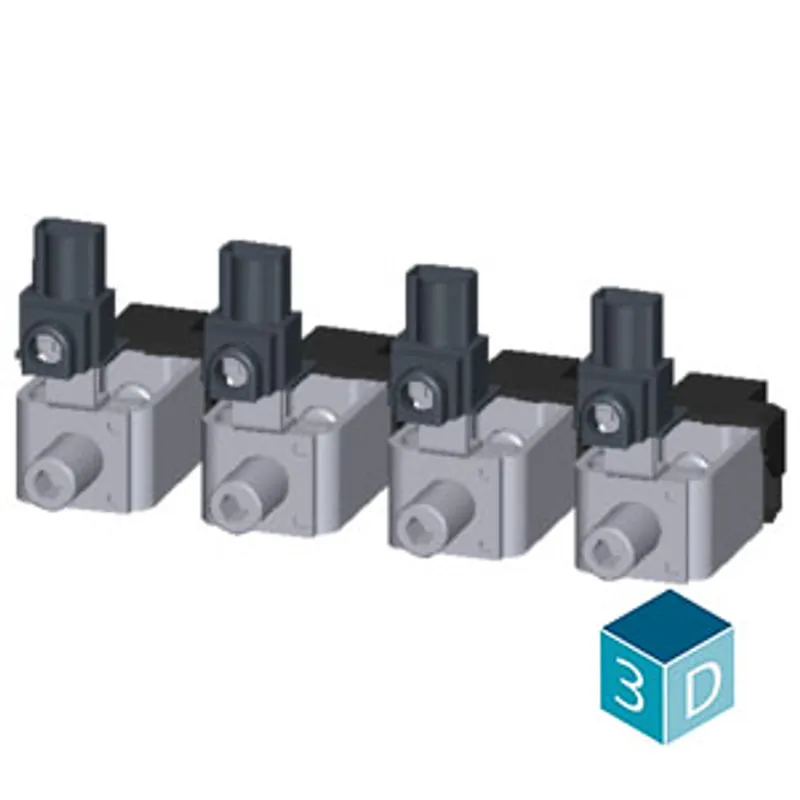

Siemens 3VA9244-0JH12
Box terminal TS1.4 4 units 4 AWG...350 kcmil with control wire voltage tap 4 units accessory for: 3VA61/62
- MPN
- 3VA9244-0JH12
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9244-0JH12?
box terminal TS1.4 4 units 4 AWG...350 kcmil with control wire voltage tap 4 units accessory for: 3VA61/62
Specifications
Model
| product brand name | SENTRON |
| product designation | Box terminal with voltage tap 4 units |
| design of the product | Connection method |
| accessories | Box terminal |
General technical data
| designation / of the terminal | TS1.4 |
| type of electrical connection / with control wire tap | Yes |
Mechanical Design
| Net Weight | 310 g |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 25 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 185 mm² |
| type of connectable conductor cross-sections / of the laminated conductor rails — minimum | 5 x 15.5mm x 0.8mm, 4 x 20mm x 1mm |
| type of connectable conductor cross-sections / of the laminated conductor rails — maximum | 6 x 15.5mm x 0.8mm, 6 x 20mm x 1mm |
| stripped length | 19 mm |
| tightening torque / when using copper cables — stranded | 25 - 35 mm²: 6 Nm, 50 - 185 mm²: 12 Nm |
| tightening torque / when using copper cables — finely stranded | 35 mm²: 6 Nm 50 -150 mm²: 12 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 25 - 35 mm²: 6 Nm, 50 -150 mm²: 12 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 0.75 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 4 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 350 kcmil |
| tightening torque / when using copper cables — stranded | 4 - 1 AWG: 70 lb-in; 1/0 AWG - 350 kcmil: 140 lb-in |
