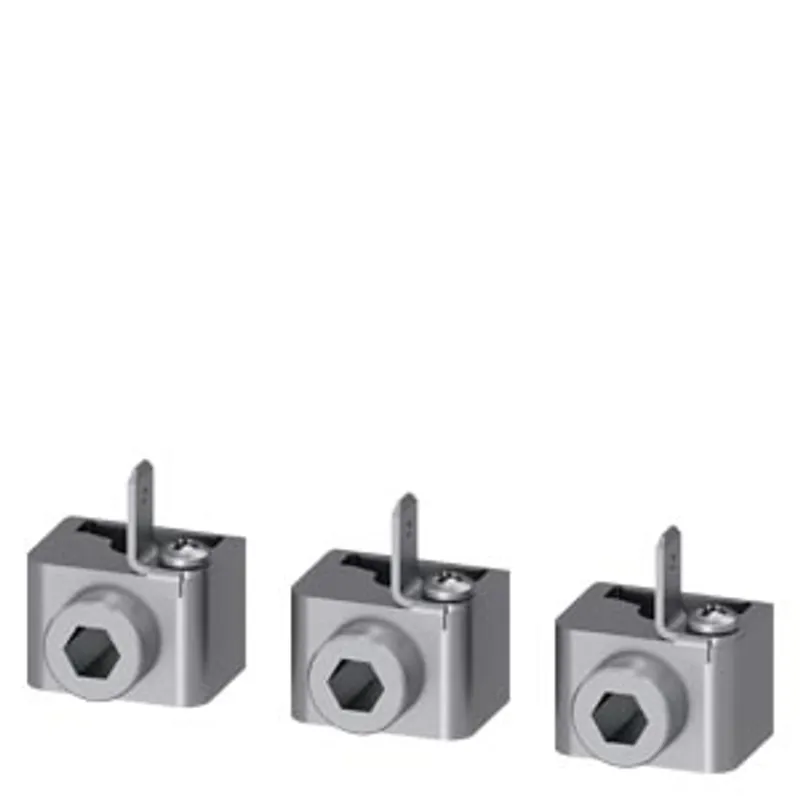

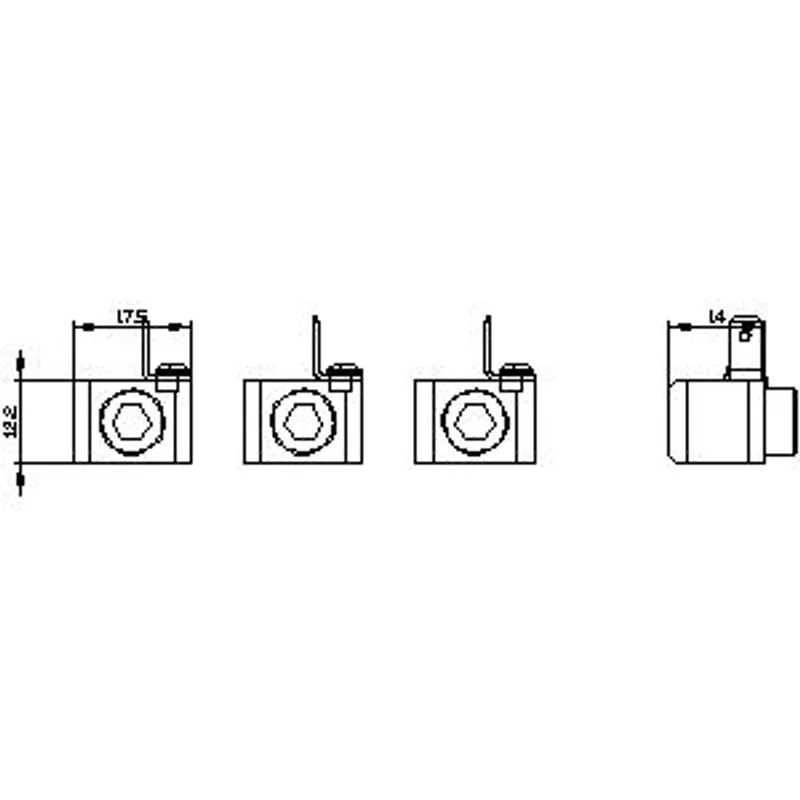

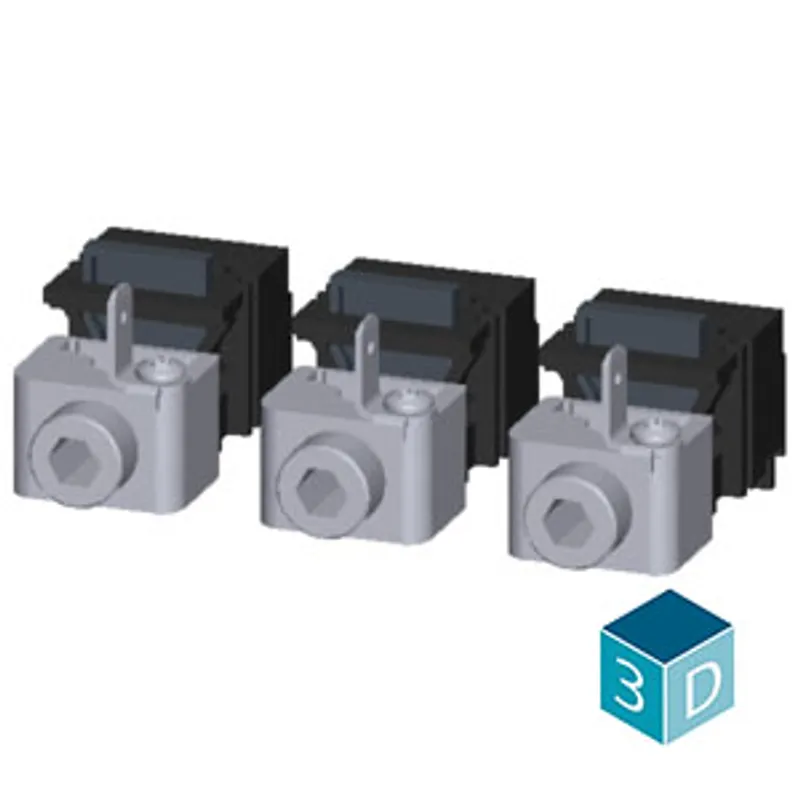

Siemens 3VA9113-0JG10
Circular conduc. terminal TA1.0 1.5…10 mm² with aux. conductor voltage tap 3 units accessory for: 3VA10/11
- MPN
- 3VA9113-0JG10
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9113-0JG10?
circular conduc. terminal TA1.0 1.5…10 mm² with aux. conductor voltage tap 3 units accessory for: 3VA10/11
Specifications
Model
| product brand name | SENTRON |
| product designation | Circular conductor terminal voltage tap 3 units |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TA1.0 |
| type of electrical connection / with control wire tap | Yes |
Mechanical Design
| Net Weight | 51 g |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 1.5 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 10 mm² |
| stripped length | 12,2 mm |
| tightening torque / when using copper cables — solid | 1.5-2.5 mm²: 2.3 Nm, 4-6 mm²: 4 Nm, 10 mm²: 6.2 Nm |
| tightening torque / when using copper cables — stranded | 1.5-2.5 mm²: 2.3 Nm; 4-6 mm²: 4 Nm; 10 mm²: 6.2 Nm |
| tightening torque / when using copper cables — finely stranded | 1.5 - 2.5 mm²: 2.3 Nm, 4 - 6 mm²: 4 Nm, 10 mm²: 6.2 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 1.5 - 2.5 mm²: 2.3 Nm, 4 - 6 mm²: 4 Nm, 10 mm²: 6.2 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 0.48 in |
| connectable conductor cross-section — for copper cable / solid / minimum | 14 AWG |
| connectable conductor cross-section — for copper cable / solid / maximum | 10 AWG |
| connectable conductor cross-section — for copper cable / stranded / minimum | 14 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 8 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 8 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 8 AWG |
| tightening torque / when using copper cables — solid | 14 AWG: 20 lb-in, 12-10 AWG: 35 lb-in |
| tightening torque / when using copper cables — stranded | 14 AWG: 20 lb-in 12-10 AWG: 35 lb-in 8 AWG: 55 lb-in |
