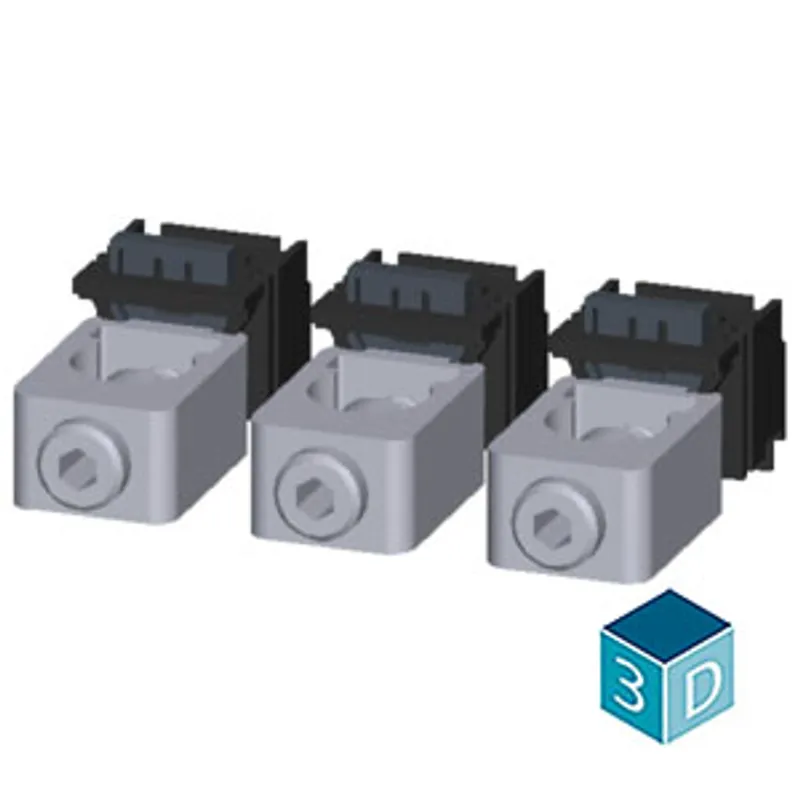

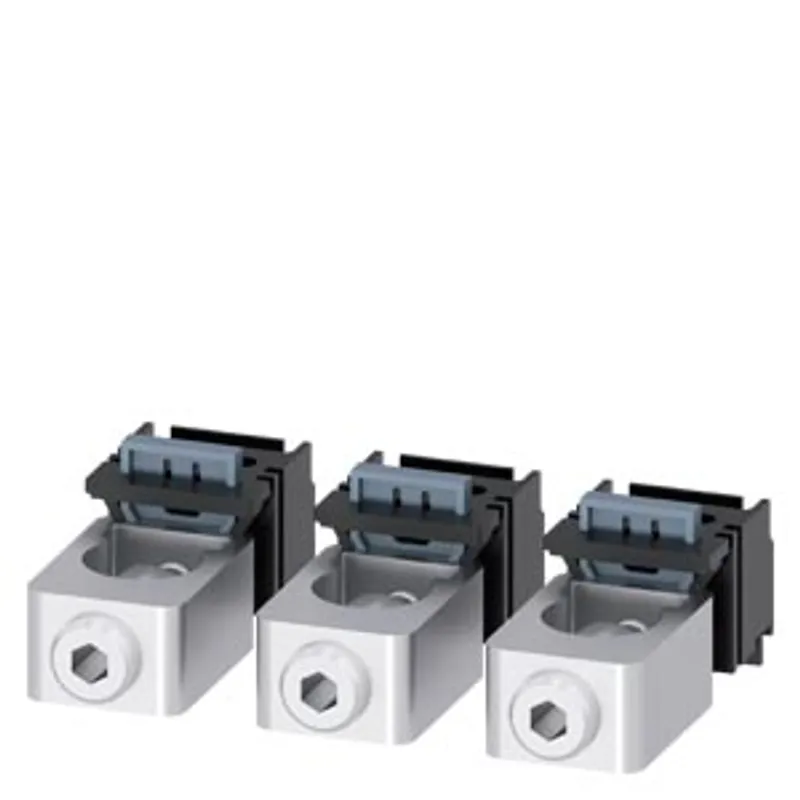

Siemens 3VA9113-0JB11
Circular conduc. terminal TA1.1 10…95 mm² 3 units accessory for: 3VA10/11
- MPN
- 3VA9113-0JB11
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9113-0JB11?
circular conduc. terminal TA1.1 10…95 mm² 3 units accessory for: 3VA10/11
Specifications
Model
| product brand name | SENTRON |
| product designation | Circular conductor terminal 1 cable 3 units |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TA1.1 |
| type of electrical connection / with control wire tap | No |
Mechanical Design
| Net Weight | 55 g |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 10 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 95 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 10 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 95 mm² |
| stripped length | 12,2 mm |
| tightening torque / when using copper cables — solid | 10mm²: 6.2 Nm, 16mm²: 11.3 Nm |
| tightening torque / when using copper cables — stranded | 10mm²: 6.2 Nm, 16 - 95 mm²: 11.3 Nm |
| tightening torque / when using copper cables — finely stranded | 10mm²: 6.2 Nm, 16 - 35mm²: 11.3 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 10 - 16 mm²: 6.2 Nm, 25 - 50 mm²: 7.9 Nm, 70 mm²: 11.3 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 0.48 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 8 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 3/0 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 8 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 3/0 AWG |
| tightening torque / when using copper cables — stranded | 8 AWG: 55 lb-in, 6-3/0 AWG: 100 lb-in |
