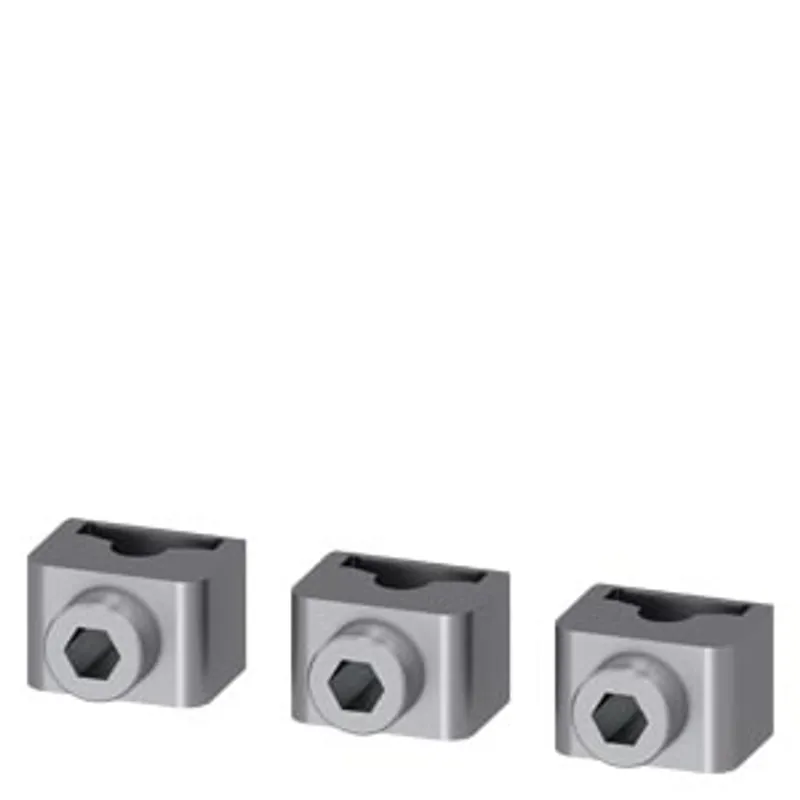

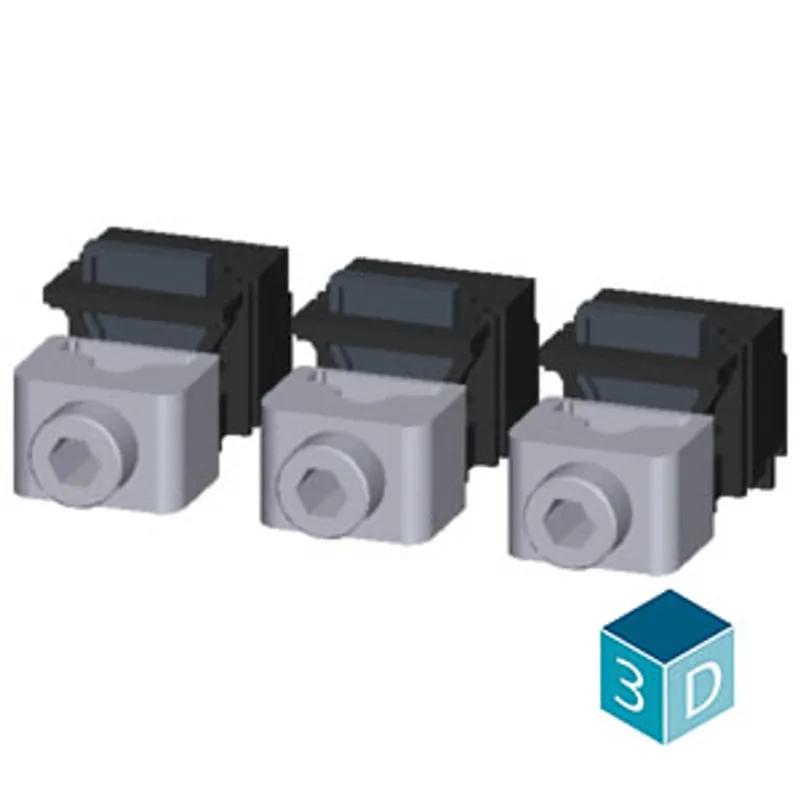

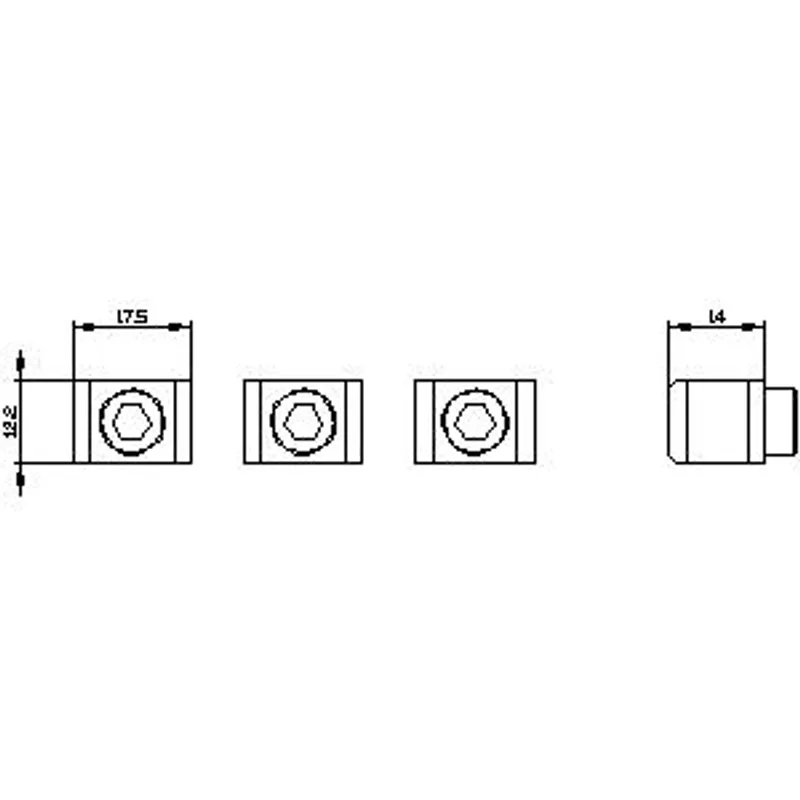

Siemens 3VA9113-0JB10

Circular conduc. terminal TA1.0 1.5…10 mm² 3 units accessory for: 3VA10/11

MPN: 3VA9113-0JB10
Category: Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA9113-0JB10?

circular conduc. terminal TA1.0 1.5…10 mm² 3 units accessory for: 3VA10/11

Specifications

Model

product brand name	SENTRON
product designation	Circular conductor terminal 1 cable 3 units
design of the product	Connection method
accessories	Wire connector

General technical data

designation / of the terminal	TA1.0
type of electrical connection / with control wire tap	No

Mechanical Design

Net Weight

47 g

Connections according IEC

connectable conductor cross-section — for copper cable / stranded / minimum	1.5 mm²
connectable conductor cross-section — for copper cable / stranded / maximum	10 mm²
stripped length	12,2 mm
tightening torque / when using copper cables — solid	1.5-2.5 mm²: 2.3 Nm, 4-6 mm²: 4 Nm, 10 mm²: 6.2 Nm
tightening torque / when using copper cables — stranded	1.5-2.5 mm²: 2.3 Nm; 4-6 mm²: 4 Nm; 10 mm²: 6.2 Nm
tightening torque / when using copper cables — finely stranded	1.5 - 2.5 mm²: 2.3 Nm, 4 - 6 mm²: 4 Nm, 10 mm²: 6.2 Nm
tightening torque / when using copper cables — finely stranded / with core end processing	1.5 - 2.5 mm²: 2.3 Nm, 4 - 6 mm²: 4 Nm, 10 mm²: 6.2 Nm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B	75 °C
stripped length	0.48 in
connectable conductor cross-section — for copper cable / solid / minimum	14 AWG
connectable conductor cross-section — for copper cable / solid / maximum	10 AWG
connectable conductor cross-section — for copper cable / stranded / minimum	14 AWG
connectable conductor cross-section — for copper cable / stranded / maximum	8 AWG
connectable conductor cross-section — for aluminum cable / stranded / minimum	8 AWG
connectable conductor cross-section — for aluminum cable / stranded / maximum	8 AWG
tightening torque / when using copper cables — solid	14 AWG: 20 lb-in, 12-10 AWG: 35 lb-in
tightening torque / when using copper cables — stranded	14 AWG: 20 lb-in 12-10 AWG: 35 lb-in 8 AWG: 55 lb-in
