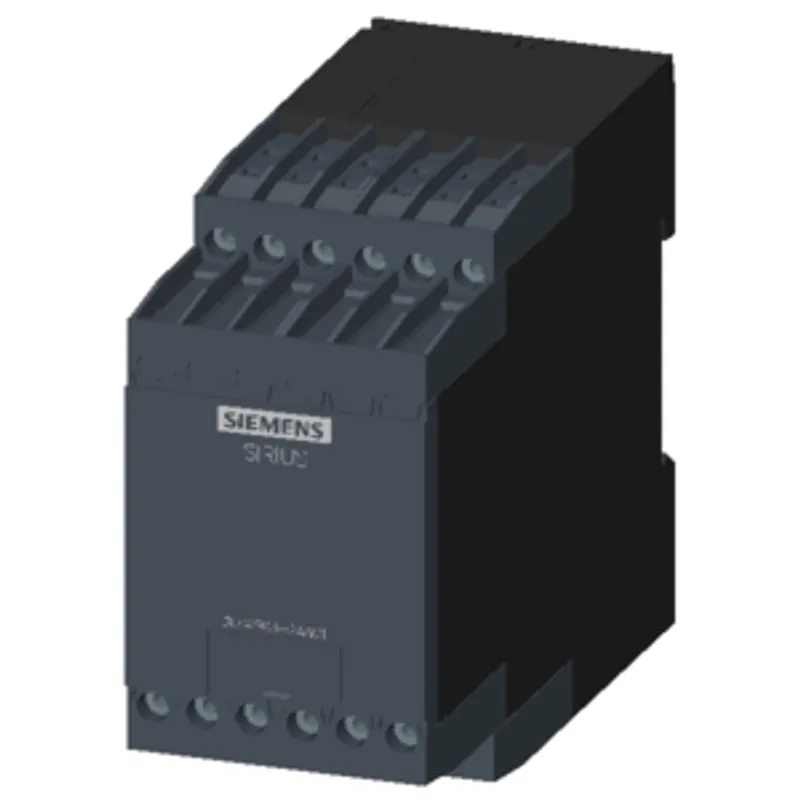

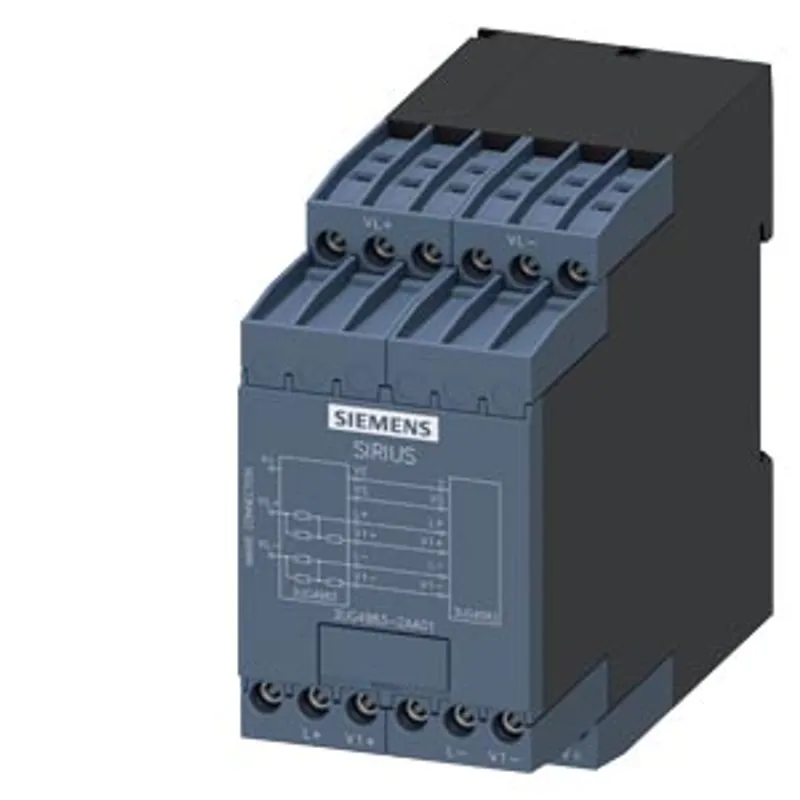

Siemens 3UG4983-2AA01
Voltage reducer module for insulation monitoring relay 3UG4583 for expanding the supply voltage range to 690…
- MPN
- 3UG4983-2AA01
- Category
- Insulation monitoring
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3UG4983-2AA01?
voltage reducer module for insulation monitoring relay 3UG4583 for expanding the supply voltage range to 690 V AC and 1000 V DC spring-loaded terminal (push-in)
Specifications
General
| product brand name | SIRIUS |
| product designation | Voltage reducer module |
| product type designation | 3UG4 |
General technical data
| product function | Converter module |
| type of voltage — for monitoring | AC/DC |
| type of voltage — of the operating voltage for actuation | AC/DC |
| type of voltage — of the control supply voltage | AC/DC |
| surge voltage resistance rated value | 8 000 V |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| Net Weight | 0.2 kg |
Product Function
| product function — phase sequence recognition | No |
| product function — phase failure detection | No |
| product function — asymmetry detection | No |
| product function — error memory | No |
| product function — adjustable open/closed-circuit current principle | Yes |
| product function — manual RESET | Yes |
Measuring circuit
| measurable line frequency | 15 ... 400 Hz |
| measurable voltage at AC | 0 ... 690 V |
| measurable voltage at DC | 0 ... 1 000 V |
Communication/ Protocol
| protocol is supported IO-Link protocol | No |
Auxiliary circuit
| number of NC contacts for auxiliary contacts | 0 |
| number of NC contacts delayed switching | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of NO contacts delayed switching | 0 |
| number of CO contacts — delayed switching | 0 |
Main circuit
| operating frequency rated value | 15 ... 400 Hz |
Safety related data
| product function suitable for safety function | No |
| protection class IP on the front according to IEC 60529 | IP20 |
Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | No |
| type of electrical connection | spring-loaded terminal (push-in) |
| type of connectable conductor cross-sections — solid | 2x (0.5 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded without core end processing | 2x (0.5 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 2x (20 ... 16) |
| type of connectable conductor cross-sections — for AWG cables stranded | 2x (18 ... 16) |
| connectable conductor cross-section — solid | 0.5 ... 1.5 mm² |
| connectable conductor cross-section — finely stranded with core end processing | 0.5 ... 1.5 mm² |
| connectable conductor cross-section — finely stranded without core end processing | 0.5 ... 1.5 mm² |
| AWG number as coded connectable conductor cross section — solid | 20 ... 16 |
| AWG number as coded connectable conductor cross section — stranded | 18 ... 16 |

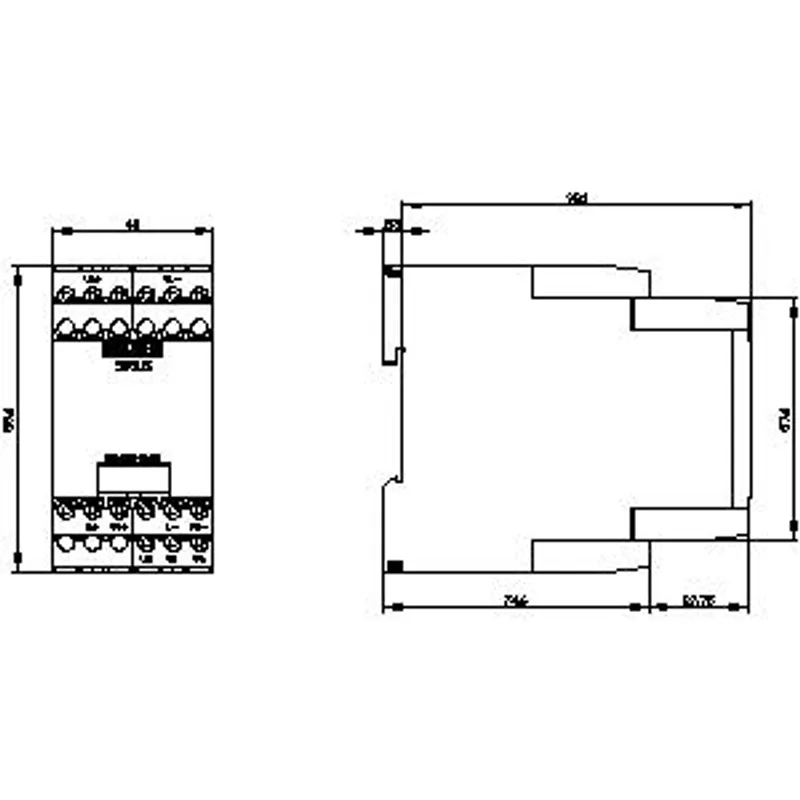

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | snap-on fastening on 35 mm DIN rail |
| height | 78 mm |
| width | 45 mm |
| depth | 100 mm |
| required spacing — with side-by-side mounting — forwards | 0 mm |
| required spacing — with side-by-side mounting — backwards | 0 mm |
| required spacing — with side-by-side mounting — upwards | 0 mm |
| required spacing — with side-by-side mounting — downwards | 0 mm |
| required spacing — with side-by-side mounting — at the side | 0 mm |
| required spacing — for grounded parts — forwards | 0 mm |
| required spacing — for grounded parts — backwards | 0 mm |
| required spacing — for grounded parts — upwards | 0 mm |
| required spacing — for grounded parts — at the side | 0 mm |
| required spacing — for grounded parts — downwards | 0 mm |
| required spacing — for live parts — forwards | 0 mm |
| required spacing — for live parts — backwards | 0 mm |
| required spacing — for live parts — upwards | 0 mm |
| required spacing — for live parts — downwards | 0 mm |
| required spacing — for live parts — at the side | 0 mm |
Ambient conditions
| ambient temperature during operation | -25 ... +60 °C |
