Insulation monitoring Parts







Compare Insulation monitoring
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | surge voltage resistance rated value | Net Weight | measurable voltage at AC | measurable voltage at DC | number of CO contacts — delayed switching |
|---|---|---|---|---|---|
| 3UG4583-2CW31 | 4 000 V | 0.265 kg | 0 ... 400 V | 0 ... 600 V | 2 |

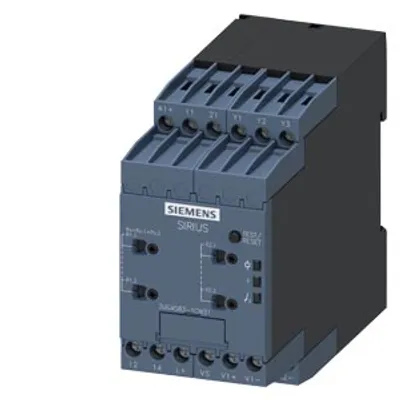

| 3UG4583-1CW31 | 4 000 V | 0.28 kg | 0 ... 400 V | 0 ... 600 V | 2 |
| 3UG4582-2AW31 | 6 000 V | 0.16 kg | 0 ... 250 V | 0 ... 300 V | 1 |

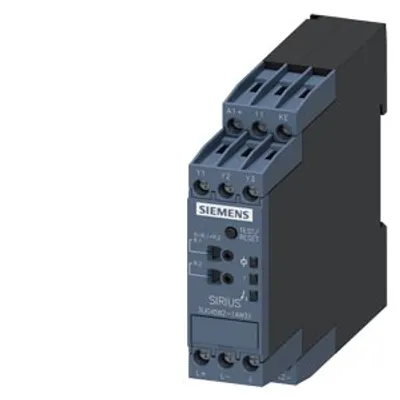

| 3UG4582-1AW31 | 6 000 V | 0.172 kg | 0 ... 250 V | 0 ... 300 V | 1 |

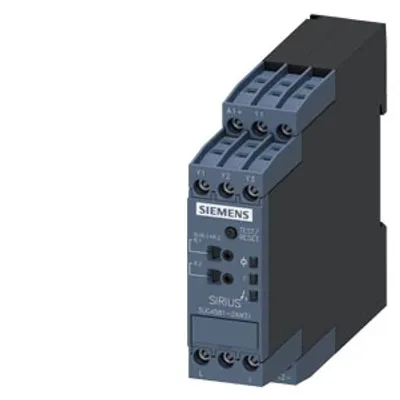

| 3UG4581-2AW31 | 6 000 V | 0.155 kg | 0 ... 400 V | — | 1 |

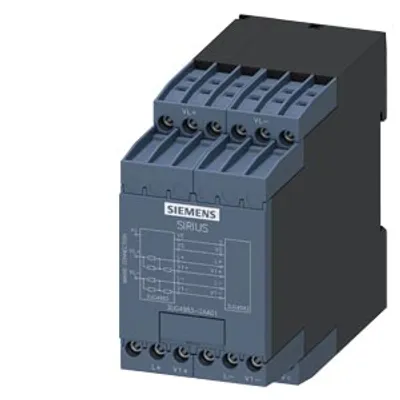

| 3UG4983-2AA01 | 8 000 V | 0.2 kg | 0 ... 690 V | 0 ... 1 000 V | 0 |
| 3UG4983-1AA01 | 8 000 V | 0.21 kg | 0 ... 690 V | 0 ... 1 000 V | 0 |
Common to all listed parts
| product type designation | 3UG4 |
| type of voltage — of the operating voltage for actuation | AC/DC |
| type of voltage — of the control supply voltage | AC/DC |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| product function — phase sequence recognition | No |
| product function — phase failure detection | No |
| product function — asymmetry detection | No |
