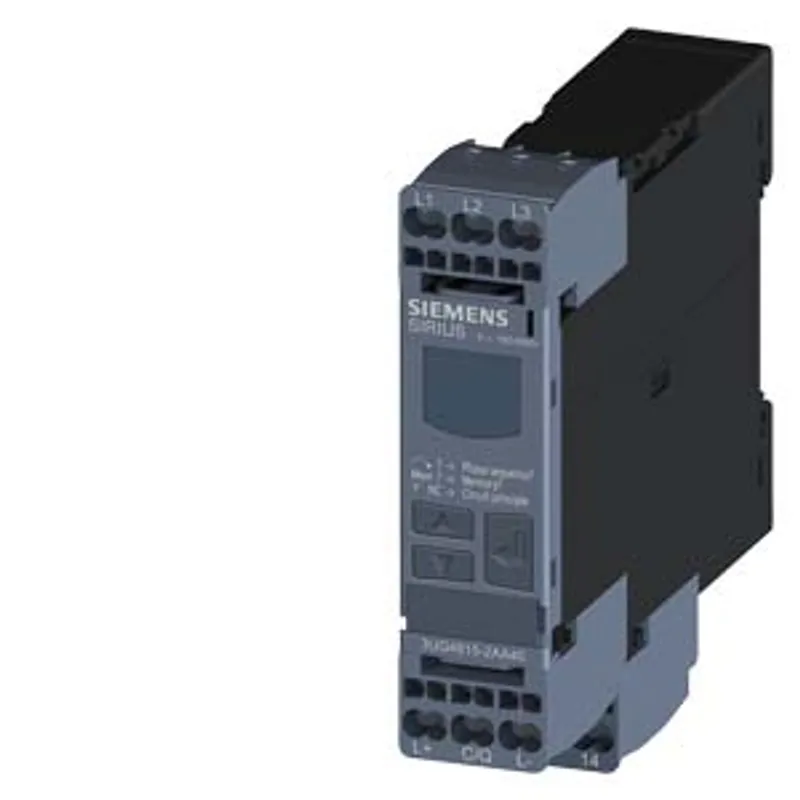

Siemens 3UG4815-2AA40
!!! product phase-out !!! the preferred successor is 3UG5816-2AA40 line monitoring IO-Link
- MPN
- 3UG4815-2AA40
- Category
- Line monitoring
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3UG4815-2AA40?
!!! product phase-out !!! the preferred successor is 3UG5816-2AA40 line monitoring IO-Link, 3x 160-690 V digital monitoring relay for 3-phase line voltage for IO-Link 50...60 Hz AC 3 x 160 to 690 V phase sequence, phase failure phase asymmetry undervoltage and overvoltage hysteresis 1-20 V line stabilization delay tripping delay time 1 changeover contact, spring-loaded connection system
Specifications
General
| product brand name | SIRIUS |
| product designation | Network monitoring relay with digital setting |
| design of the product | 5 functions |
| product type designation | 3UG4 |
General technical data
| product function | Phase monitoring relay |
| display version LED | No |
| design of the display | LCD |
| insulation voltage for overvoltage category III according to IEC 60664 — with degree of pollution 2 rated value | 690 V |
| degree of pollution | 2 |
| type of voltage — for monitoring | AC |
| surge voltage resistance rated value | 6 kV |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2 g |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| thermal current of the switching element with contacts maximum | 5 A |
| reference code according to IEC 81346-2 | K |
| relative repeat accuracy | 1 % |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 |
| Net Weight | 130.57 g |
Product Function
| product function — undervoltage detection | Yes |
| product function — overvoltage detection | Yes |
| product function — phase sequence recognition | Yes |
| product function — phase failure detection | Yes |
| product function — asymmetry detection | Yes |
| product function — overcurrent detection 1 phase | No |
| product function — overvoltage detection 3 phase | Yes |
| product function — undercurrent detection 1 phase | No |
| product function — undervoltage detection 3 phases | Yes |
| product function — voltage window recognition 3 phase | Yes |
| product function — adjustable open/closed-circuit current principle | Yes |
| product function — external reset | Yes |
| product function — auto-RESET | Yes |
Control circuit/ Control
| type of voltage of the control supply voltage | DC |
| control supply voltage at DC rated value | 24 V |
Interfaces
| design of the interface bluetooth | No |
Measuring circuit
| adjustable response delay time — when starting | 1 000 s |
| adjustable response delay time — with lower or upper limit violation | 1 000 s |
| response time maximum | 450 ms |
| accuracy of digital display | +/-1 digit |
Precision
| relative metering precision | 5 % |
Communication/ Protocol
| protocol is supported IO-Link protocol | Yes |
| IO-Link transfer rate | COM2 (38,4 kBaud) |
| point-to-point cycle time between master and IO-Link device minimum | 10 ms |
| type of voltage supply via input/output link master | Yes |
| data volume — of the address range of the inputs with cyclical transfer total | 4 byte |
| data volume — of the address range of the outputs with cyclical transfer total | 2 byte |
Auxiliary circuit
| number of NC contacts delayed switching | 0 |
| number of NO contacts delayed switching | 0 |
| number of CO contacts — for auxiliary contacts | 1 |
| number of CO contacts — delayed switching | 1 |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
Main circuit
| number of poles for main current circuit | 3 |
| ampacity of the output relay at AC-15 — at 250 V at 50/60 Hz | 3 A |
| ampacity of the output relay at AC-15 — at 400 V at 50/60 Hz | 3 A |
| ampacity of the output relay at DC-13 — at 24 V | 1 A |
| ampacity of the output relay at DC-13 — at 125 V | 0 A |
| ampacity of the output relay at DC-13 — at 250 V | 0 A |
| ampacity of the semiconductor output in SIO mode | 200 mA |
| operational current at 17 V minimum | 20 mA |
| continuous current of the DIAZED fuse link of the output relay | 4 A |
Electromagnetic compatibility
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
Galvanic isolation
| galvanic isolation — between input and output | Yes |
| galvanic isolation — between the voltage supply and other circuits | Yes |
Safety related data
| product function suitable for safety function | No |
| protection class IP on the front according to IEC 60529 | IP20 |

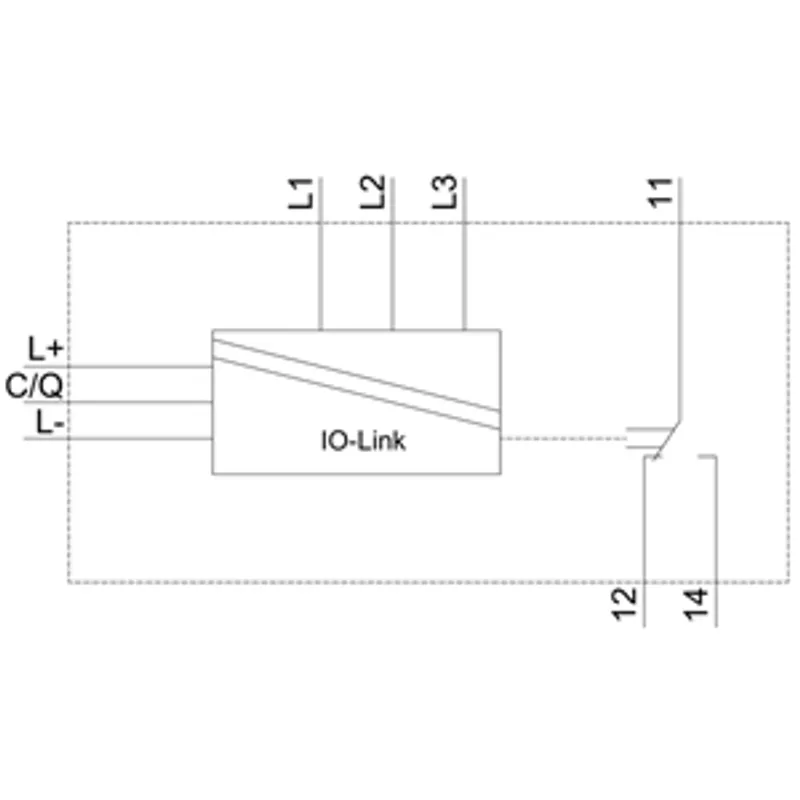

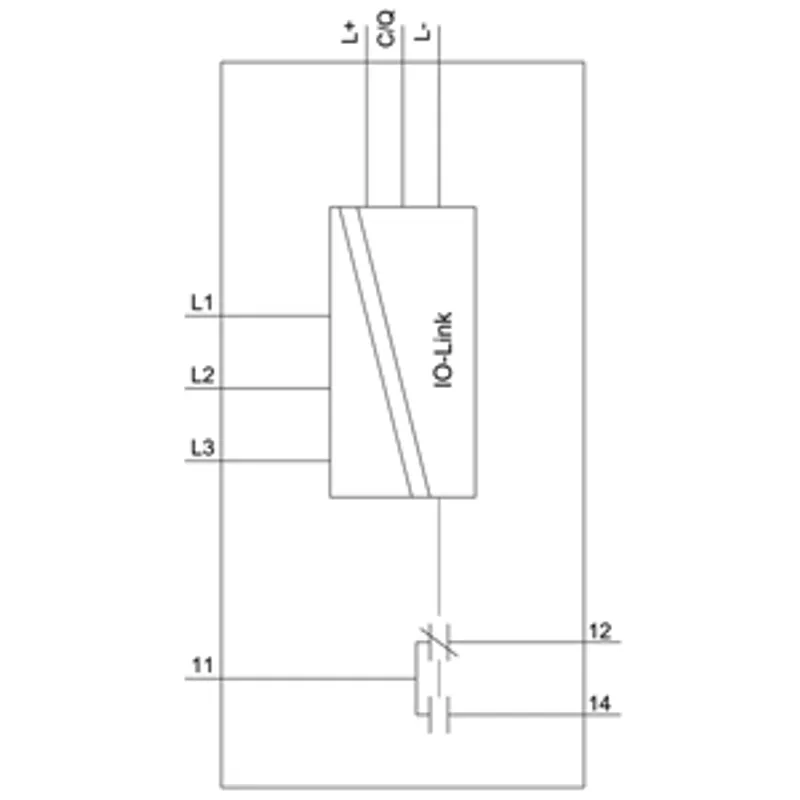

Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection | spring-loaded terminals |
| type of connectable conductor cross-sections — solid | 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 2 x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 2x (24 ... 16) |
| type of connectable conductor cross-sections — for AWG cables stranded | 2x (24 ... 16) |
| connectable conductor cross-section — solid | 0.25 ... 1.5 mm² |
| connectable conductor cross-section — finely stranded with core end processing | 0.25 ... 1.5 mm² |
| connectable conductor cross-section — finely stranded without core end processing | 0.25 ... 1.5 mm² |
| AWG number as coded connectable conductor cross section — solid | 24 ... 16 |
| AWG number as coded connectable conductor cross section — stranded | 24 ... 16 |

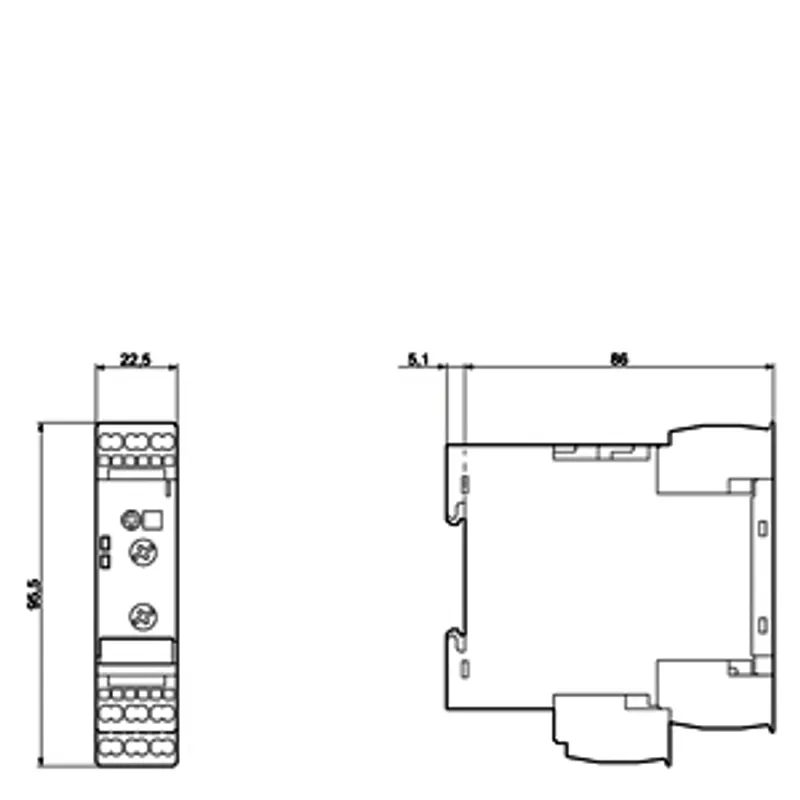

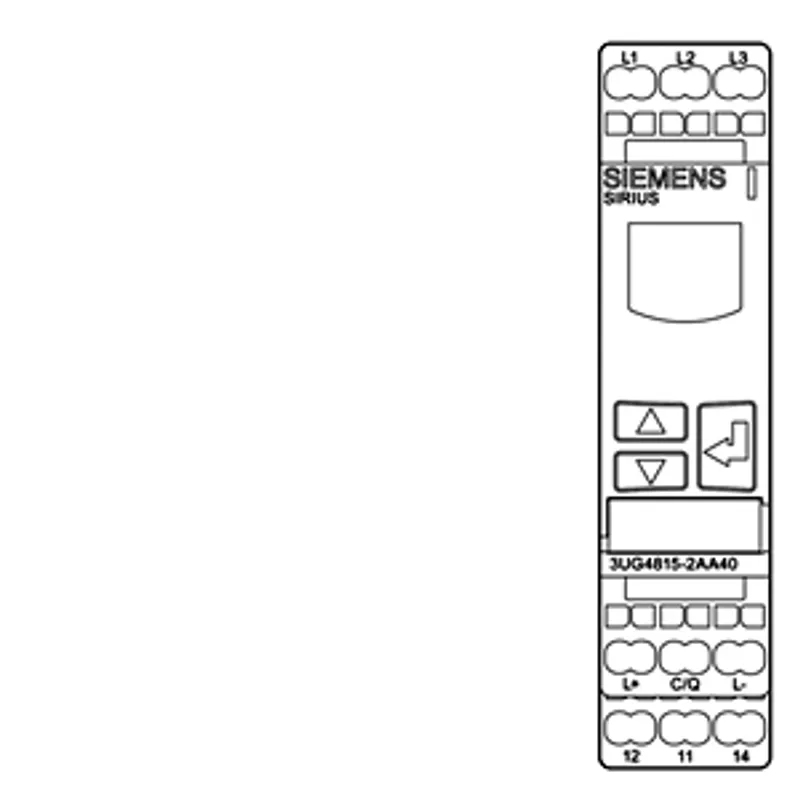

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | snap-on mounting |
| height | 103 mm |
| width | 22.5 mm |
| depth | 91 mm |
| required spacing — with side-by-side mounting — forwards | 0 mm |
| required spacing — with side-by-side mounting — backwards | 0 mm |
| required spacing — with side-by-side mounting — upwards | 0 mm |
| required spacing — with side-by-side mounting — downwards | 0 mm |
| required spacing — with side-by-side mounting — at the side | 0 mm |
| required spacing — for grounded parts — forwards | 0 mm |
| required spacing — for grounded parts — backwards | 0 mm |
| required spacing — for grounded parts — upwards | 0 mm |
| required spacing — for grounded parts — at the side | 0 mm |
| required spacing — for grounded parts — downwards | 0 mm |
| required spacing — for live parts — forwards | 0 mm |
| required spacing — for live parts — backwards | 0 mm |
| required spacing — for live parts — upwards | 0 mm |
| required spacing — for live parts — downwards | 0 mm |
| required spacing — for live parts — at the side | 0 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
