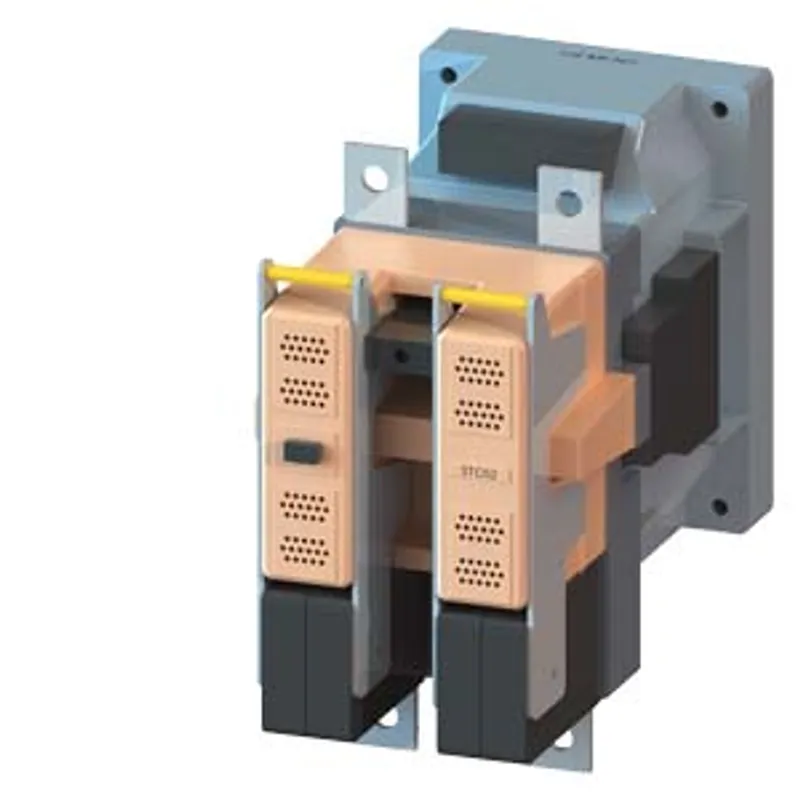

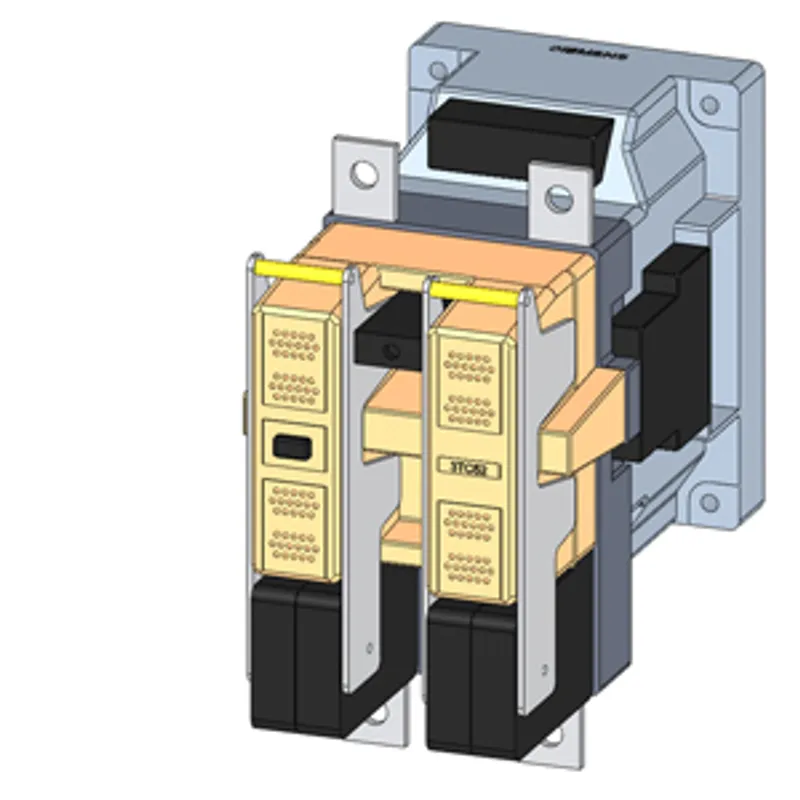

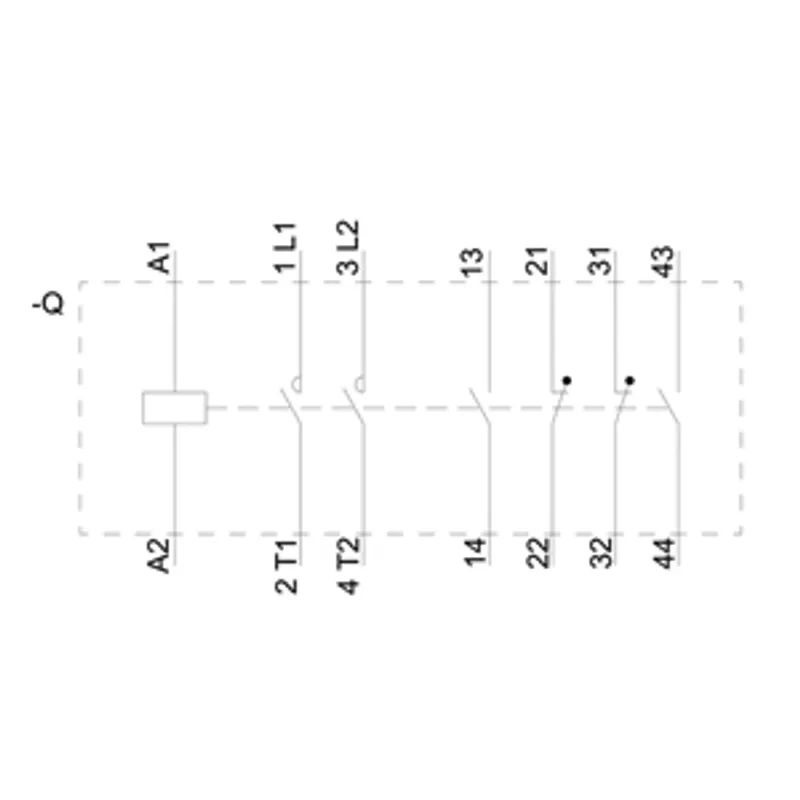

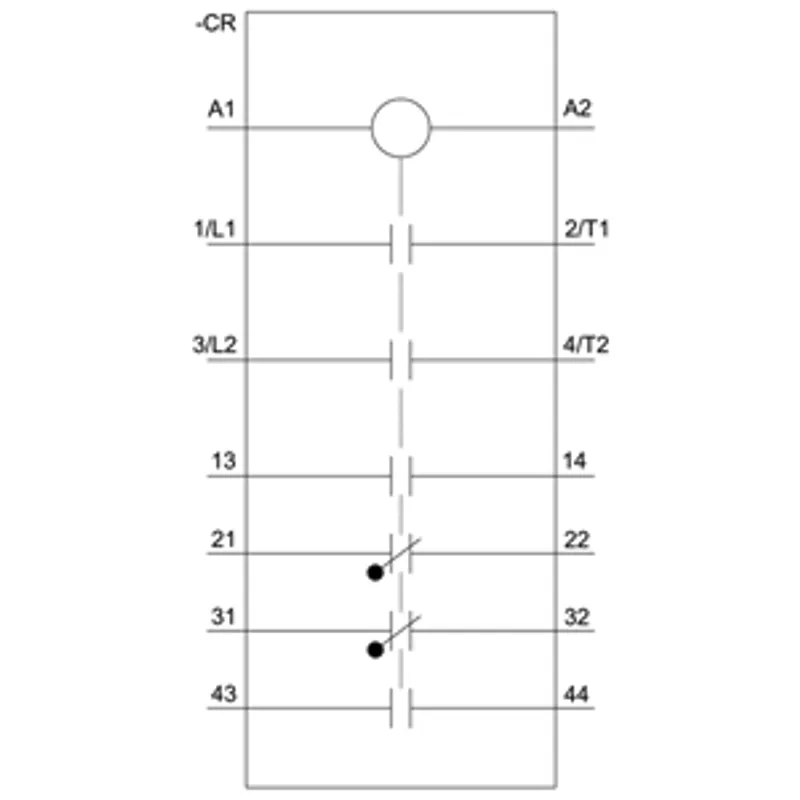

Siemens 3TC5217-0AG4
Contactor, DC-3/DC-5, 220 A, 2-pole, 125 V DC, auxiliary contacts: 2 NO + 2 NC, connecting bar, frame size 8
- MPN
- 3TC5217-0AG4
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3TC5217-0AG4?
contactor, DC-3/DC-5, 220 A, 2-pole, 125 V DC, auxiliary contacts: 2 NO + 2 NC, connecting bar, frame size 8
Specifications
General
| product designation | Contactor |
| product type designation | 3TC |
General technical data
| size of contactor | 8 |
| product extension — function module for communication | No |
| product extension — auxiliary switch | Yes |
| insulation voltage rated value | 1 000 V |
| maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 | 660 V |
| shock resistance at rectangular impulse — at DC | 12 g / 5 ms, 5,5 g / 10 ms |
| mechanical service life (operating cycles) — of contactor typical | 10 000 000 |
| mechanical service life (operating cycles) — of the contactor with added auxiliary switch block typical | 10 000 000 |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (day/month/year) | 03/01/2017 |
| SVHC substance name | Lead CAS-No. 7439-92-1 |
| Net Weight | 9.604 kg |
Ambient conditions
| ambient temperature — during operation | -25 ... +55 °C |
| ambient temperature — during storage | -50 ... +80 °C |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
Main circuit
| number of poles | 2 |
| number of poles for main current circuit | 2 |
| number of NO contacts for main contacts | 2 |
| number of NC contacts for main contacts | 0 |
| type of voltage | DC |
| operational current — at 1 current path at DC-1 — at 24 V rated value | 220 A |
| operational current — at 1 current path at DC-1 — at 110 V rated value | 220 A |
| operational current — at 1 current path at DC-1 — at 220 V rated value | 220 A |
| operational current — with 2 current paths in series at DC-1 — at 24 V rated value | 220 A |
| operational current — with 2 current paths in series at DC-1 — at 110 V rated value | 220 A |
| operational current — with 2 current paths in series at DC-1 — at 220 V rated value | 220 A |
| operational current — with 2 current paths in series at DC-1 — at 440 V rated value | 220 A |
| operational current — with 2 current paths in series at DC-1 — at 600 V rated value | 220 A |
| operational current — with 2 current paths in series at DC-1 — at 750 V rated value | 220 A |
| operational current — at DC-3 at DC-5 — at 220 V rated value | 220 A |
| operational current — at DC-3 at DC-5 — at 600 V rated value | 220 A |
| operational current — at DC-3 at DC-5 — at 750 V rated value | 170 A |
| operational current — at 1 current path at DC-3 at DC-5 — at 24 V rated value | 220 A |
| operational current — at 1 current path at DC-3 at DC-5 — at 110 V rated value | 220 A |
| operational current — at 1 current path at DC-3 at DC-5 — at 220 V rated value | 220 A |
| operational current — with 2 current paths in series at DC-3 at DC-5 — at 24 V rated value | 220 A |
| operational current — with 2 current paths in series at DC-3 at DC-5 — at 110 V rated value | 220 A |
| operational current — with 2 current paths in series at DC-3 at DC-5 — at 220 V rated value | 220 A |
| operational current — with 2 current paths in series at DC-3 at DC-5 — at 440 V rated value | 220 A |
| operational current — with 2 current paths in series at DC-3 at DC-5 — at 600 V rated value | 220 A |
| operational current — with 2 current paths in series at DC-3 at DC-5 — at 750 V rated value | 170 A |
| operating power — at DC-1 — at 110 V rated value | 24 kW |
| operating power — at DC-1 — at 220 V rated value | 48 kW |
| operating power — at DC-1 — at 440 V rated value | 97 kW |
| operating power — at DC-1 — at 750 V rated value | 165 kW |
| operating power — at DC-3 at DC-5 — at 110 V rated value | 20 kW |
| operating power — at DC-3 at DC-5 — at 220 V rated value | 41 kW |
| operating power — at DC-3 at DC-5 — at 440 V rated value | 82 kW |
| operating power — at DC-3 at DC-5 — at 600 V rated value | 110 kW |
| operating power — at DC-3 at DC-5 — at 750 V rated value | 110 kW |
| operating frequency — at DC-1 maximum | 1 000 1/h |
| operating frequency — at DC-3 maximum | 600 1/h |
| operating frequency — at DC-5 maximum | 600 1/h |
Control circuit/ Control
| type of voltage of the control supply voltage | DC |
| control supply voltage at DC rated value | 125 V |
| closing power of magnet coil at DC | 30 W |
| holding power of magnet coil at DC | 30 W |
| closing delay at DC | 120 ... 400 ms |
| opening delay at DC | 22 ... 35 ms |
| arcing time | 20 ... 30 ms |
Auxiliary circuit
| number of NC contacts for auxiliary contacts | 2 |
| number of NC contacts for auxiliary contacts — instantaneous contact | 2 |
| number of NO contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts — instantaneous contact | 2 |
| number of CO contacts for auxiliary contacts | 0 |
| identification number and letter for switching elements | 22 |
| operational current at AC-12 maximum | 10 A |
| operational current at AC-15 — at 230 V rated value | 5.6 A |
| operational current at AC-15 — at 400 V rated value | 3.6 A |
| operational current at AC-15 — at 500 V rated value | 2.5 A |
| operational current at DC-12 — at 24 V rated value | 10 A |
| operational current at DC-12 — at 48 V rated value | 10 A |
| operational current at DC-12 — at 60 V rated value | 10 A |
| operational current at DC-12 — at 110 V rated value | 8 A |
| operational current at DC-12 — at 125 V rated value | 6 A |
| operational current at DC-12 — at 220 V rated value | 2 A |
| operational current at DC-12 — at 600 V rated value | 0.4 A |
| operational current at DC-13 — at 24 V rated value | 10 A |
| operational current at DC-13 — at 48 V rated value | 5 A |
| operational current at DC-13 — at 60 V rated value | 5 A |
| operational current at DC-13 — at 110 V rated value | 2.4 A |
| operational current at DC-13 — at 125 V rated value | 2.1 A |
| operational current at DC-13 — at 220 V rated value | 1.1 A |
| operational current at DC-13 — at 600 V rated value | 0.21 A |
UL/CSA ratings
| contact rating of auxiliary contacts according to UL | A600 / P600 |
Short-circuit protection
| design of the fuse link — for short-circuit protection of the main circuit — with type of coordination 1 required | 3NE1332-4D (400 A) (750 V, 6 kA) |
| design of the fuse link — for short-circuit protection of the main circuit — with type of coordination 2 required | 3NE1332-4D (400 A) (750 V, 6 kA) |
| design of the fuse link — for short-circuit protection of the auxiliary switch required | gG: 16 A (500 V, 1 kA) |

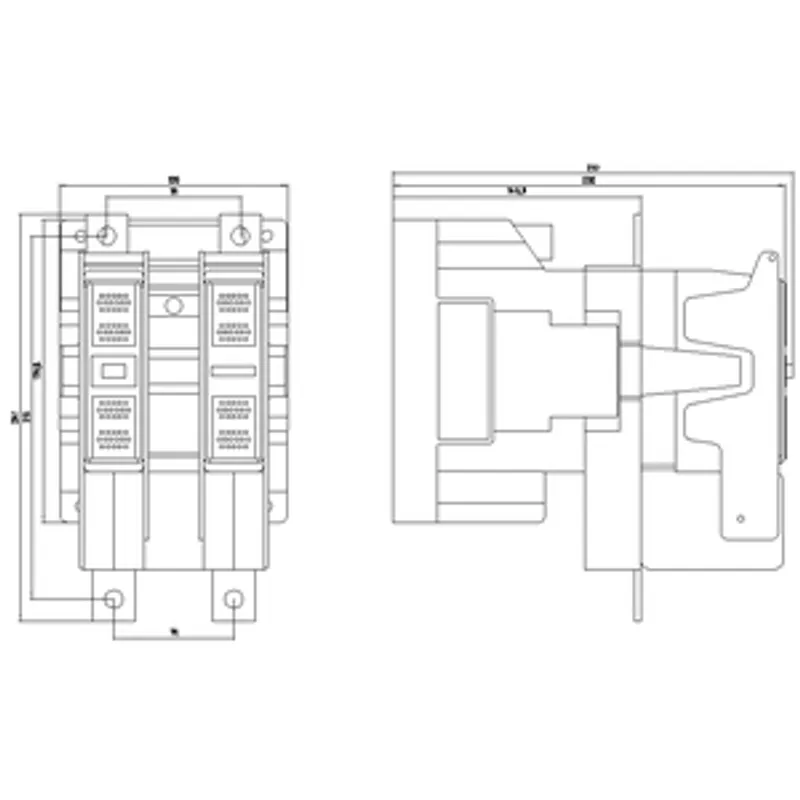

Installation/ mounting/ dimensions
| mounting position | +/-22,5° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| fastening method side-by-side mounting | Yes |
| fastening method | screw fixing |
| height | 240 mm |
| width | 135 mm |
| depth | 236 mm |
| required spacing — with side-by-side mounting — forwards | 20 mm |
| required spacing — with side-by-side mounting — backwards | 0 mm |
| required spacing — with side-by-side mounting — upwards | 10 mm |
| required spacing — with side-by-side mounting — downwards | 10 mm |
| required spacing — with side-by-side mounting — at the side | 10 mm |
| required spacing — for grounded parts — forwards | 70 mm |
| required spacing — for grounded parts — backwards | 0 mm |
| required spacing — for grounded parts — upwards | 10 mm |
| required spacing — for grounded parts — at the side | 10 mm |
| required spacing — for grounded parts — downwards | 10 mm |
| required spacing — for live parts — forwards | 70 mm |
| required spacing — for live parts — backwards | 0 mm |
| required spacing — for live parts — upwards | 10 mm |
| required spacing — for live parts — downwards | 10 mm |
| required spacing — for live parts — at the side | 10 mm |
Connections/ Terminals
| type of electrical connection | screw terminal |
| type of electrical connection — for main current circuit | screw-type terminals |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| type of connectable conductor cross-sections — for auxiliary contacts — solid or stranded | 2x (1 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing | 2x (0.75 ... 1.5 mm²) |
Safety related data
| product function mirror contact according to IEC 60947-4-1 | Yes |
| protection class IP on the front according to IEC 60529 | IP00; IP20 with box terminal/cover |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front with cover |
