3TC contactors for switching DC voltage, 1-pole and 2-pole Parts
Compare 3TC contactors for switching DC voltage, 1-pole and 2-pole
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | size of contactor | Net Weight | operational current — at 1 current path at DC-1 — at 24 V rated value | height | depth |
|---|---|---|---|---|---|
| 3TC7414-0EY80-0AA0 | 12 | 10.627 kg | 500 A | 360 mm | 276 mm |
| 3TC7414-0EV | 12 | 10.66 kg | 500 A | 360 mm | 276 mm |
| 3TC7414-0EM | 12 | 9.818 kg | 500 A | 360 mm | 276 mm |
| 3TC7414-0EG | 12 | 10.461 kg | 500 A | 360 mm | 276 mm |
| 3TC7414-0EF | 12 | 10.514 kg | 500 A | 360 mm | 276 mm |
| 3TC7414-0EB | 12 | 10.494 kg | 500 A | 360 mm | 276 mm |
| 3TC4817-0BU0 | 4 | 3.303 kg | 75 A | 177.5 mm | 156 mm |
| 3TC4817-0BP00-0KF0 | 4 | 3.259 kg | 75 A | 177.5 mm | 156 mm |
| 3TC4817-0BP0 | 4 | 3.309 kg | 75 A | 177.5 mm | 156 mm |
| 3TC4817-0BN1 | 4 | 3.255 kg | 75 A | 177.5 mm | 156 mm |
| 3TC4817-0BM0 | 4 | 3.225 kg | 75 A | 177.5 mm | 156 mm |
| 3TC4817-0BL1 | 4 | 3.34 kg | 75 A | 177.5 mm | 156 mm |
| 3TC4817-0BK6 | 4 | 3.273 kg | 75 A | 177.5 mm | 156 mm |

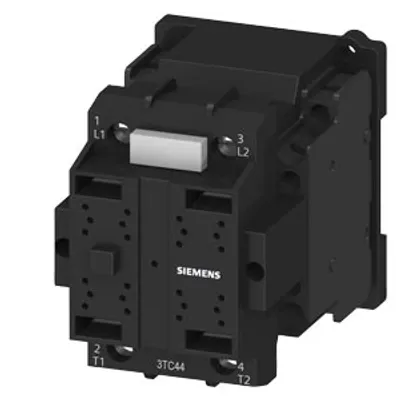

| 3TC4417-0BB0 | 2 | 0.646 kg | 32 A | 85 mm | 104 mm |
| 3TC4417-0BD0 | 2 | 0.663 kg | 32 A | 85 mm | 104 mm |
| 3TC4417-0BC2 | 2 | 0.63 kg | 32 A | 85 mm | 104 mm |
| 3TC4417-0BC1 | 2 | 0.64 kg | 32 A | 85 mm | 104 mm |
| 3TC4417-0AM4 | 2 | 0.964 kg | 32 A | 85 mm | 145 mm |
| 3TC4417-0AL8 | 2 | 1.02 kg | 32 A | 85 mm | 145 mm |

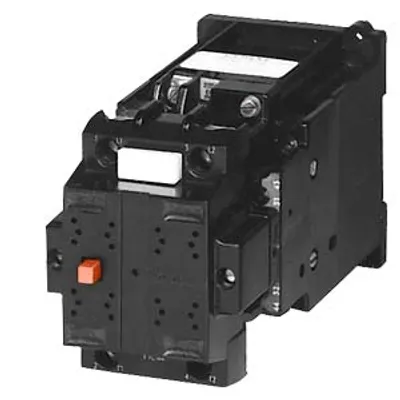

| 3TC4417-0AK4 | 2 | 1.017 kg | 32 A | 85 mm | 145 mm |
| 3TC7414-5KB | 12 | 12.977 kg | 500 A | 360 mm | 276 mm |
| 3TC7414-1CM | 12 | 10.633 kg | 500 A | 368 mm | 276 mm |
| 3TC7414-0EY80-0AB4 | 12 | 10.752 kg | 500 A | 360 mm | 276 mm |
| 3TC4417-0CY80-0AC8 | 2 | 1.213 kg | 32 A | 85 mm | 145 mm |
Common to all listed parts
| product designation | Contactor |
| product type designation | 3TC |
| product extension — function module for communication | No |
| reference code according to IEC 81346-2 | Q |
| ambient temperature — during operation | -25 ... +55 °C |
| ambient temperature — during storage | -50 ... +80 °C |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
