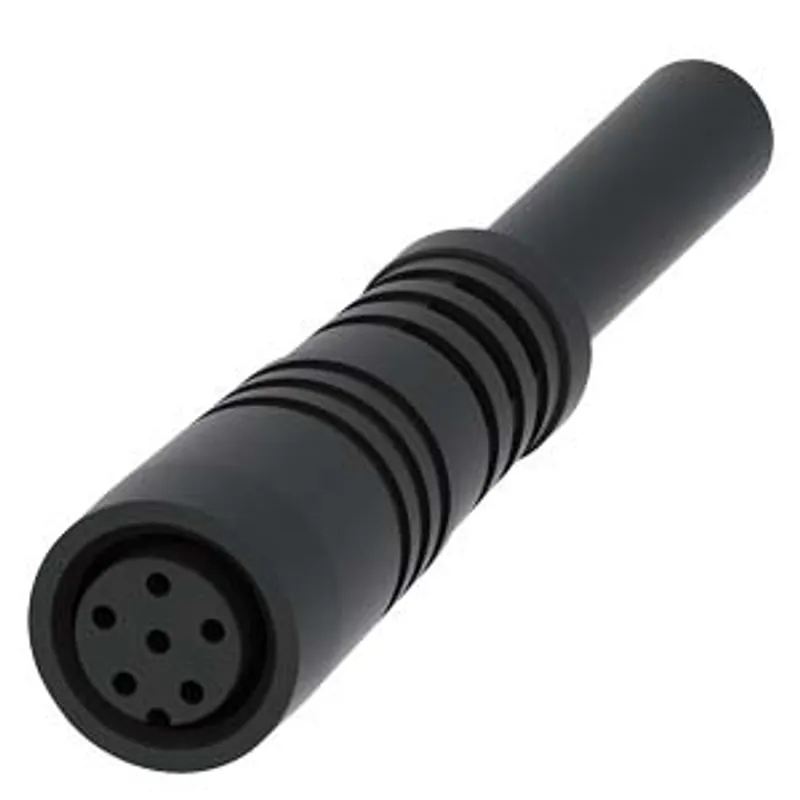

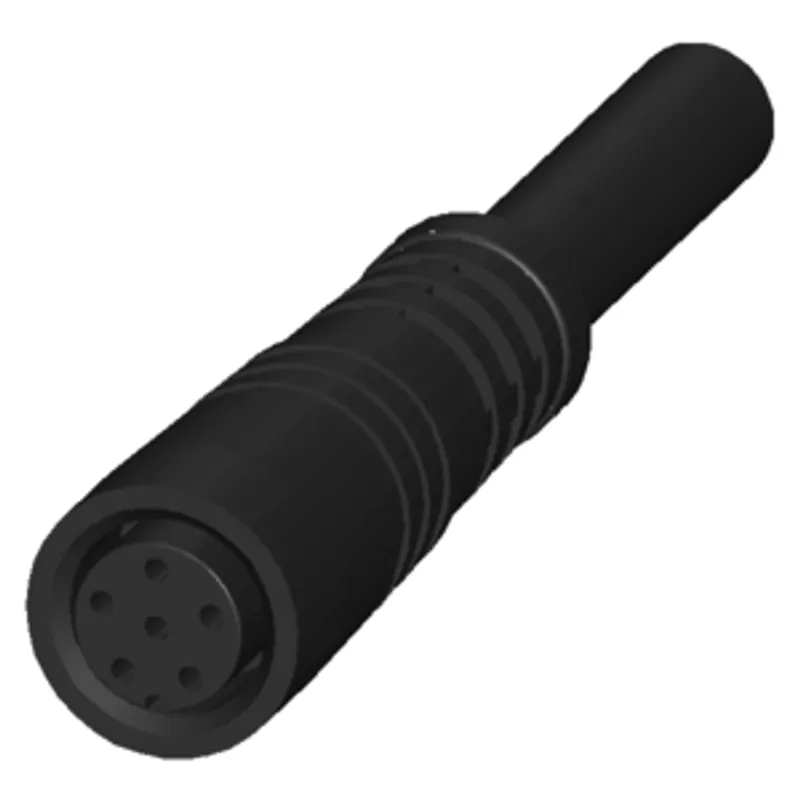

Siemens 3SX5601-4GA05
Coupling with connecting cable 5 m long, with 8 mm latching connection, for connector 6-pole
- MPN
- 3SX5601-4GA05
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SX5601-4GA05?
coupling with connecting cable 5 m long, with 8 mm latching connection, for connector 6-pole, for 3SE66 magnetically-operated switch
Specifications
General technical data
| product brand name | SIRIUS |
| product designation | Coupling, socket 8mm, 6-pole, snap fit, for 3SE66 |
| operational current at 40 °C rated value | 1.5 A |
| operating voltage rated value | 30 V |
| number of poles | 6 |

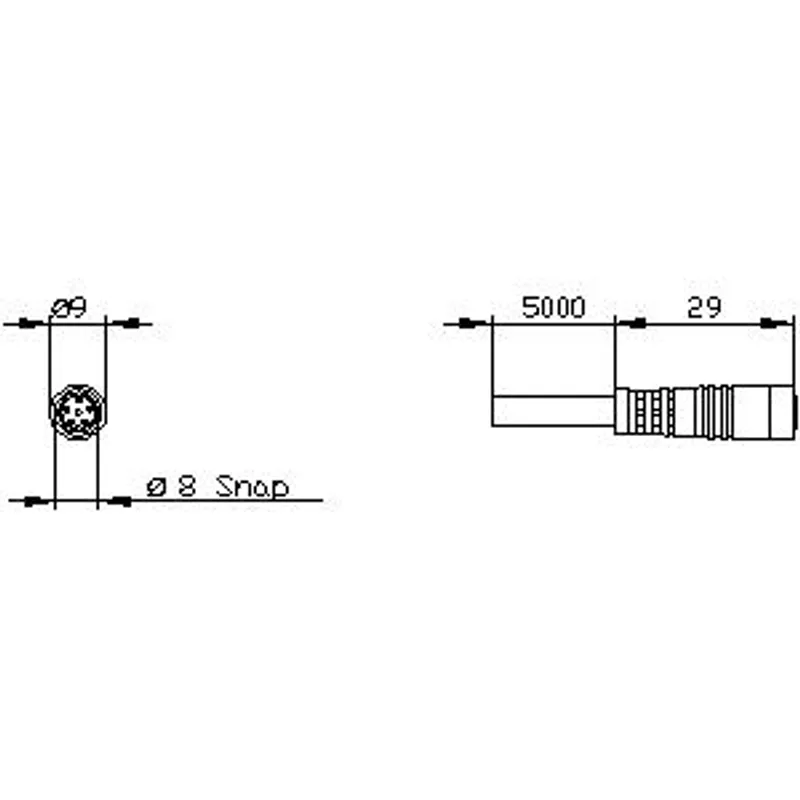

| wire length of connection cable | 5 m |
| ambient temperature during operation | -25 ... +80 °C |
| type of electrical connection | 8 mm connector, 6-pin, snap-in locking mechanism |

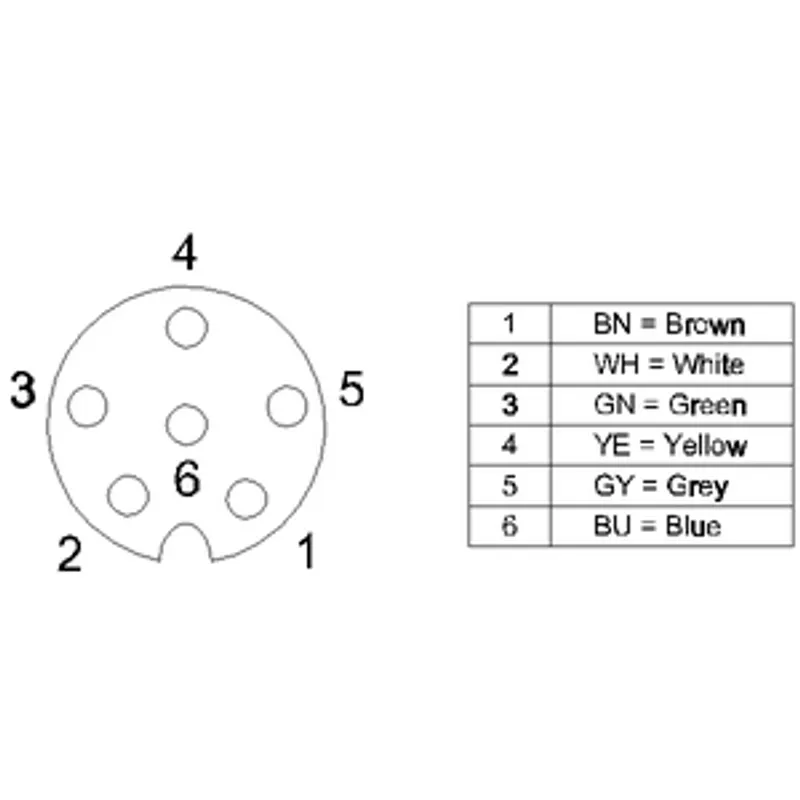

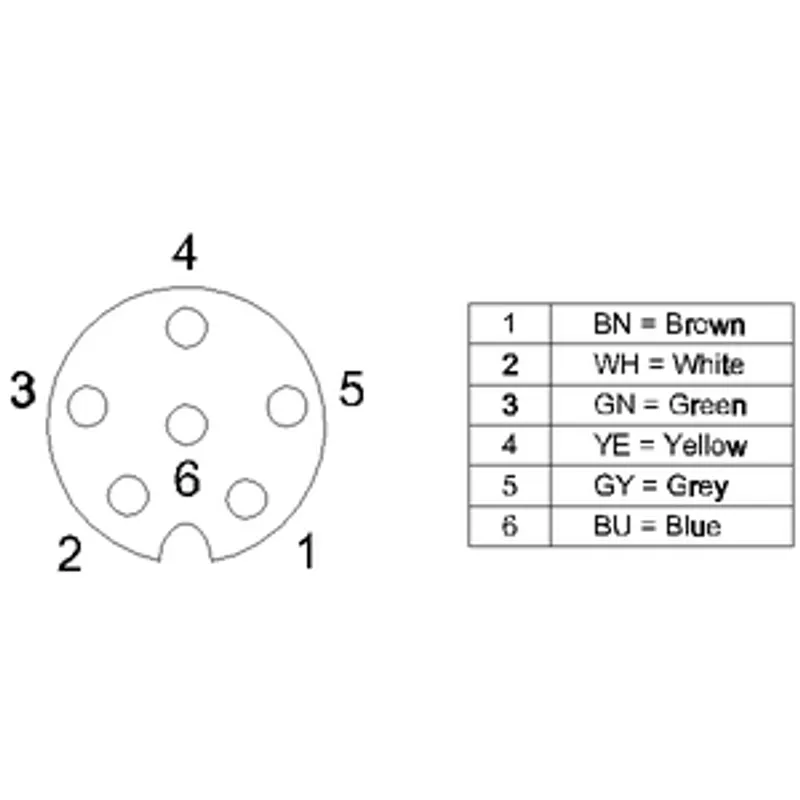

| color coding of the core | Pin 1 = BN, Pin 2 = WH, Pin 3 = GN, Pin 4 = YE, Pin 5 = GY, Pin 6 = BU |
| overvoltage category | 2 |
| degree of pollution | 3 |
| protection class IP | IP65 |
| material — of the contact | CuZn |
| material — of contact coating | Au |
| material — of contact main body | TPU |
