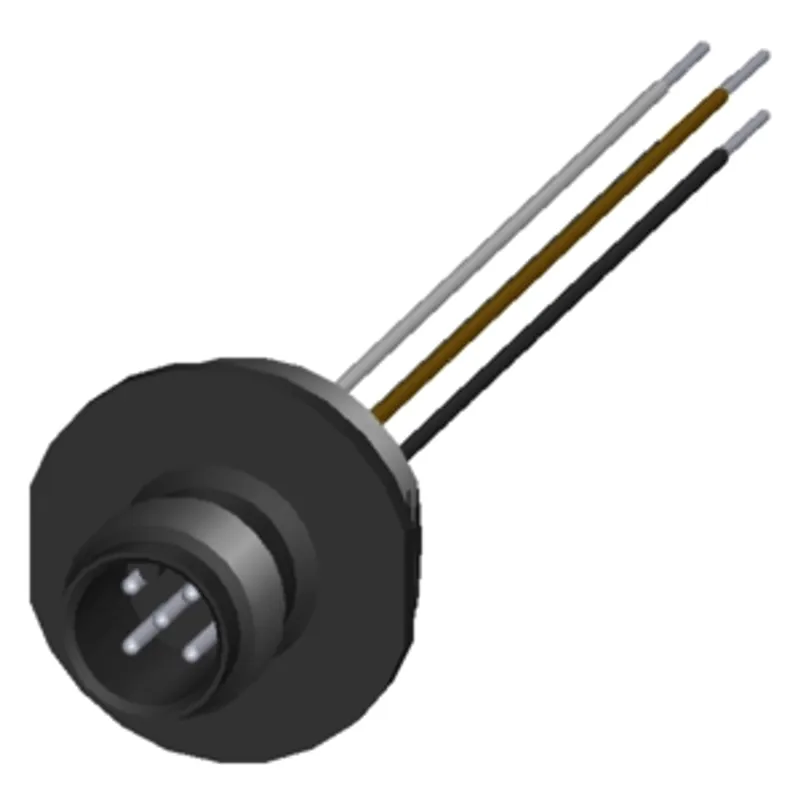

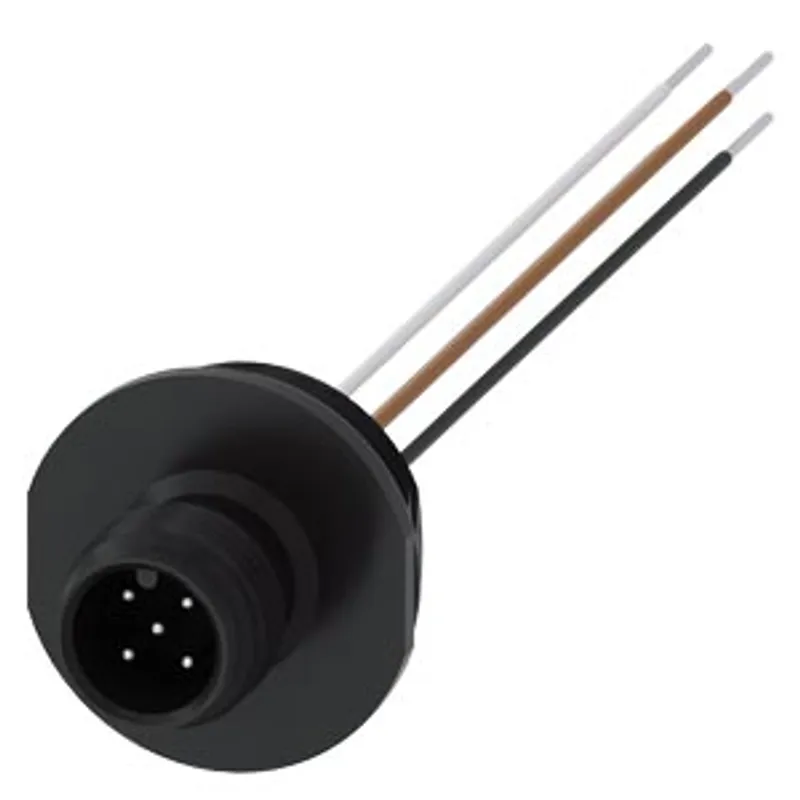

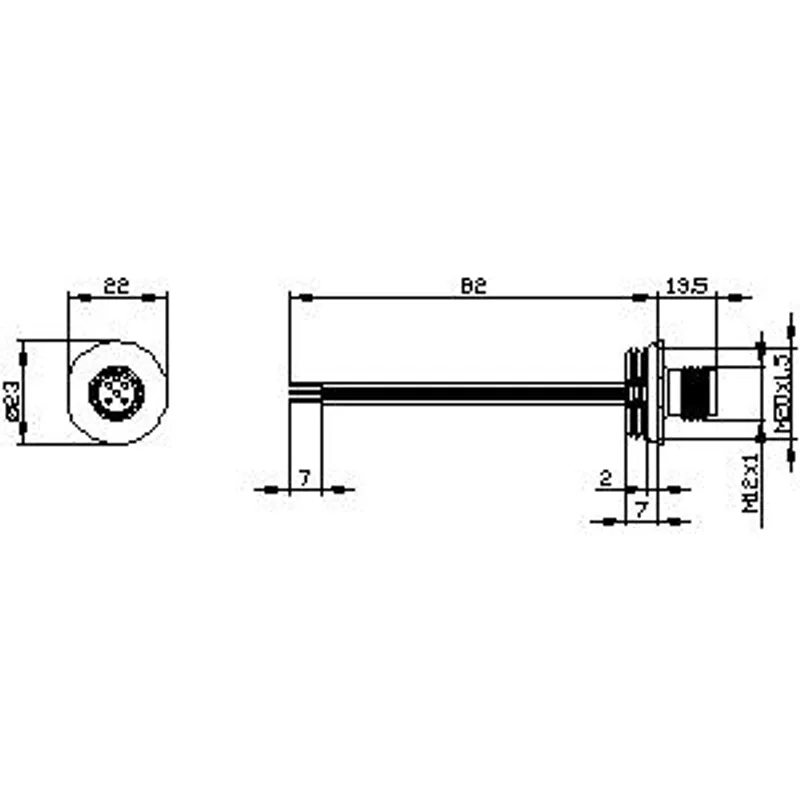

Siemens 3SY3128
Accessory for position switch Connector plug (5-pole), M12, for M20 x 1.5 for 125 V
- MPN
- 3SY3128
- Category
- Accessories and spare parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SY3128?
Accessory for position switch Connector plug (5-pole), M12, for M20 x 1.5 for 125 V, 4 A on Pin 5 a yellow/green cable for PE
Specifications
General
| product brand name | SIRIUS |
| product category | Miscellaneous accessories |
| product designation | Device plug |
| product type designation | 3SY3 |
General technical data
| degree of pollution | 3 |
| overvoltage category | 2 |
| surge voltage resistance rated value | 800 V |
| protection class IP | IP67 |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead CAS-No. 7439-92-1 |
| Net Weight | 0.009 g |
| number of poles | 5 |
| operating voltage rated value maximum | 60 V |
| operational current at 40 °C rated value | 4 A |
| material of the contact | CuZn |
| material of contact coating | Au |
Ambient conditions
| ambient temperature during operation | -40 ... +85 °C |
Connections/ Terminals
| type of electrical connection | connector M12 |
| type of connectable conductor cross-sections | 5x 0.25 mm² / AWG24 |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SY3128: frequently asked questions
When can 3SY3128 be shipped?
3SY3128 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SY3128 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SY3128 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SY3128, subject to availability and destination.
