Siemens 3SX5601-3SB54

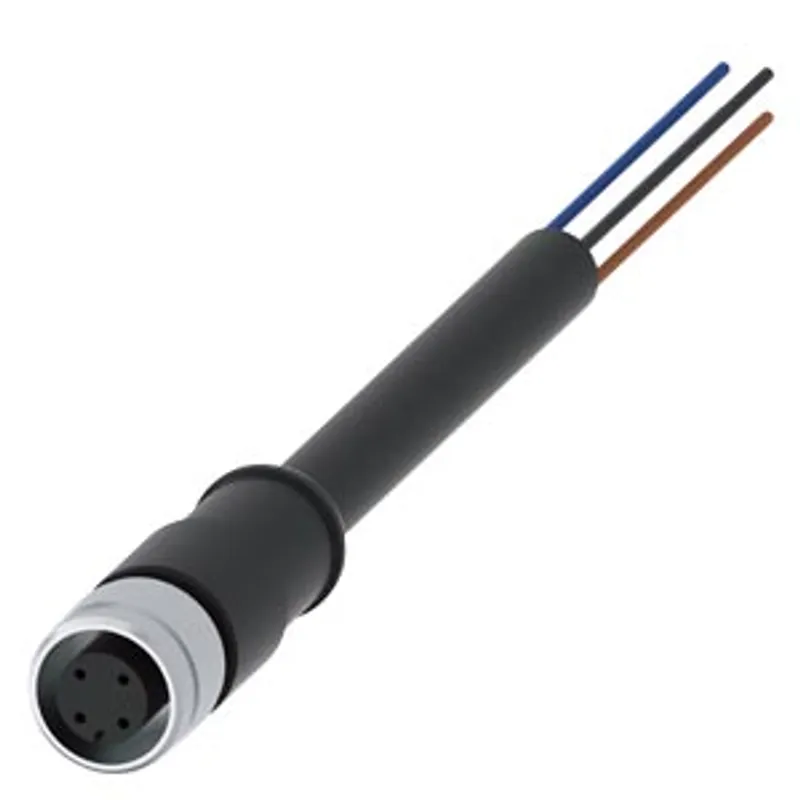

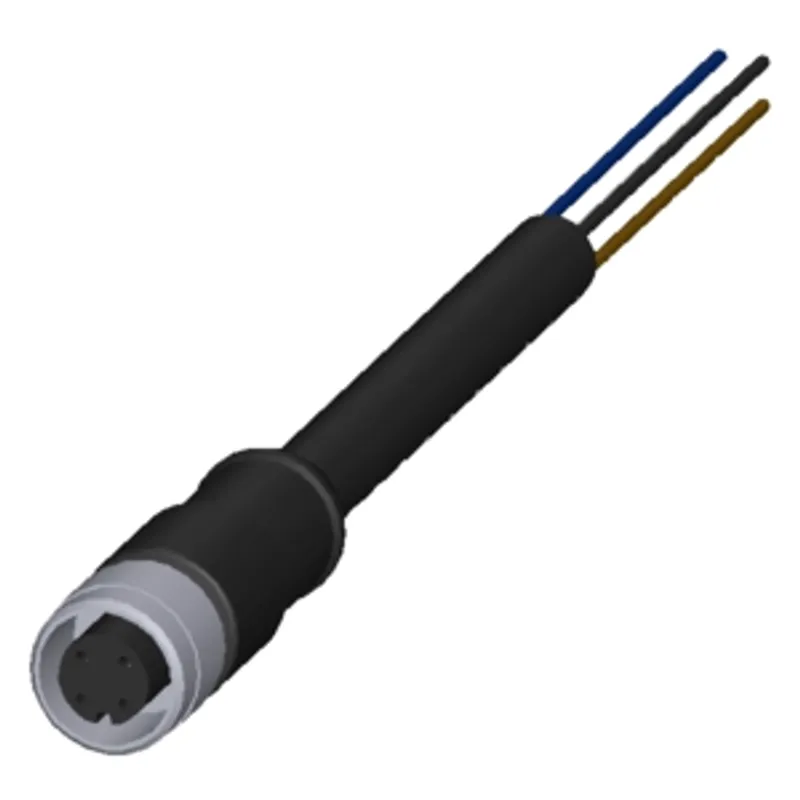

Connection cable with M12 socket 4-pole, straight and free cable end 5 m long
- MPN
- 3SX5601-3SB54
- Category
- Accessories and spare parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SX5601-3SB54?
Connection cable with M12 socket 4-pole, straight and free cable end 5 m long. For connection for position switch 3SE52, round magnetic switch 3SE66 or 8WD46 with 4-pole M12 plug.
Specifications
General technical data
| product brand name | SIRIUS |
| operational current at 40 °C rated value | 4 A |
| operating voltage rated value | 250 V |
| number of poles | 4 |
| insulation resistance | 100 MΩ |

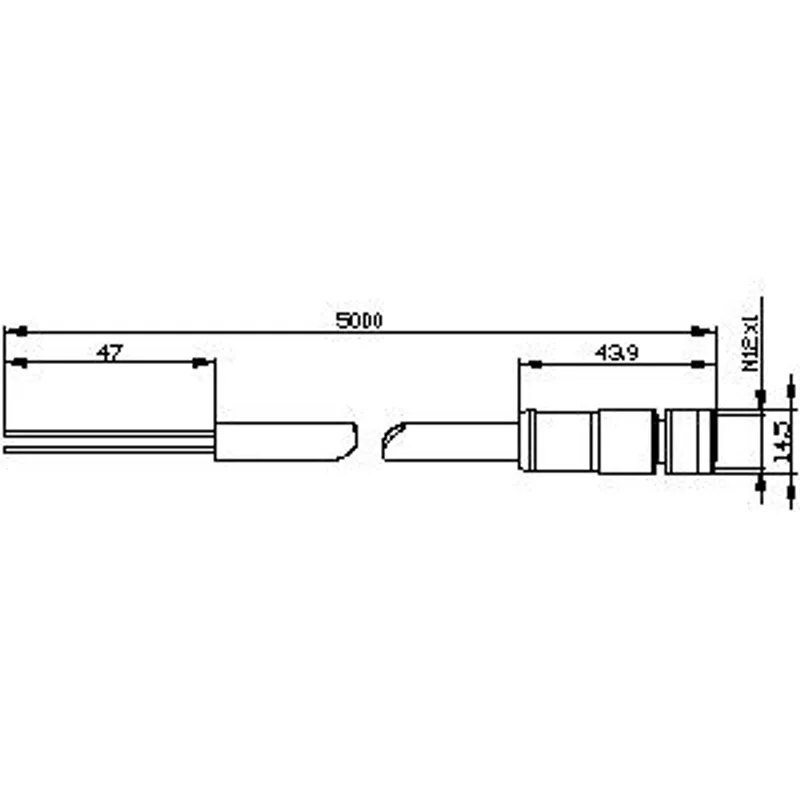

| wire length of connection cable | 5 m |
| ambient temperature during operation | -25 ... +85 °C |
| connector coding of the M12 circular connector | A - Standard |
| type of electrical connection | connector M12 |

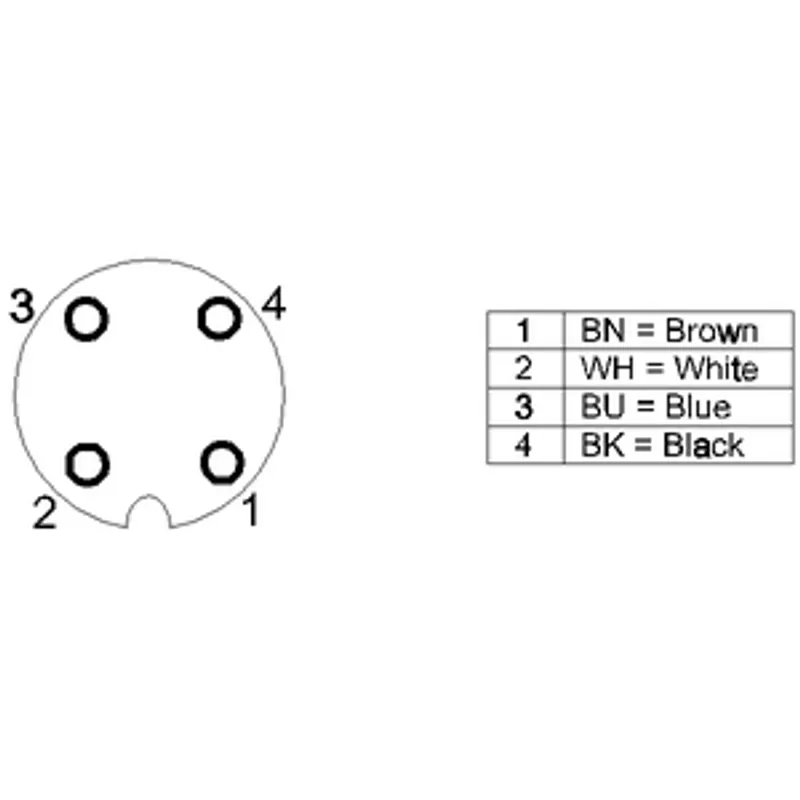

| color coding of the core | Pin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK |
| overvoltage category | 2 |
| degree of pollution | 3 |
| protection class IP | IP67 |
| material — of the contact | CuSn |
| material — of contact coating | Au |
| material — of contact main body | PUR |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SX5601-3SB54: frequently asked questions
When can 3SX5601-3SB54 be shipped?
3SX5601-3SB54 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SX5601-3SB54 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SX5601-3SB54 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SX5601-3SB54, subject to availability and destination.
