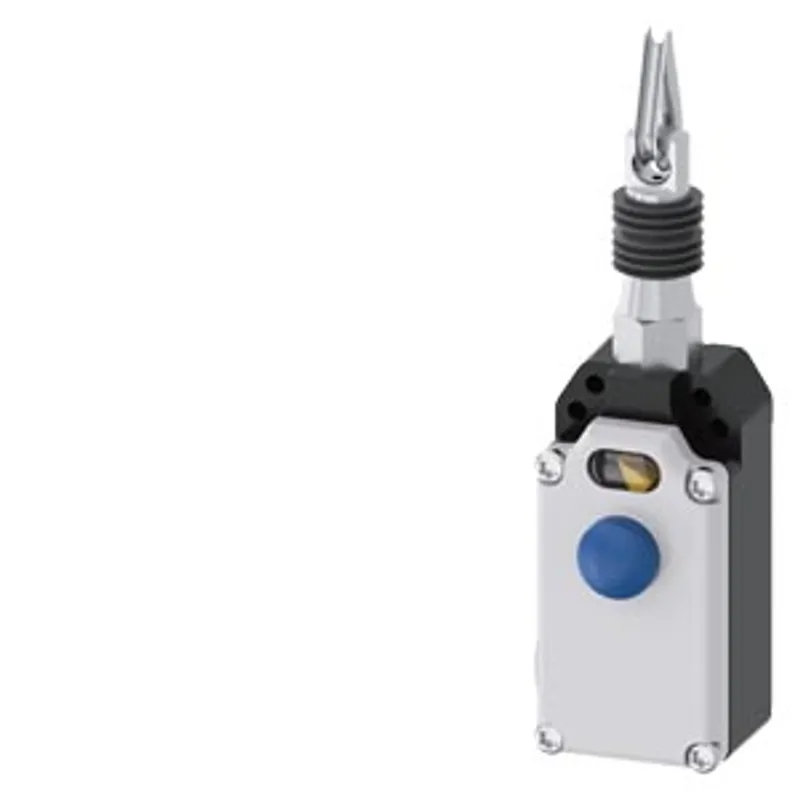

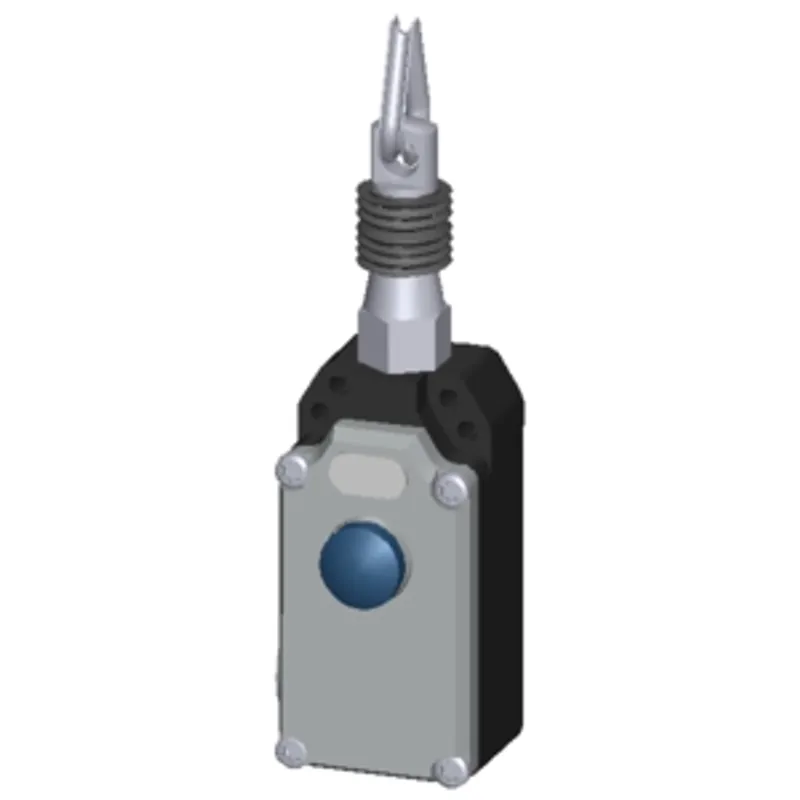

Siemens 3SE7150-1BF00
Cable-operated switch metal enclosure, 2 xM20 x1.5; 2 NC
- MPN
- 3SE7150-1BF00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE7150-1BF00?
cable-operated switch metal enclosure, 2 xM20 x1.5; 2 NC, with latching according to EN ISO 13850 and button reset, for wire lengths up to 20 m
Specifications
General
| product brand name | SIRIUS |
| product designation | cable-operated switch |
| product type designation | 3SE7 |
General technical data
| product function EMERGENCY STOP function | Yes |
| product component light source | No |
| insulation voltage rated value | 400 V |
| degree of pollution | class 3 |
| surge voltage resistance rated value | 6 kV |
| protection class IP | IP65 |
| mechanical service life (operating cycles) typical | 100 000 |
| thermal current | 6 A |
| reference code according to IEC 81346-2 | S |
| continuous current of the DIAZED fuse link gG | 6 A |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 426.54 g |
Ambient conditions
| ambient temperature during operation | -25 ... +70 °C |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 0 |
| operational current at AC-15 — at 240 V rated value | 6 A |
| operational current at AC-15 — at 400 V rated value | 6 A |
| operational current at DC-13 — at 24 V rated value | 3 A |
| operational current at DC-13 — at 250 V rated value | 0.27 A |
Enclosure
| material of the enclosure | metal |
| material of the enclosure cover | Plastic |
| product component EMERGENCY STOP device | No |
| color — of the enclosure | black |
| color — of the enclosure top part | grey |
| coating of the enclosure | painted |
Display
| product function status display | Yes |

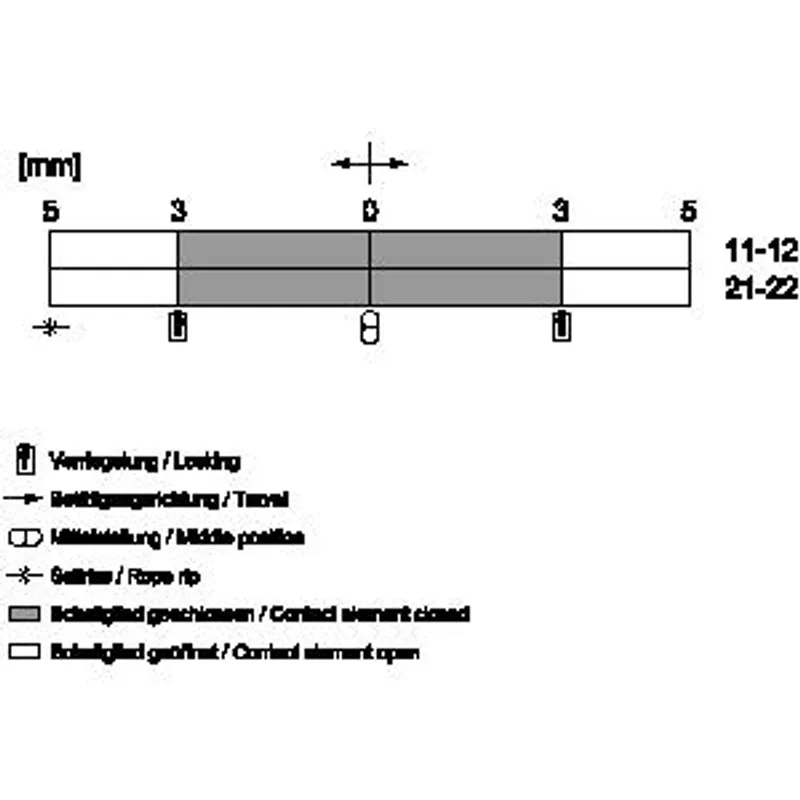

| circuit principle | Jump function |
| material of the contact | Silver |
| number of switching contacts safety-related | 2 |
| cable entry type | 2x M20 x 1,5 |

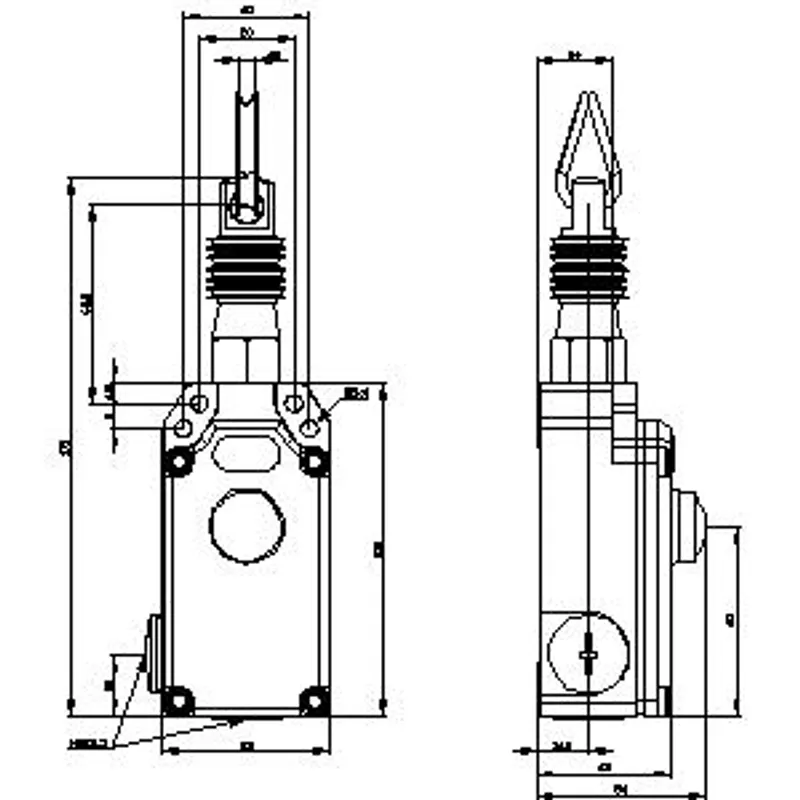

Installation/ mounting/ dimensions
| fastening method | screw fixing |
| height | 171 mm |
| width | 52 mm |
| depth | 54 mm |
Connections/ Terminals
| type of electrical connection | screw terminal |
| type of connectable conductor cross-sections — solid | 2x (0.5 ... 2.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 2x (0.5 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 2x (20 ... 14) |
| type of connectable conductor cross-sections — for AWG cables stranded | 2x (20 ... 14) |
Safety related data
| proportion of dangerous failures with high demand rate according to SN 31920 | 50 % |
| B10 value with high demand rate according to SN 31920 | 100 000 |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SE7150-1BF00: frequently asked questions
When can 3SE7150-1BF00 be shipped?
3SE7150-1BF00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SE7150-1BF00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SE7150-1BF00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SE7150-1BF00, subject to availability and destination.
